JUKI MO-2500 - Tension of the Belt

–
50
–
Standard adjustment
* The motor comes in three di󰀨erent types according to the destination. They are
di󰀨erent in the screw locations, etc. However, the standard adjustment value is
same.

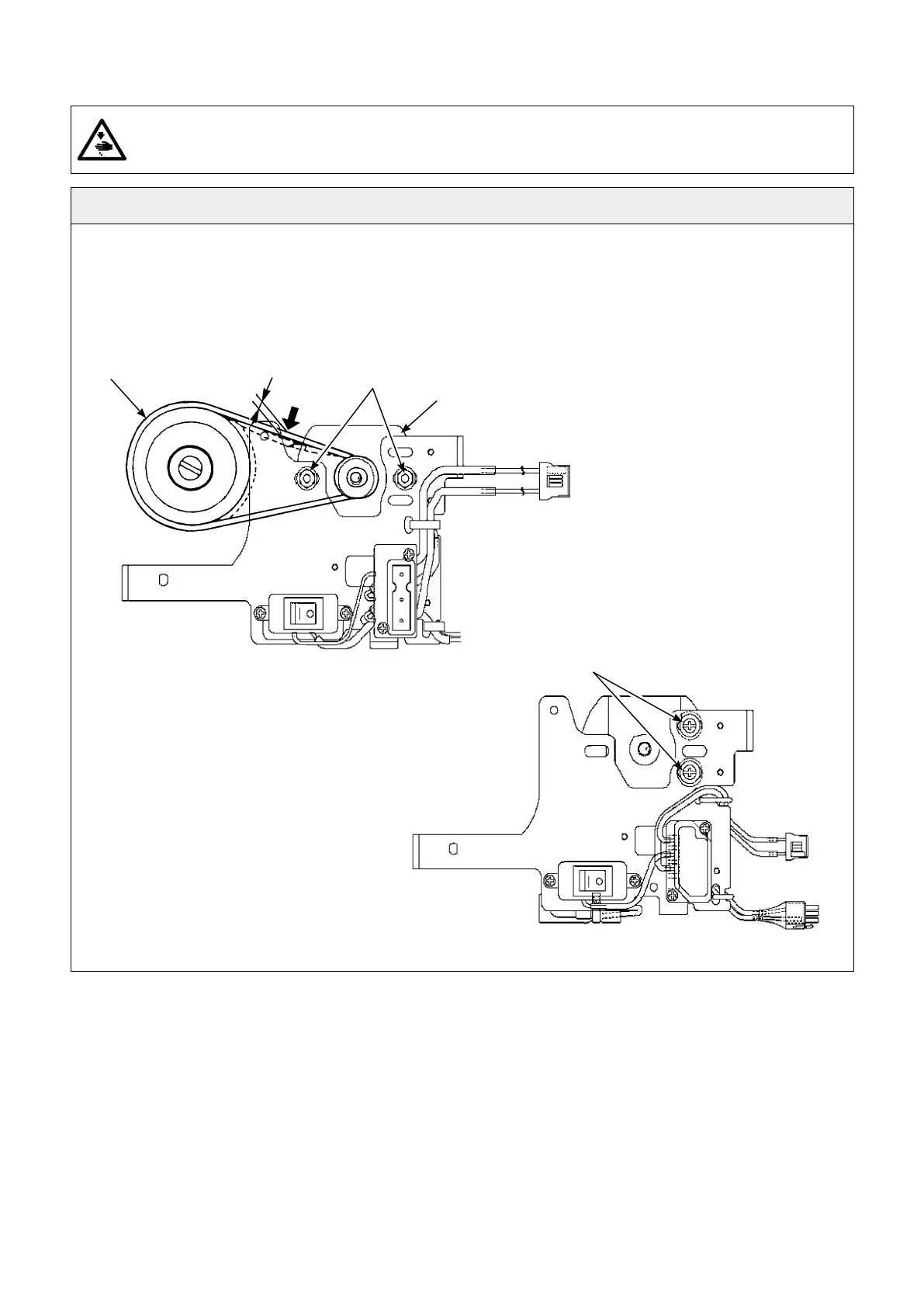

28. Tension of the belt
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power o󰀨 and ascertaining that the motor is at rest.
❶
2.5 to 5 mm
(A)
❸
❷
1.96N
(200g)
100/120 V type
220 - 240 V type
❸
