. SPECIFICATIONS
@
. SET-UP
SC-910N control box can be used for DD (direct-drive) system machine head and the belt-drive system
machine head by connecting the separately-available small-sized motor unit (M91).
When using the small-sized motor unit, it is necessary to install the motor unit to the control box before in-
stalling the control box to the table.
Install the motor unit to the control box following the instructions below.
SC-910N control box
M91 small-sized motor unit (separately-available article)

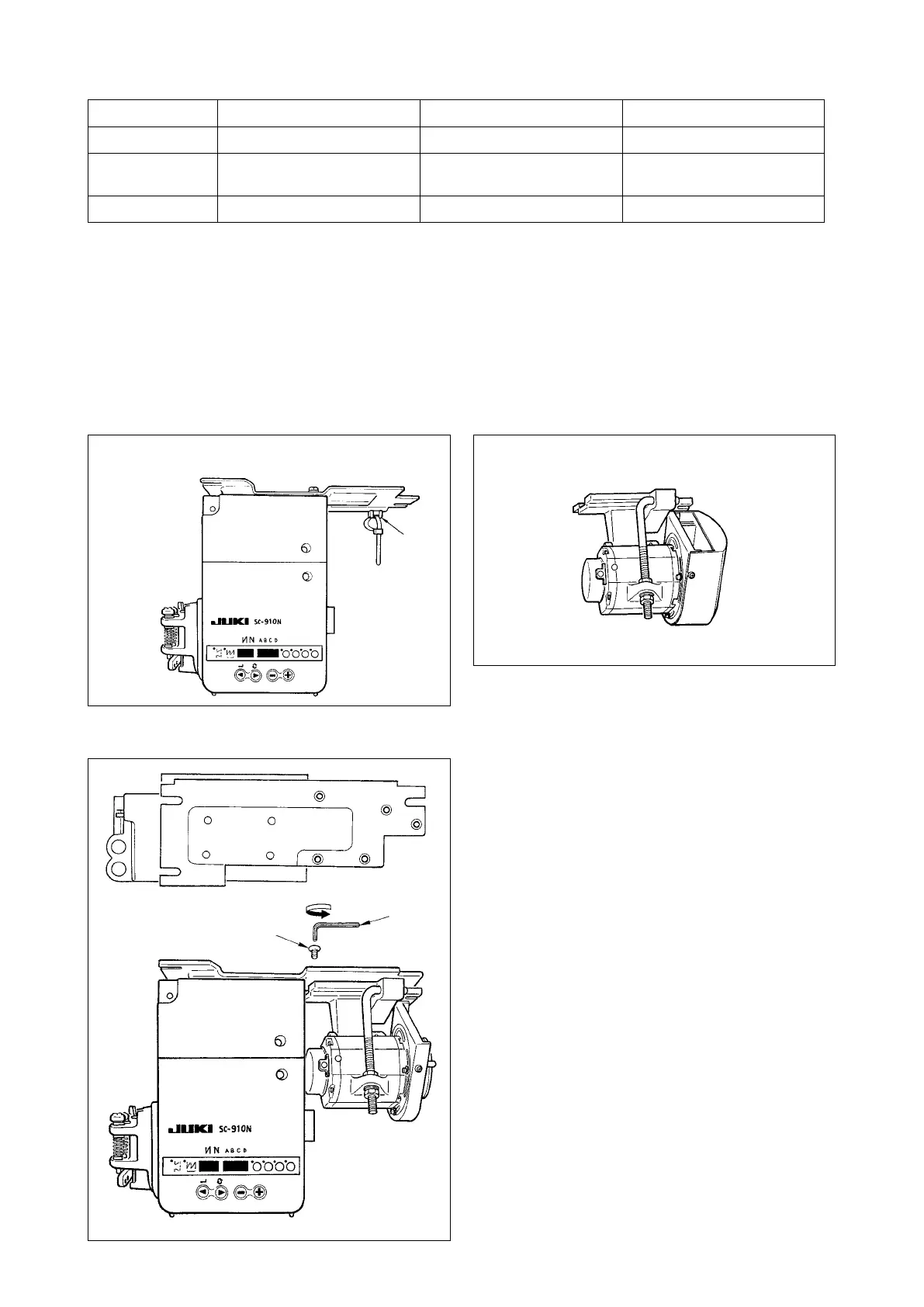

1. Installing M91 small sized motor unit
1) Lay down the control box while the rear cover is
placed under the control box.
2) Remove tie-mount
A
.
3) Adjust the hole section of the installing base of
M91 to the hole section of the installing plate.
4) Temporarily tighten ve places with counter-sunk
screws
1
supplied with the unit as accessories.
5) Securely tighten them with hexagonal wrench
key
2
supplied with the unit as accessories.
(Caution) 1. When tightening the screw, se-
curely insert the hexagonal wrench
key into the screw hole section to
tighten.
2. Hexagonal wrench key is attached
to M91.
3. Be careful that the motor shaft does
not hit against anything. (If a strong
shock is given to the motor shaft,
there is the possibility that the mo-
tor is damaged.)
Supply voltage Single phase 100 to 120V 3-phase 200 to 240V Single phase 200 to 240V
Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Operating envi-
ronment
Temperature : 0 to 40˚C
Humidity : 90% or less
Temperature : 0 to 40˚C
Humidity : 90% or less
Temperature : 0 to 40˚C
Humidity : 90% or less
Input 350VA 350VA 350VA
1
2
A
To Next Page
