Preparations for operating the device
The circulator must be mounted vertically and secured against
rotation. If necessary, secure the nuts of the rod also.

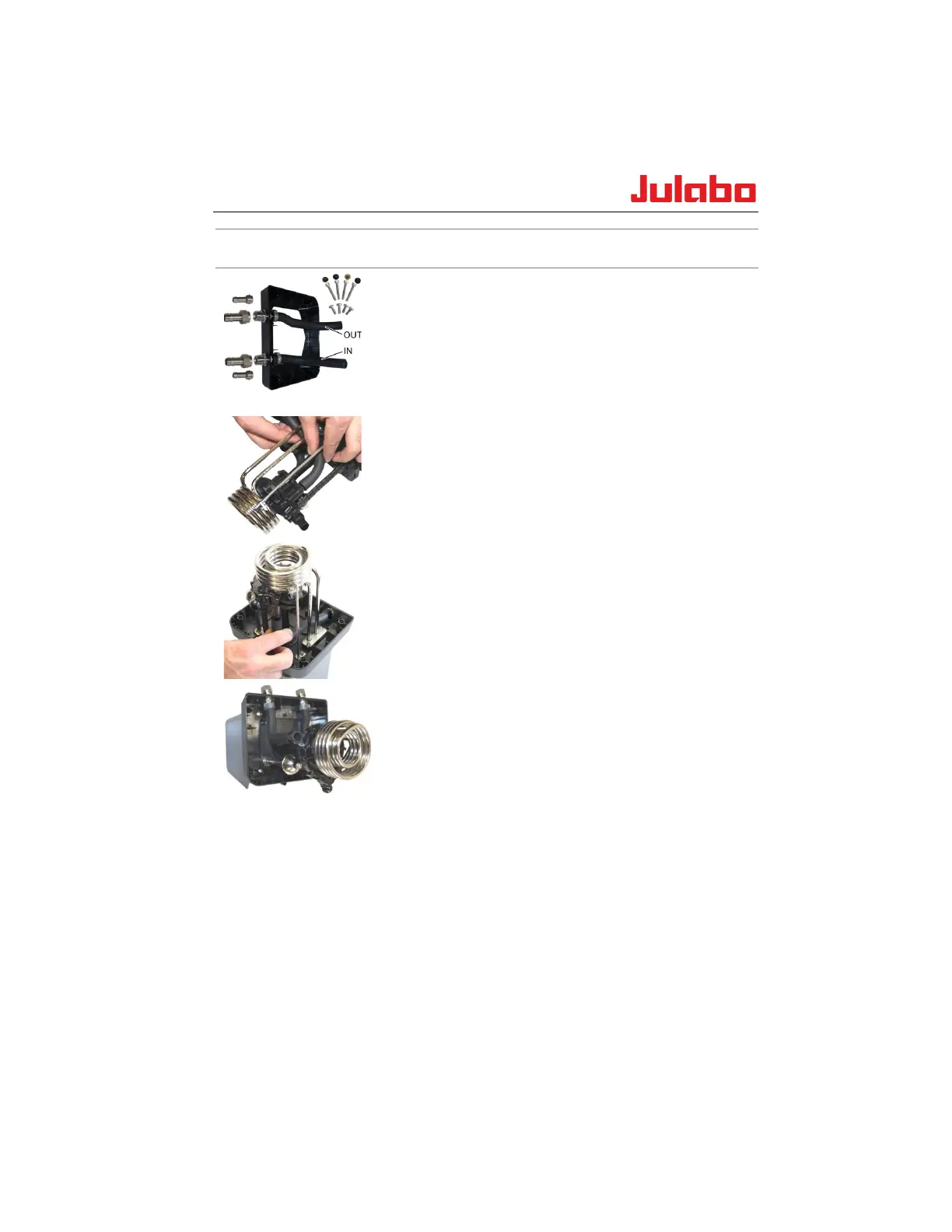

Bracket, order No. 9970177
Installation on the circulator
• Slide the bracket over the heater and pump on to the circulator
• Push the end of the tubing on the "OUT" side on to the outlet
port on the pump.
• Secure against slipping using the clamp.
• Push the end of the tubing on the "IN" side into the holding
device on the pump.
• Secure the bracket housing to the base of the circulator using
the four screws.
Connect an external system
• Remove the union nuts and sealing plates from the pump
connectors.
• The tubing connections can be used for hoses with M16x1
connections in this state.
Or:
• Secure barbed fittings to the union nuts.
• Connect tempering hoses and secure them with tube clamps to
prevent them sliding off.
• Connect the tubing for the supply and return to the pump
connectors and the external consumer and secure them with
tube clamps.
• Switch the pump function to external circulation.
