Preparations for operating the device

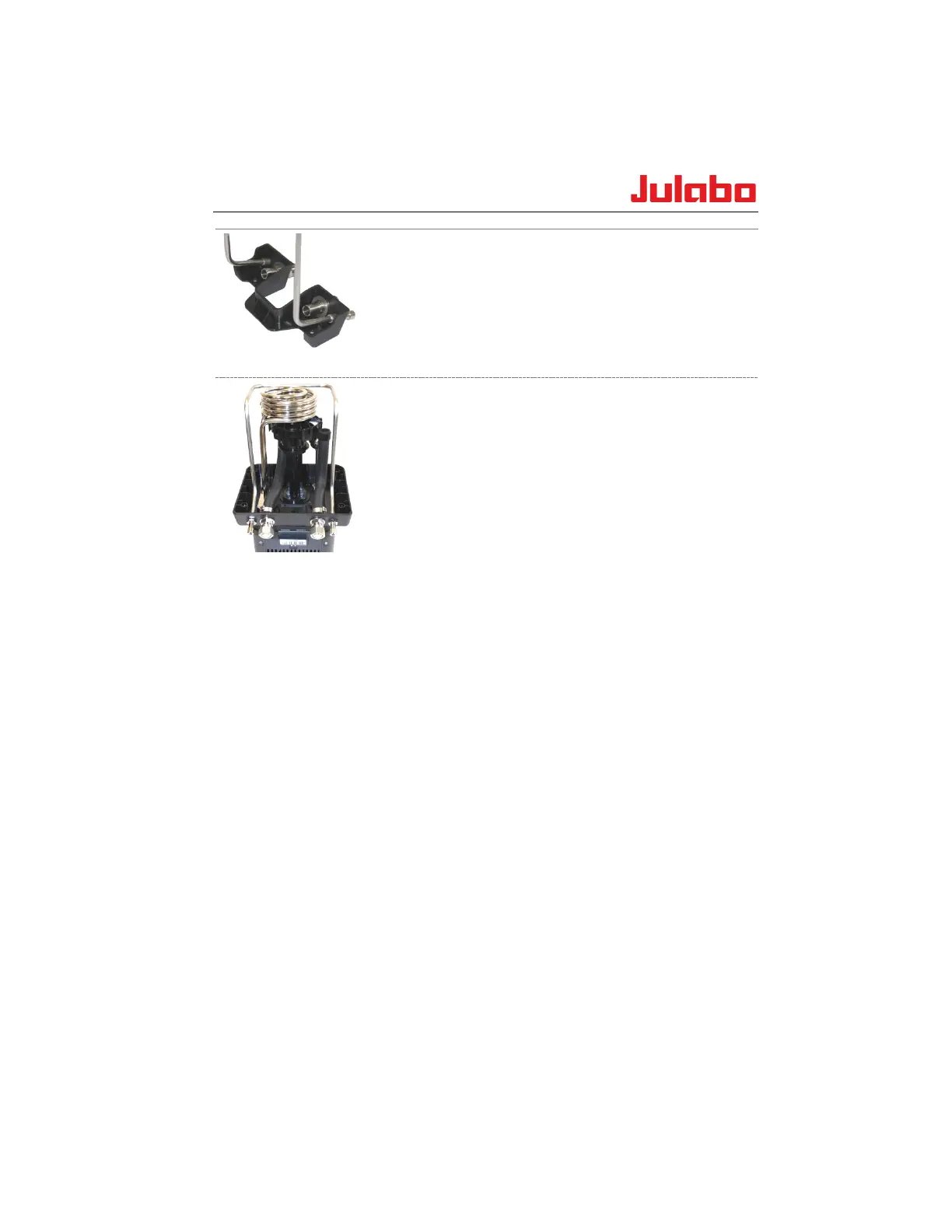

Install the cooling coil on the pump set
• Remove the caps from the pump set.
• Insert the ends of the cooling coil through the fastening
boreholes and secure them with the washers and hex nuts.
• Install the connection ports to the cooling coil.
• Slide the cooling water hoses over the connection ports and
prevent slipping.
Bracket with cooling coil, order No. 9970176
Install the cooling coil on the bracket
• Remove the caps from the bracket.
• Slide the ends of the cooling coil through the fastening
boreholes.
• Secure them with the washers and hex nuts.
• Install the connection ports to the cooling coil.
• Slide the cooling water tubing over the connection ports and
prevent slipping.
