JUMO cTRON 08 - Installation

13
2 Installation
2.3 Installation
Type 702071

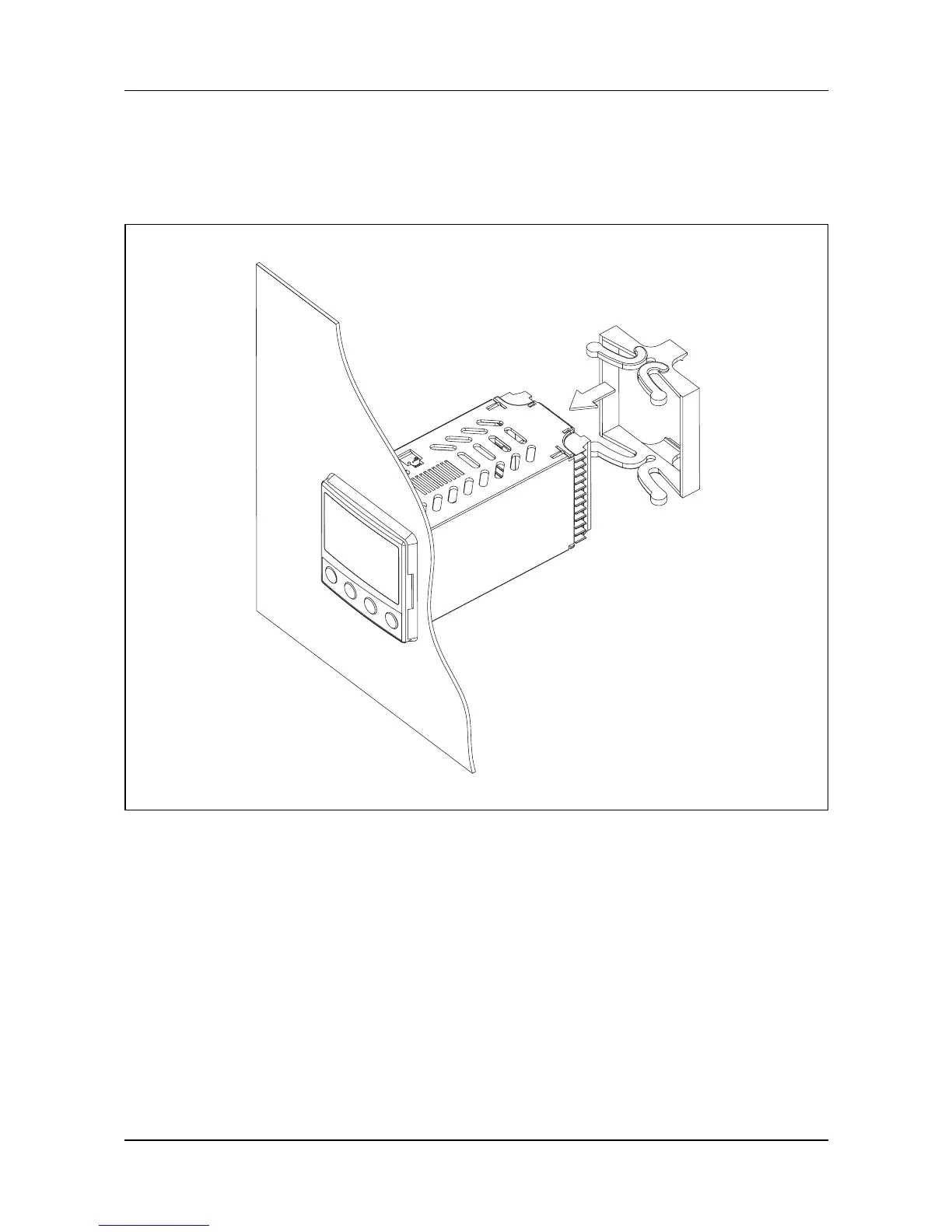

1. Insert the device from the front into the panel cut-out.
2. Push the fastening frame from the panel rear onto the device body
and press the springs against the panel rear until the lugs engage
in their slots and it is sufficiently fastened.
