3 Displays and controls

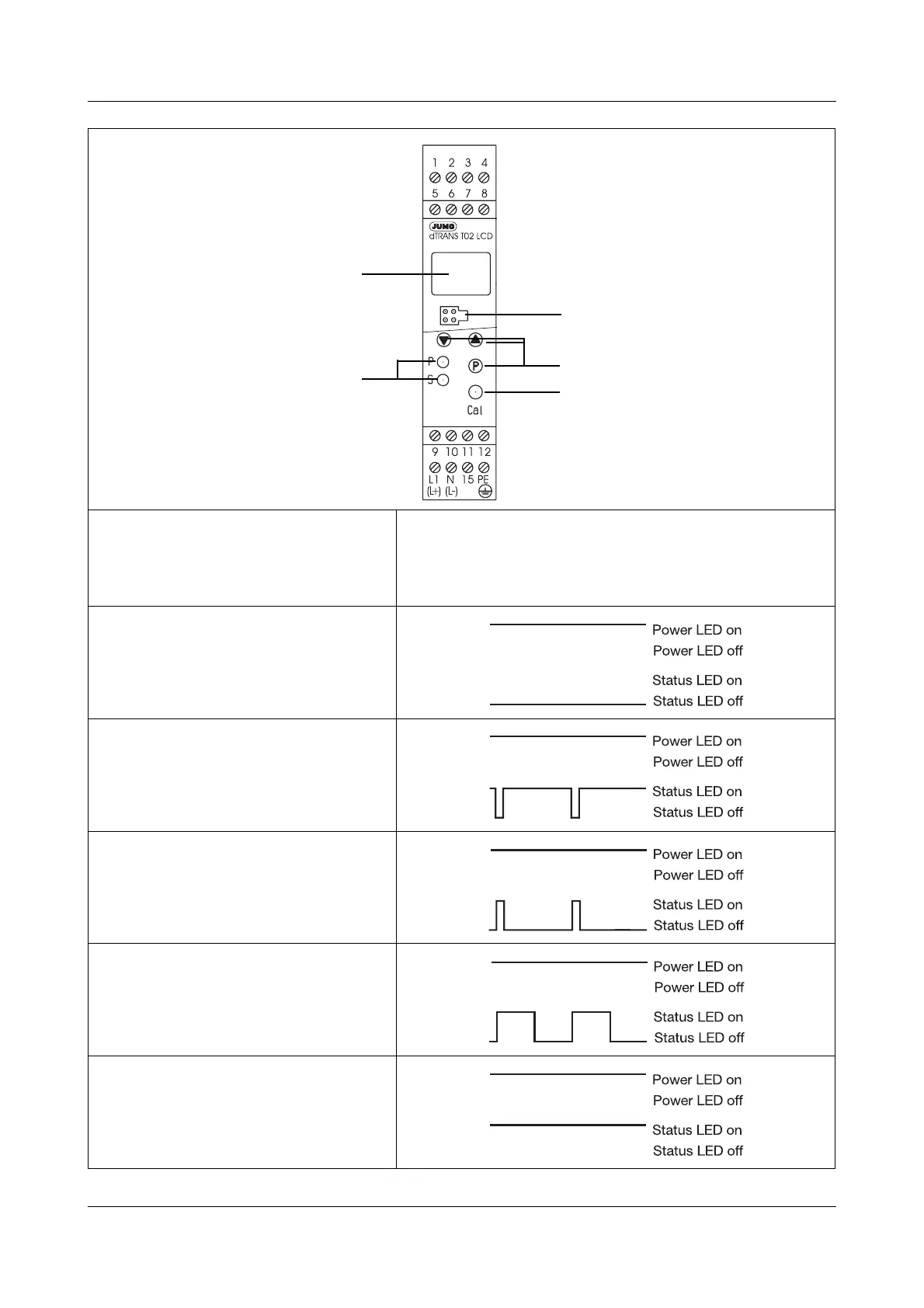

Operational status at the
operating level
(normal operation)
Illumination/blink behavior
Limit comparator
1 inactive
2 inactive
Limit comparator
1 active
2 inactive
Limit comparator
1 inactive
2 active
Limit comparator
1 active
2 active
Overrange
buttons for operation
LCD display
interface for
PC setup program
LEDs for operational status
P = Power LED
S = Status LED
without significance,
for internal purposes
only
