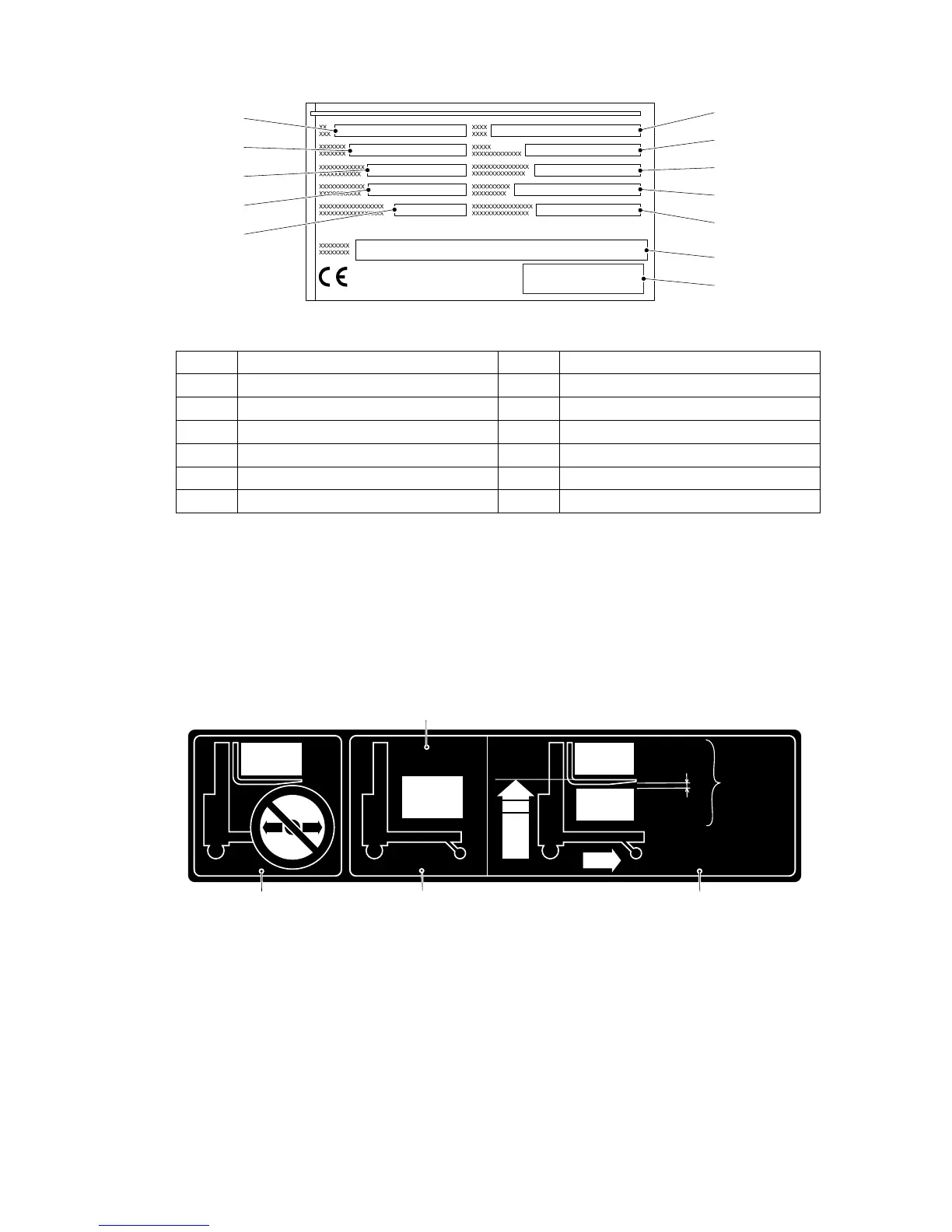

4.1 Truck data plate
Z
The load handler must be raised to check the data plate.
For queries regarding the truck or ordering spare parts please quote the truck serial
number (30).
4.2 Capacity
The capacity plate (20) indicates the capacity Q kg of the truck while travelling.
A = No transporting with a raised load
B = Capacity for horizontal transport max. 1,800 kg with a raised outriggers
without mast lift.
C = Double decker mode: Max. lift height 1,660 mm
Max. capacity for high level lifting as indicated by entry.
Max. capacity for high and low level lifting both max. 1,800 kg.
Item Description Item Description
29 Type 35 Manufacturer
30 Serial no. 36 Min./max. battery weight (kg)
31 Rated capacity (kg) 37 Output (kW)
32 Battery voltage V 38 Load centre of gravity (mm)
33 Net weight w.o. battery (kg) 39 Year of manufacture
34 Manufacturer’s logo 40 Option
