0205.GB

D 4

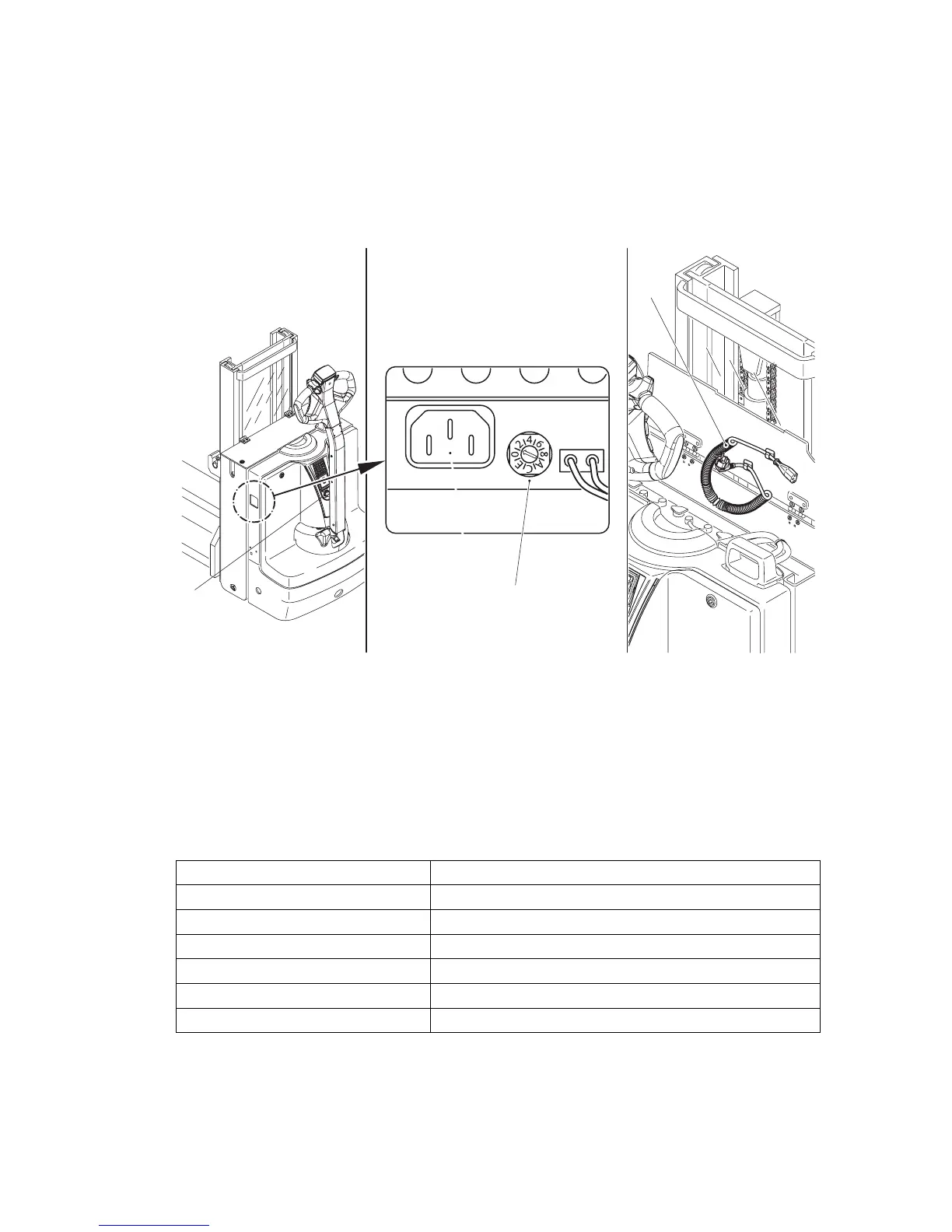

5.2 Charging the battery with an on-board charger o

The charger must not be opened. If damaged, it must be replaced.

The switch (6) contains intermediate positions between setting positions “1” to “6” for

safety reasons.

When the truck is delivered without a battery, it is supplied with a factory-set

intermediate position. The red LED (5) flashes to indicate the battery cannot be

charged.

Selecting the charging curve for the onboard charger

Use the switch (6) on the charger to adapt the charge curves to the particular battery

used, in accordance with the following table.

Before setting the appropriate curve, disconnect the mains plug.

If a battery is connected, a new setting must be acknowledged via the LEDs (see

display) and becomes immediately effective.

Switch (6) Position Selected charge curves (characteristics)

1 Wet cell batteries: 100 - 300 Ah

2 Maintenance-free: 100 -150 Ah

3 Maintenance-free: 150 -200 Ah

4 Maintenance-free: 200 - 300 Ah

5Free

6Free
