3 Operating and Display Equipment

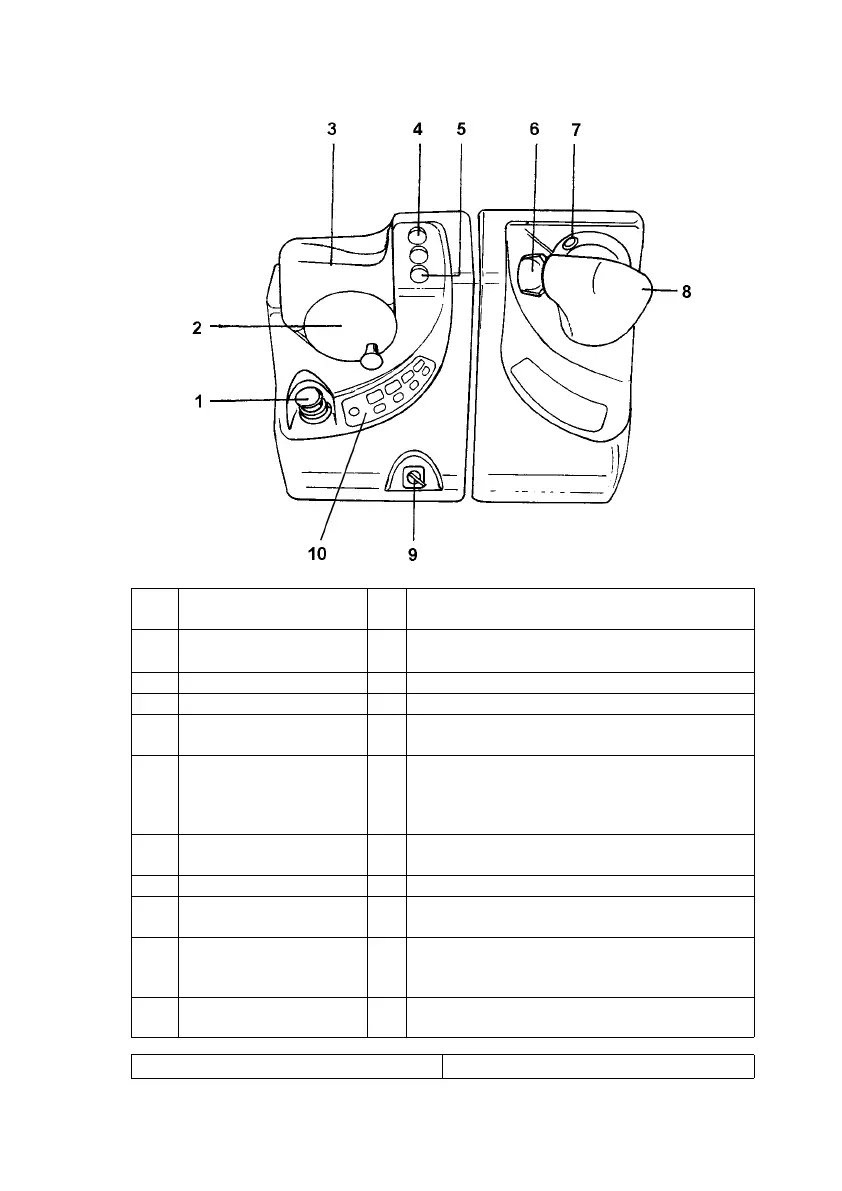

3.1 Operating and display equipment on control panel
Item Operating / Display
Equipment
Function
1 EMERGENCY
DISCONNECT switch
t Interrupts the main supply, all truck
movements are disabled
2 Steering wheel t Steers the truck in the required direction.
3 Support handle t Two-hand operation
4 “Lift cutout override”
switch
o Automatic lift cutout is deactivated.
5 Guidance On „switch“ RG
WG
Sets the drive wheel to straight ahead position
Activates the aligning process (and frequency
selection for multi-frequencies)
6 Travel selection switch t Controls the travel direction and speed of the
truck
7 “Warning” switch t Activates a warning.
8 Hydraulic control switch t Raising and lowering of Main and Aux. lift,
reach and swivel of load forks
9 Keyswitch t Switches control voltage on and off. Removing
the key prevents the truck from being switched
on by unauthorised personnel.
10 Optional
function keys
t Activates or confirms the function related to
the symbol displayed above it
t = Standard equipment o = Optional Equipment
