Jungheinrich EKS 310 User Manual

E 5
0206.GB

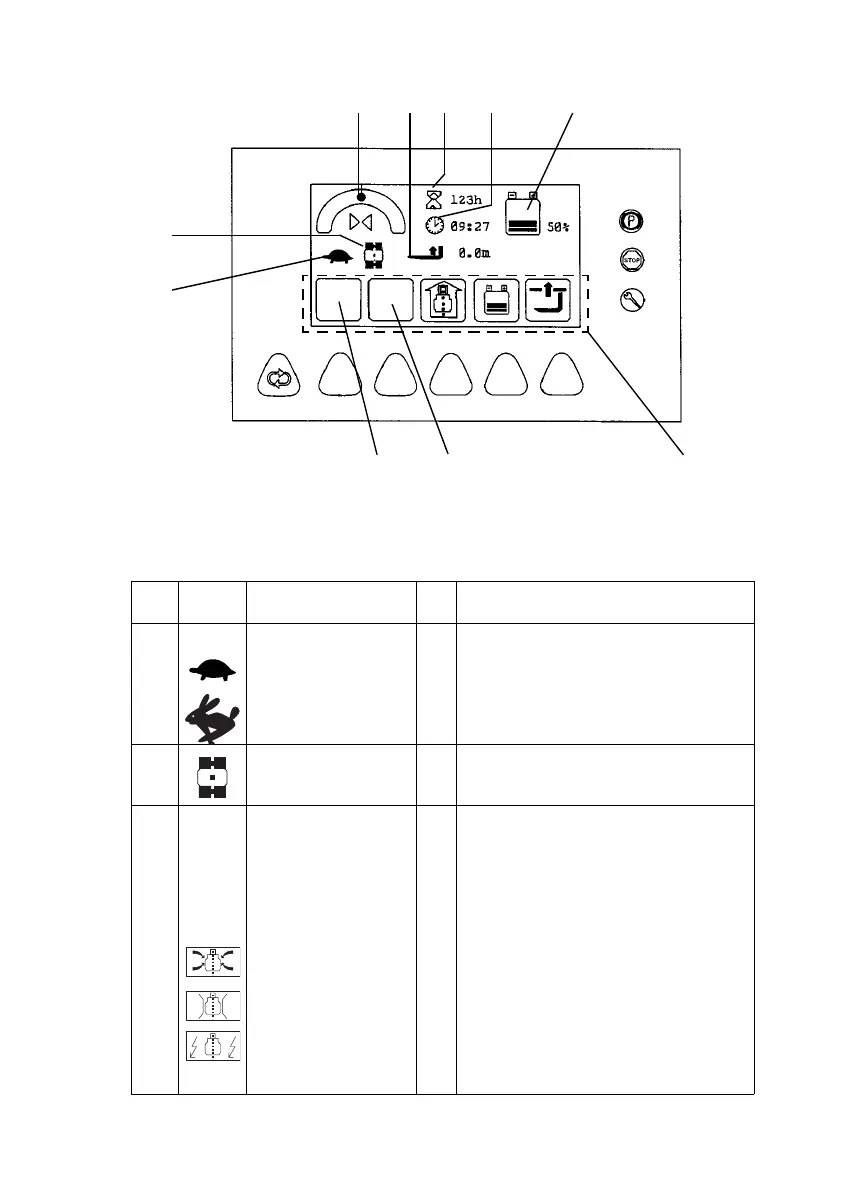

3.2 Display unit controls and displays
Upper range symbols
Item Symbol Operating / Display
Equipment
Function
11 Displays possible
travel speeds:
Turtle
Rabbit
t
Creep mode
Max. travel speed
12 “Guidance wire
recognition” display
WG Sensors which have detected the
guidance wire have a dark background
13 Steering angle display
changes with display
– “Tracking in
progress ”
– “Guidance wire led”
– “Deviation from
guidance wire”
t
RG
WG
WG
WG
WG
Indicates the current steering angle with
reference to the centre position
Centre position is permanently
displayed once the truck is in the track
The steering angle display fades and is
replaced by guidance wire symbols
– when the truck is governed by the
guidance wire (inductive guidance)
– when the truck is automatically
guided by the guidance wire
– when the truck deviates without
guidance from the guidance wire and
automatic guidance
11
12
13 14 15 16 17
18
1920
E 5
0206.GB
3.2 Display unit controls and displays
Upper range symbols
Item Symbol Operating / Display
Equipment
Function
11 Displays possible
travel speeds:
Turtle
Rabbit
t
Creep mode
Max. travel speed
12 “Guidance wire
recognition” display
WG Sensors which have detected the
guidance wire have a dark background
13 Steering angle display
changes with display
– “Tracking in
progress ”
– “Guidance wire led”
– “Deviation from
guidance wire”
t
RG
WG
WG
WG
WG
Indicates the current steering angle with
reference to the centre position
Centre position is permanently
displayed once the truck is in the track
The steering angle display fades and is
replaced by guidance wire symbols
– when the truck is governed by the
guidance wire (inductive guidance)
– when the truck is automatically
guided by the guidance wire
– when the truck deviates without
guidance from the guidance wire and
automatic guidance
11
12
13 14 15 16 17
18
1920
