6.9 Recovering the truck from a narrow aisle / Moving the truck without a battery
F
Before recovering the truck from a narrow aisle, disconnect the battery.
M
This operation can only be performed by a specialist service engineer specially
trained in operating the truck.
When the brakes are de-activated the truck must be parked on an even ground as the
brakes are no longer effective.
– Fully lower the mast
Z
Obtain the help of another person. The other person must be trained and familiar with
recovery operations.
To recover the truck from the aisle, release the brakes.
Release the magnetic brake
– Remove the electronic compartment cover at the back.

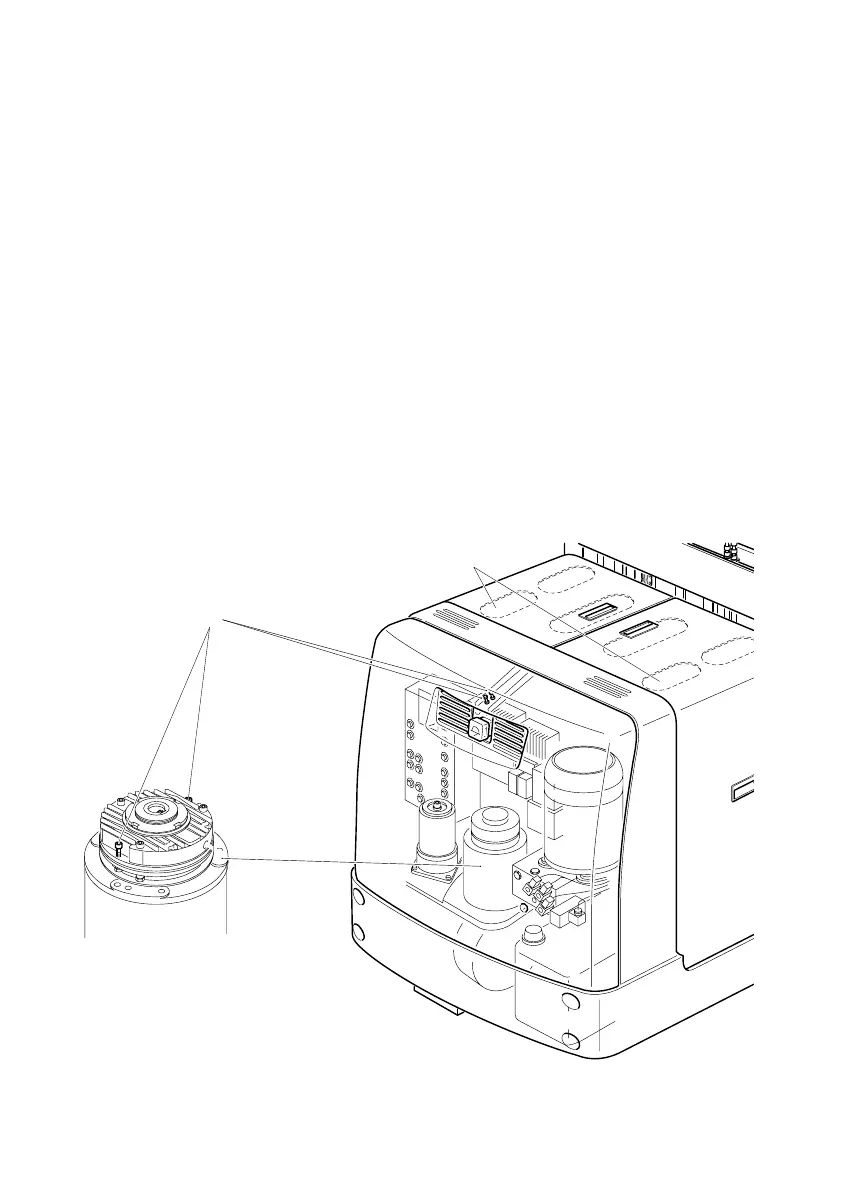

– Screw in the setscrews (41) on the magnetic brake above the traction motor to
release it.
– Attach the tow rope to the service openings (40) and carefully pull the truck out of
the narrow aisle.
– When bring the truck back into operation:
Check the brake retardation value.
41
40
