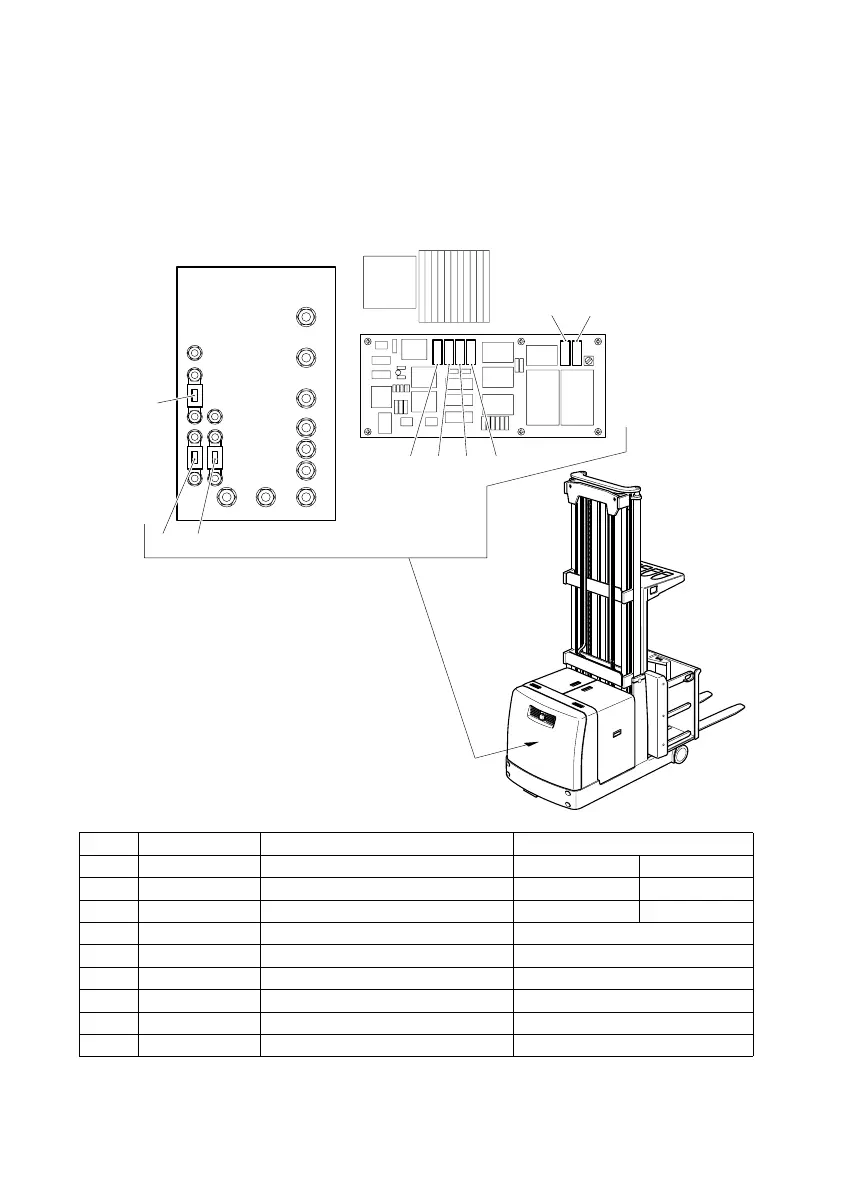

5.10 Checking electrical fuses
F
Electric fuses must only be checked and replaced by authorized personnel.
– Prepare the truck for maintenance and repairs
(see Chapter F).
– Check all fuse ratings in accordance with the table; replace if necessary.
F
Only use the rating indicated on the controller. DIN and EN standardised fuses must
not be used for UL standardised fuses. The opposite also applies.
Item Description To protect: Rating
10 1F11 Travel 160A (DIN, EN) 250A (UL)
11 3F10 Steering 35A (DIN, EN) 35A (UL)
12 2F15 Hydraulics 250A (DIN, EN) 400A (UL)
13 F2.1 DC/DC converter U1 input 48 V 48V / 10A (UL)
14 5F1 Lighting and special equipment 48 V 48V / 10A (UL)
15 F3.1 DC/DC converter U1 output 24 V 24V / 10A (UL)
16 F1.2 DC/DC converter U16 input 48 V 48V / 4A (UL)
17 5F2 DC/DC converter U16 output 24 V 24V / 6,3A (UL)
18 1F3 Drive controller 1A (UL)
1011
12
13
14
18 17 16 15
