E 17
0206.GB

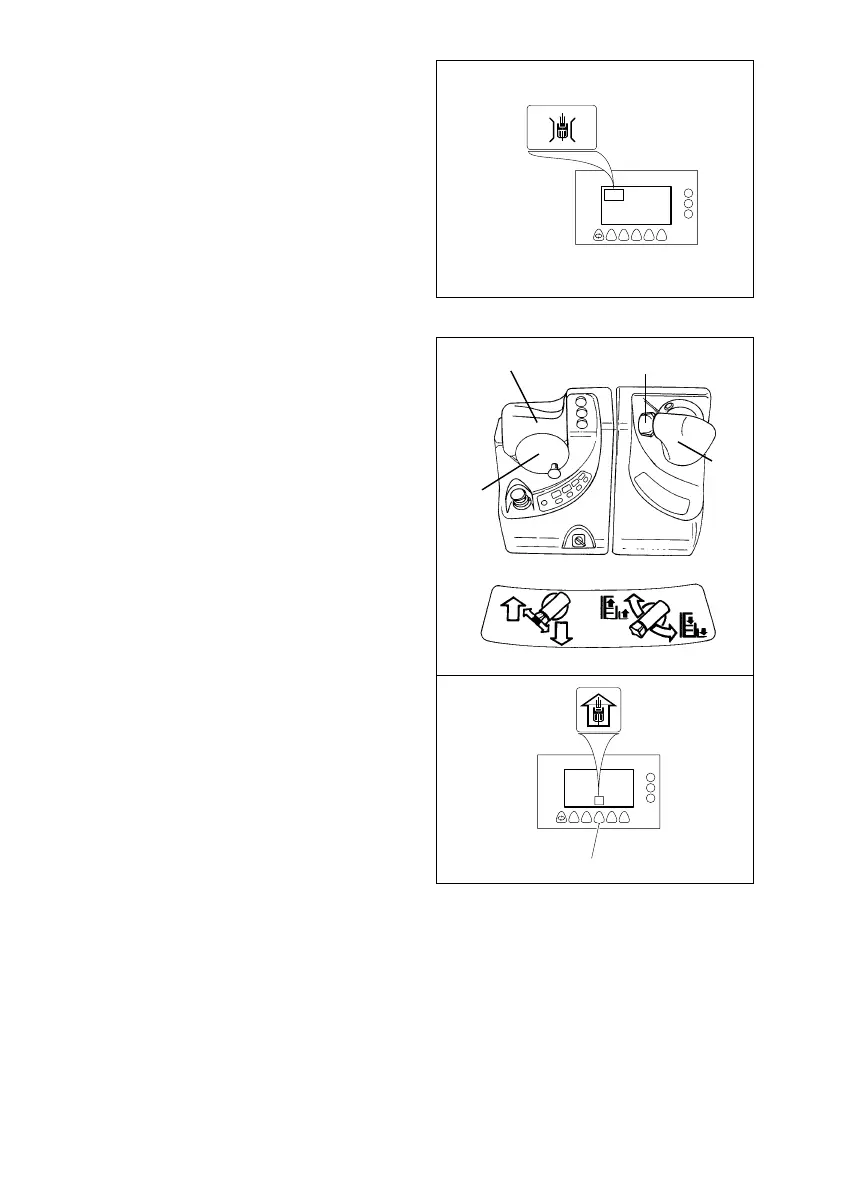

Inductive automatic steering takes over
the steering and applies it to the
guidance wire.
Tracking is completed once the truck
has been set to the guidance wire. The
display (28) changes to “guidance wire
applied”. The tracking signal is no longer
sounded. The track is now automatically
guided.
Z
Travel and hydraulic operations can only
be activated in the narrow aisle with two-
handed operation.
Hold onto the support handle (3) of the
“Steering” control panel module and the
hydraulic control switch (8). Turn the
travel selection switch (6) to change
travel speed and direction.
Diagonal travel
Diagonal travel is possible
(simultaneous travelling and lifting /
lowering) when both control switches (6
and 8) are pressed simultaneously).
Press the pressure switch (22) to quit the
guidance wire. The display (23) goes
out.
F
You can only change from automatic to
manual steering once the truck has fully
left the rack lane.
28
8
2
6
3
22
23
E 17
0206.GB
Inductive automatic steering takes over
the steering and applies it to the
guidance wire.
Tracking is completed once the truck
has been set to the guidance wire. The
display (28) changes to “guidance wire
applied”. The tracking signal is no longer
sounded. The track is now automatically
guided.
Z
Travel and hydraulic operations can only
be activated in the narrow aisle with two-
handed operation.
Hold onto the support handle (3) of the
“Steering” control panel module and the
hydraulic control switch (8). Turn the
travel selection switch (6) to change
travel speed and direction.
Diagonal travel
Diagonal travel is possible
(simultaneous travelling and lifting /
lowering) when both control switches (6
and 8) are pressed simultaneously).
Press the pressure switch (22) to quit the
guidance wire. The display (23) goes
out.
F
You can only change from automatic to
manual steering once the truck has fully
left the rack lane.
28
8
2
6
3
22
23
