Jungheinrich HC 110 User Manual

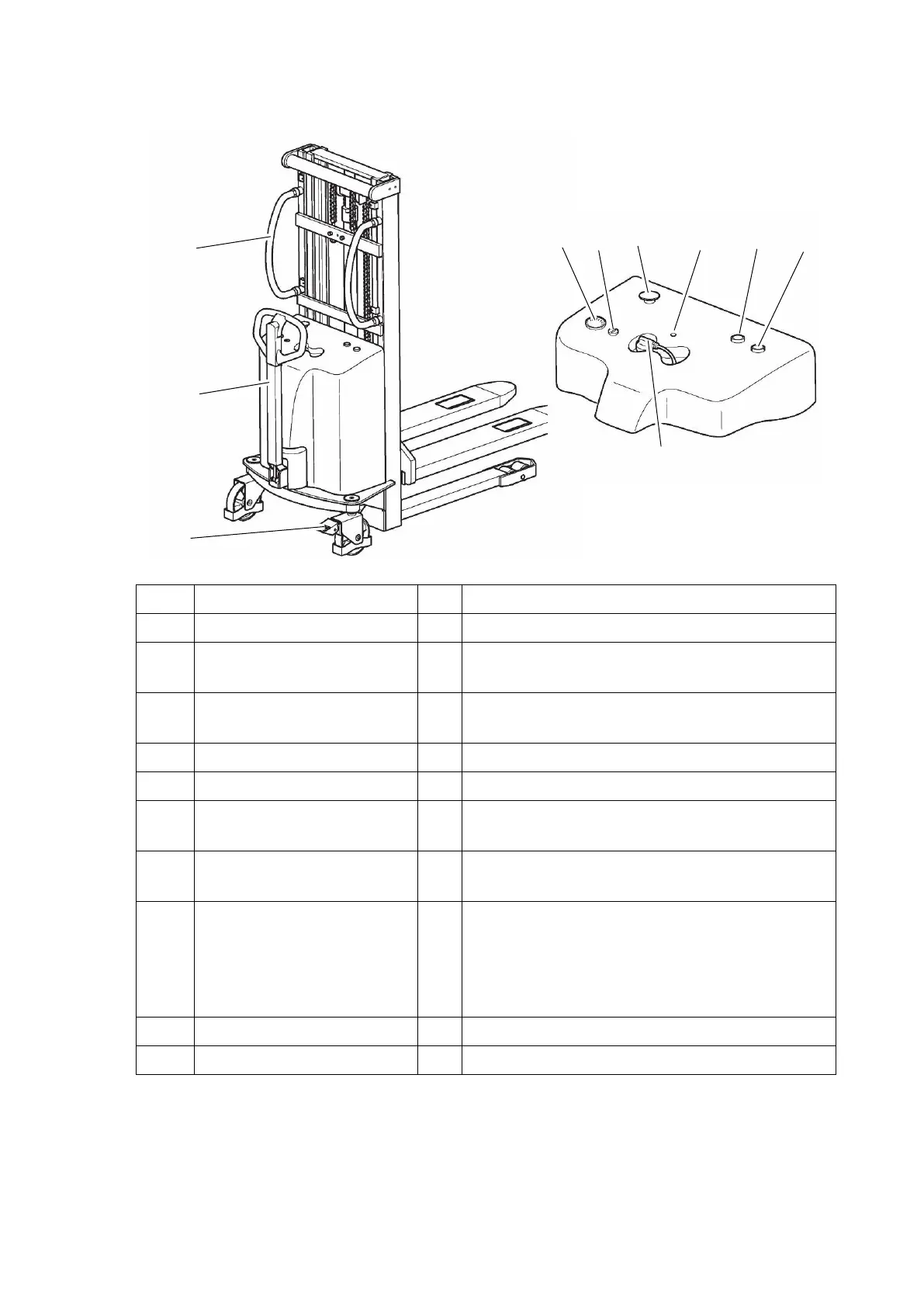

2 Displays and Controls
2
11
8
Item Control /Display Function
2 Push handle
t
– Move the truck forward/backward.
3 Emergency Disconnect
switch
t
Disconnects the battery supply
– All electrical functions are deactivated
8 Brake pedal (parking
brake)
t
– Prevent the truck from rolling away.
11 Tiller
t
– Steers the truck.
33 Charge display
t
– Battery charge status
34 On-board battery charger
connection
t
– Charges the battery by inserting the
mains connector into a mains socket.
36 Battery discharge
indicator
t
– Battery charge status.
37 Key switch and key
t
– Activates the truck by applying the
control voltage
– Removing the key prevents the truck
from being switched on by unauthorized
personnel.
38 “Lowering” button
t
– Lowers the lift mechanism.
39 “Lift” button
t
– Raises the lift mechanism.
36
37
3
34
33
38
39
35
