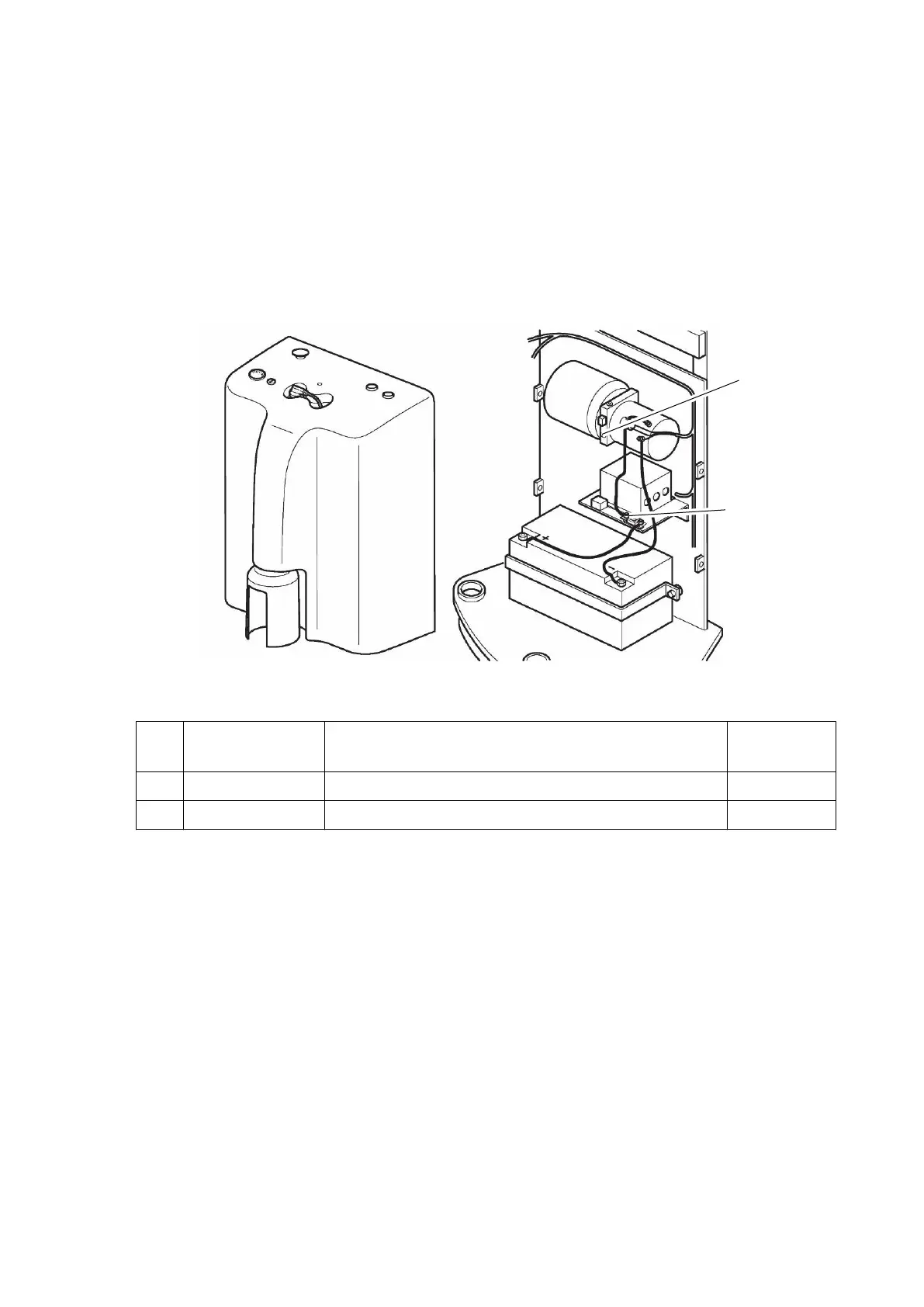

Checking electrical fuses
Check fuses
Requirements
–
T
ruck prepared for maintenance and repairs, see page 56.
–
Remove the front panel, see page 58.
Procedure
•
Check the fuse ratings against the table and replace if necessary
.
The fuses are now checked.
40
41
Ite
m
Component
T
o protect
Rating (A)
40
F1
Control fuse
6
41
2F1
Power fuse
200
59
04.16 en-GB
58
60
Table of Contents
Default Chapter
7
Table of Contents
7
A Correct Use and Application
9
General
9
Correct Application
9
Approved Application Conditions
9
Proprietor Responsibilities
10
Adding Attachments And/Or Optional Equipment
10
B Truck Description
11
Application
11
Truck Models and Rated Capacity
11
Assemblies and Functional Description
12
Assembly Overview
12
Functional Description
13
Technical Specifications
14
Performance Data
14
Dimensions
15
Weights
16
Tyre Type
16
EN Norms
17
Conditions of Use
17
Electrical Requirements
17
Identification Points and Data Plates
18
C Transport and Commissioning
21
Lifting by Crane
21
Transport
22
Using the Truck for the First Time
23
D Battery - Servicing, Recharging, Replacement
25
Safety Regulations Governing the Handling of Lead-Acid Batteries
25
Battery Types
27
Exposing the Battery
28
Charging the Battery
29
Battery Removal and Installation
31
E Operation
33
Safety Regulations for the Operation of Forklift Trucks
33
Displays and Controls
35
Battery Discharge Indicator
36
Starting up the Truck
37
Checks and Operations to be Performed before Starting Daily Work
37
Industrial Truck Operation
38
Safety Regulations for Truck Operation
38
Preparing the Truck for Operation
40
Parking the Truck Securely
41
Emergency Disconnect, Travel, Steering, Braking
42
Travel
43
Steering
43
Brakes
43
Lifting, Transporting and Depositing Loads
44
Troubleshooting
46
Load Cannot be Lifted
47
F Industrial Truck Maintenance
49
Operational Safety and Environmental Protection
49
Maintenance Safety Regulations
49
Lubricants and Lubrication Schedule
52
Handling Consumables Safely
52
Lubrication Schedule
54
Consumables
55
Maintenance and Repairs
56
Preparing the Truck for Maintenance and Repairs
56
Lifting and Jacking up the Truck Safely
57
Front Cover Disassembly
58
Installing the Front Panel
58
Checking Electrical Fuses
59
Restoring the Truck to Service after Maintenance and Repairs
60
Decommissioning the Industrial Truck
61
Prior to Decommissioning
62
During Decommissioning
62
Restoring the Truck to Service after Decommissioning
63
Safety Tests to be Performed at Intervals and after Unusual Incidents
64
Final De-Commissioning, Disposal
64
Maintenance and Inspection
65
Maintenance Contents HC 110
66
Owner
66
Customer Service
68
