Refer "EX4100 and EX4100-F Switch Models" on page 21 to check which EX4100 and EX4100-F
models use which PSUs or built-in power supplies.

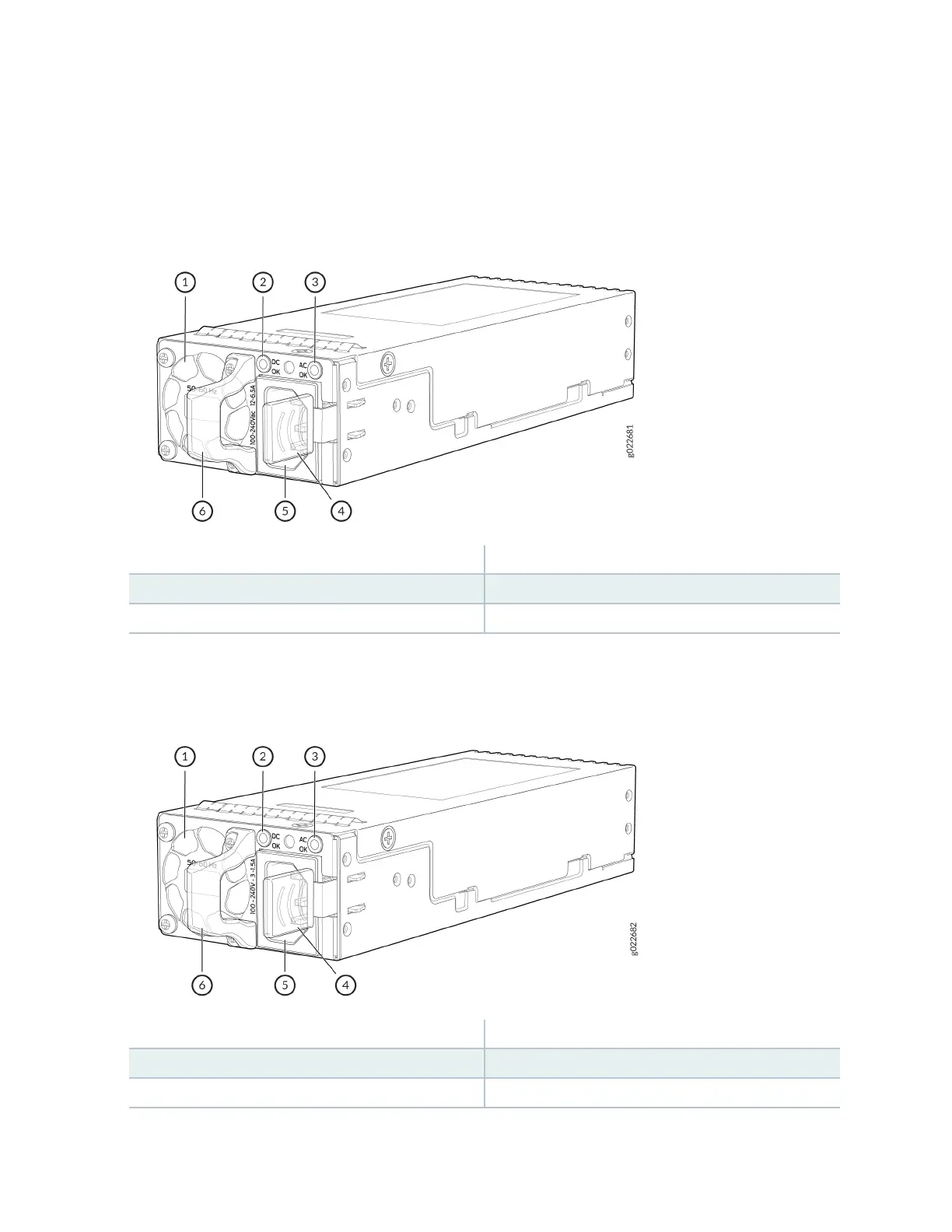

Figure 55: 920-W AC Power Supply for EX4100-48P and EX4100-24P
1—
Power Supply Unit Fan
4—
Power Supply Unit ejector lever
2—
Power Supply Unit DC LED
5—
Power Supply Unit inlet
3—
Power Supply Unit AC LED
6—
Power Supply Unit handle
Figure 56: 150-W AC Power Supply for EX4100-48T, EX4100-24T, and EX4100-48T-AFI
1—
Power Supply Unit fan
4—
Power Supply Unit ejector lever
2—
Power Supply Unit DC LED
5—
Power Supply Unit inlet
3—
Power Supply Unit AC LED
6—
Power Supply Unit handle
