Juniper QFX5120-48Y-AFO2 Hardware Guide

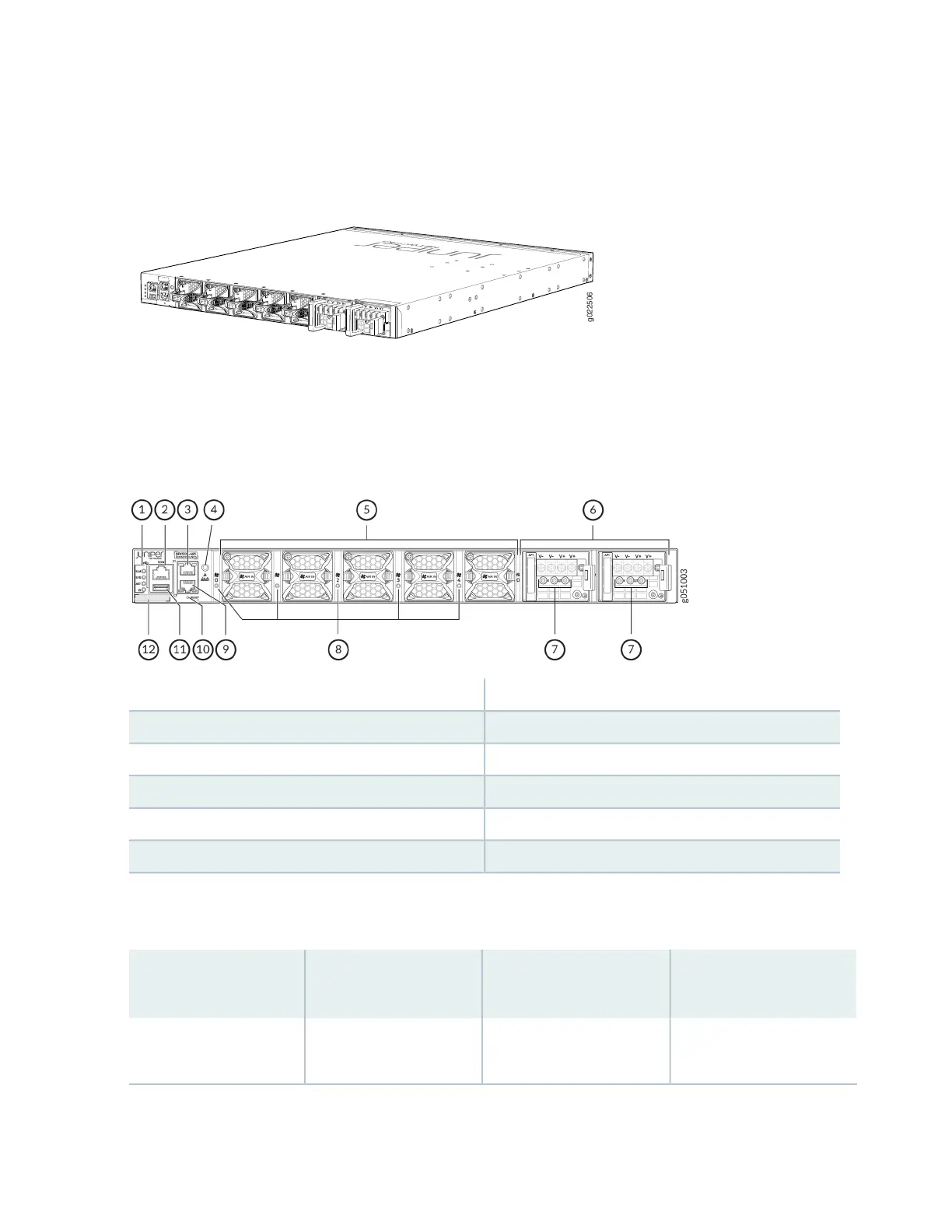

Figure 9 on page 26 shows the rear view of a QFX5120-48Y switch with DC Power Supplies.
Figure 9: Rear Panel of a QFX5120-48Y Switch with DC Power Supplies
g022506
IN
IN
Figure 10 on page 26 shows the components on the rear panel of a QFX5120-48Y switch with DC Power
Supplies.
Figure 10: Components on the Rear Panel of a QFX5120-48Y Switch with DC Power Supplies
7—1— Power Supply LEDsChassis Status LEDs
8—2— Fan Module LEDsConsole Port
9—3— RJ-45 Management Port (C0)RJ-45 Management Port (C1)
10—4— Reset ButtonESD Point
11—5— USB PortFan module
12—6— CLEI LabelPower Supplies
Table 3 on page 26 lists the QFX5120 switch models and their components.
Table 3: Components in QFX5120 Switches
Power Supply Shipped by
Default
Fan Modules Shipped by
DefaultBuilt-in PortsSwitch Models
Two 650 W AC power
supplies (1+1 redundancy).
Six fan modules; each with
an AIR OUT (AFO) label.
32x100G QSFP28 ports
and 2x10G SFP+ ports
QFX5120-32C-AFO
26
