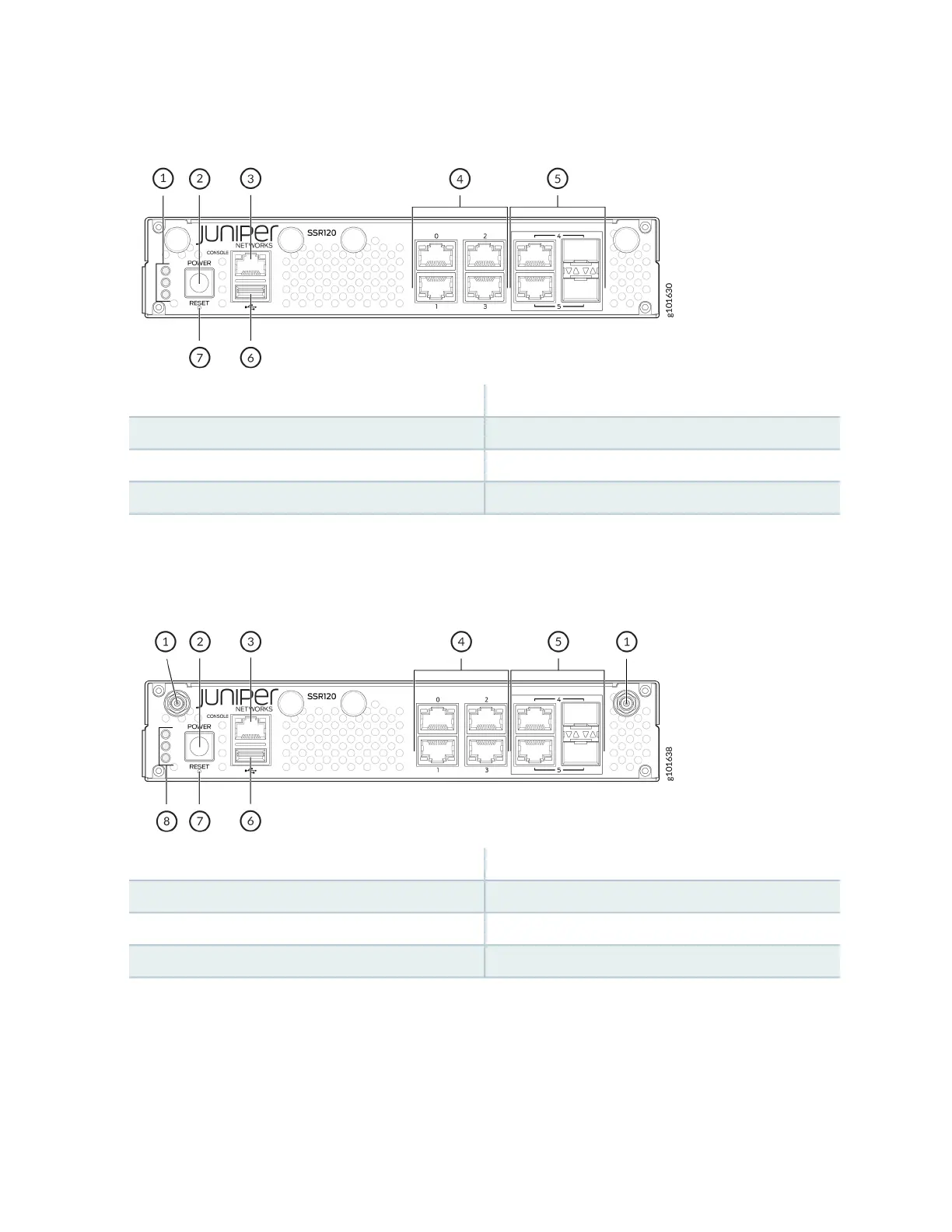

Figure 1: Front Panel Components of SSR120
51 1 GbE RJ-45/SFP Combo PortsChassis LEDs
62 USB 3.0 portPower button
73 Reset buttonConsole Port
41 GbE Ethernet Ports
Figure 2 on page 11 shows the front panel components of SSR120-AA and SSR120-AE.
Figure 2: Front Panel Components of SSR120-AA and SSR120-AE
51 1 GbE RJ-45/SFP Combo PortsAntenna connectors
62 USB 3.0 portPower button
73 Reset buttonConsole Port
84 Chassis LEDs1 GbE Ethernet Ports
The SSR120 supports two 1 GbE RJ-45/SFP combo ports for WAN connectivity. You can connect either
an SFP (fiber) or RJ-45 (copper) cable on the 1 GbE RJ-45/SFP combo port. The SSR120 automatically
detects the media that is connected on the combo port.
