Before First Time Use
Introduction
DSO112A is based on DSO112 with re-designed schematic and
PCB. While keeping all functions and performance of its
predecessor it exhibits significantly higher vertical sensitivity and
ultra low background noises. As a small, light, accurate, and
battery operated oscilloscope DSO112A is best for portable or
field use.
Packing Contents
Check packing contents based on sku number and the
following table.
11201A 11202A
DSO112A
Oscilloscope
1 1
MCX-Clip
Probe
2 2
USB Cable 1 1
Battery 1
Switch on Battery

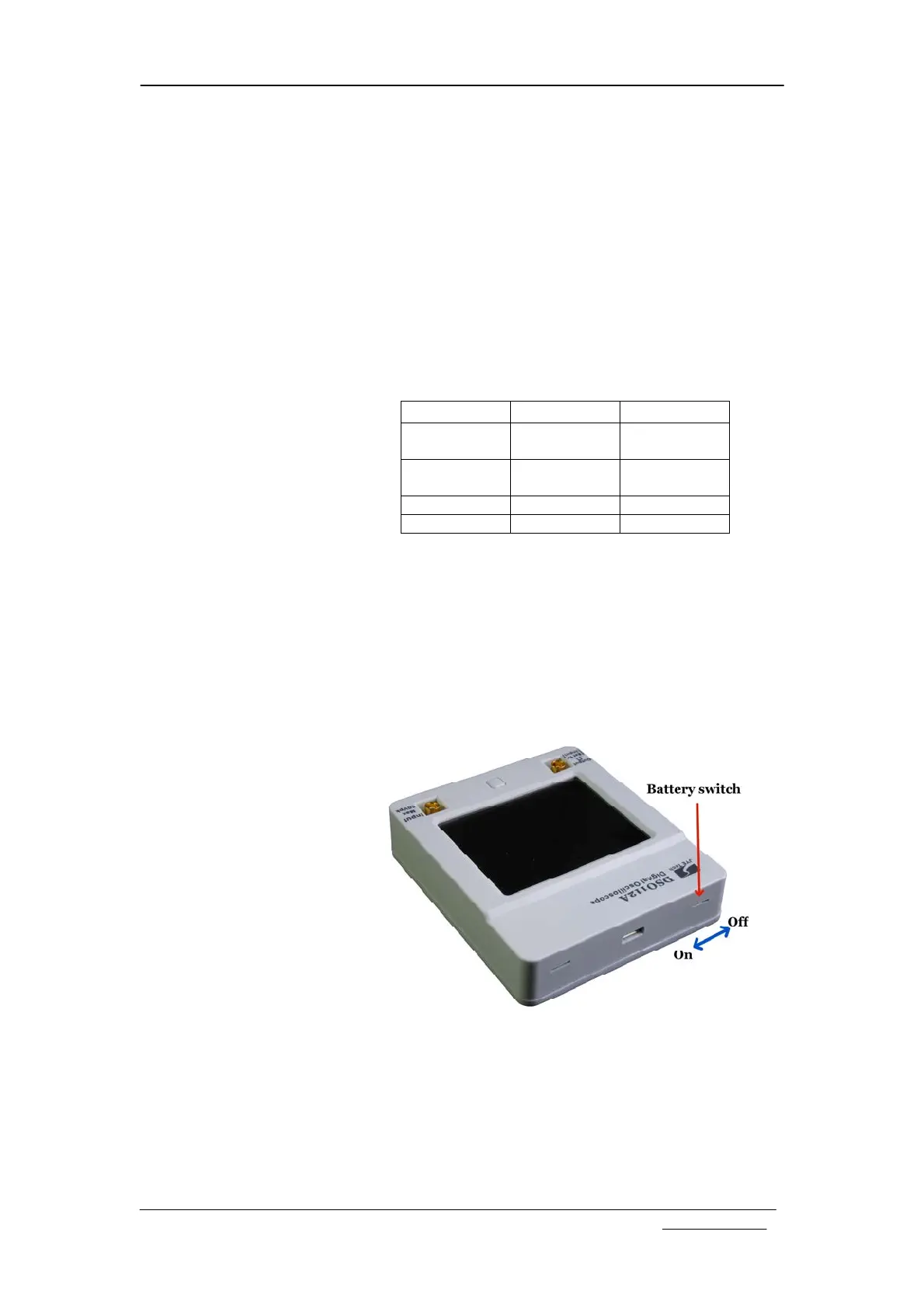

For transportation safety the battery was disconnected by a
switch prior to shipping. This switch must be turned on before
the battery can be used. The switch locates inside the enclosure
close to the top-left corner (see the next two photos). It can be
turned on by slide it towards the USB connector with a small
stick through the slot at top-left corner of the enclosure. Please
refer to the photo below.
To Next Page
