Kaba Access manager 92 32 - LEGIC Reader; Ambient Conditions; Dimensions;Weight; Dimensional Drawings

Technical Manual Product Description
1304045524 - 08/2016Kaba access manager 92 32
3.3.7 LEGIC reader
• RFID standard: ISO 14443A
• Supported badge media:
– LEGIC advant
3.3.8 Ambient conditions
• Ingress protection according to IEC 60529: IP40
• Relative humidity: 5% to 85%, non-condensing
• Ambient temperature:
– 0 °C – +50 °C (operation)
– -20 °C – +65 °C (storage)
3.3.9 Dimensions/Weight
• Length: 208 mm
• Width: 208 mm
• Depth: 48 mm
• Weight: approx. 0.6 kg

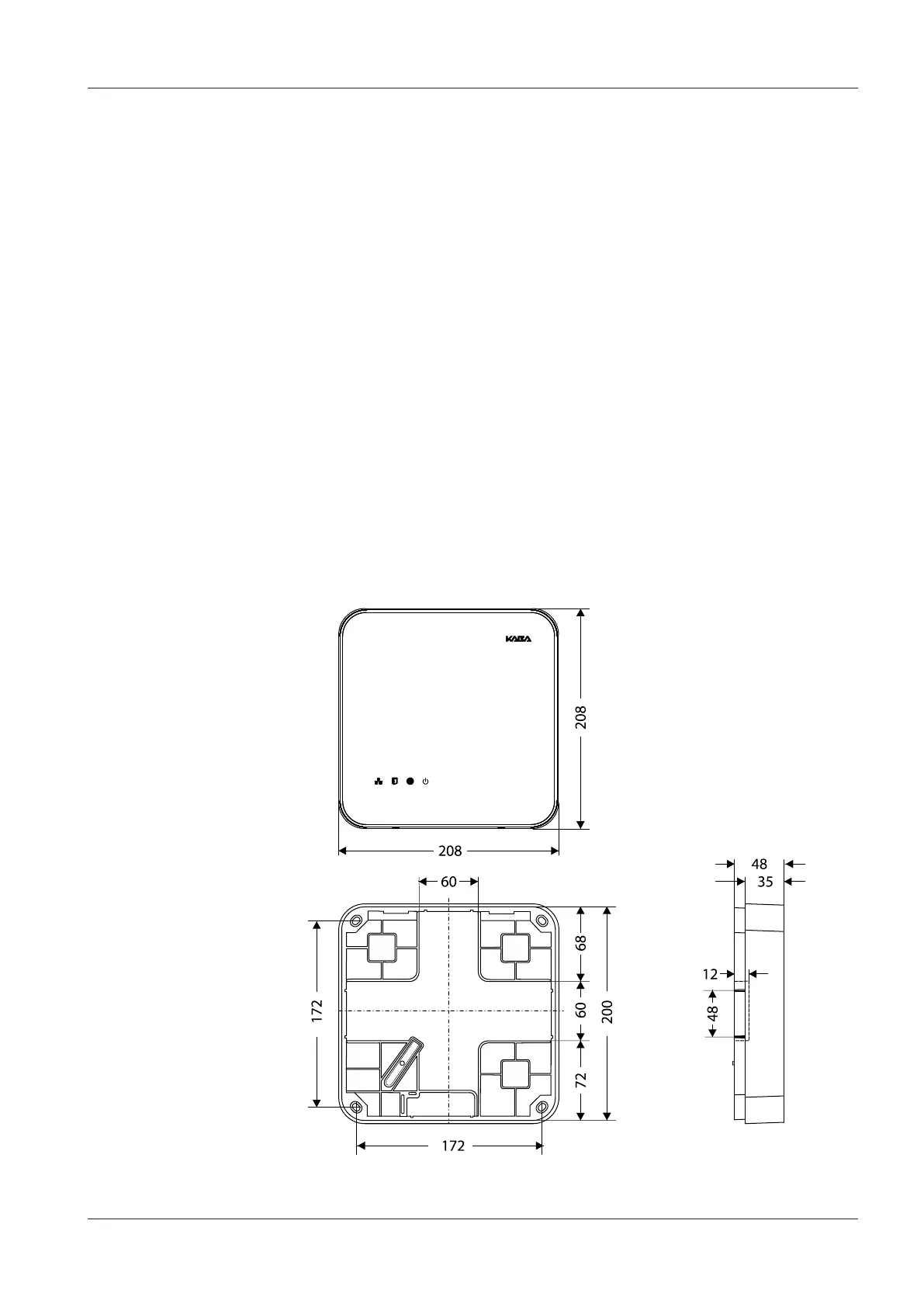

3.3.10 Dimensional drawings
Dimensions in mm
