6.3.3 Connecting the device to the power supply
Once the registration unit(s) is/are connected, the access manager must be con-
nected to the power supply. If the device is supplied with current via the Ethernet
(PoE), it is sufficient to connect the Ethernet cable. Otherwise, an external 24 V DC
supply must be connected (see External 24 V DC power supply [}î5.7.3]).
6.3.4 Configuring the Ethernet interface using Service Tool
If no functioning DHCP server is available or a manual parameterizing of the Ethernet
interface is desired, the Ethernet interface must be put into operation using Service
Tool. For this, a computer with an USB connection and a SSH terminal program, for
example PuTTY which can be downloaded from the Internet is required.
Requirements
The following work steps must be carried out to meet the requirements for the use of
the Service Tool.
1 Install a SSH terminal program (e.g. PuTTY) on the computer.
2 Download FTDI driver (can be obtained from Kaba)
and install on the computer.
3 Connect the FTDI debug cable (can also be obtained from Kaba) to the computer
via USB. The FTDI debug cable is detected by the system and shown in the device
manager as virtual COM port (e. g. COM3).
4 After that, connect the connector on the other end of the FTDI debug cable to
the device as described below.
5 Start the SSH terminal program end enter the configuration parameters de-
scribed below.

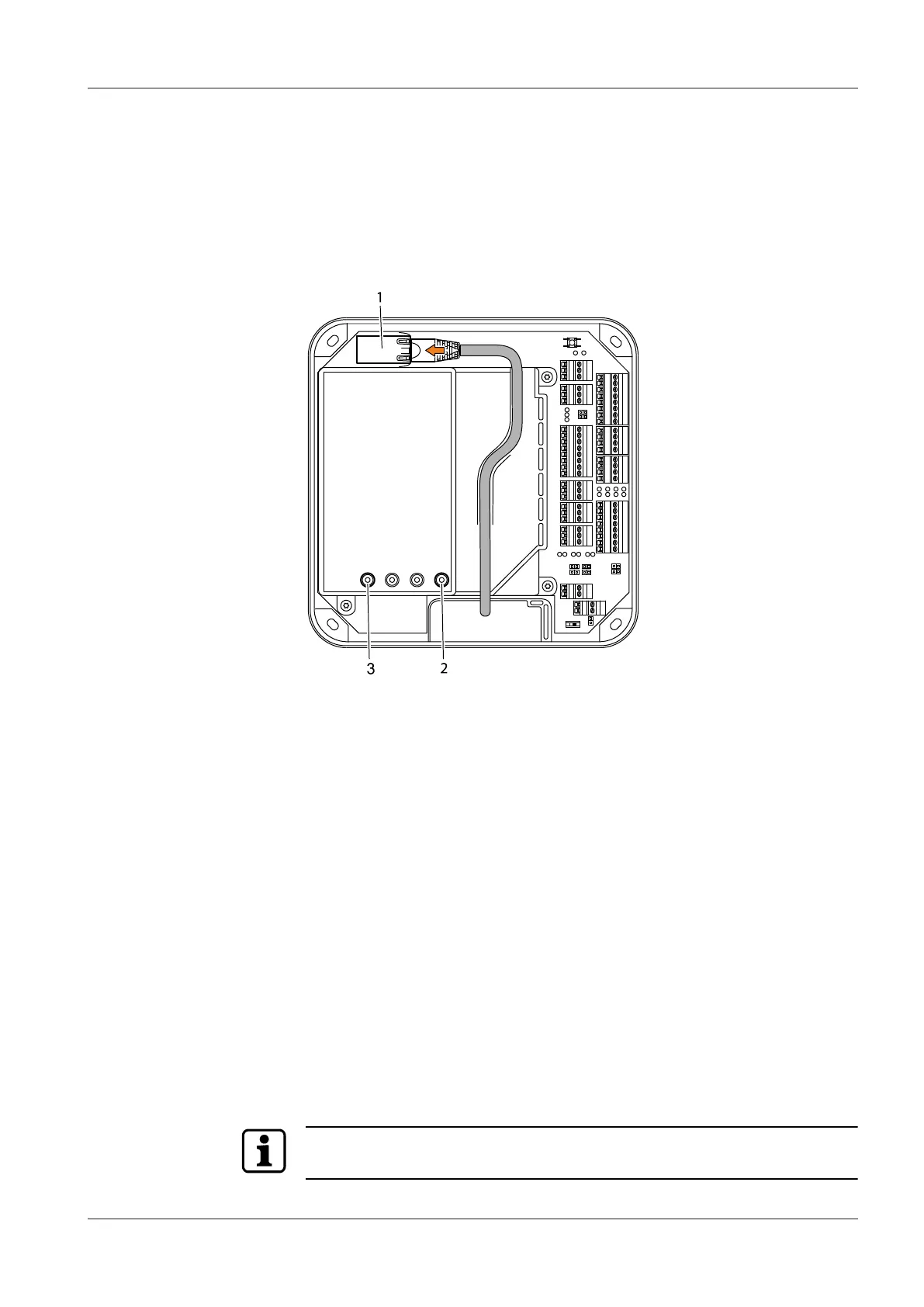

Connecting the FTDI debug cable to the device
Ensure correct polarity! The black cable at the connector must be connected to pin 1.
Pin 1 is marked on the cover by an arrow.
