Kaba Access manager 92 32 User Manual

Installation Technical Manual
24 04045524 - 08/2016 Kaba access manager 92 32

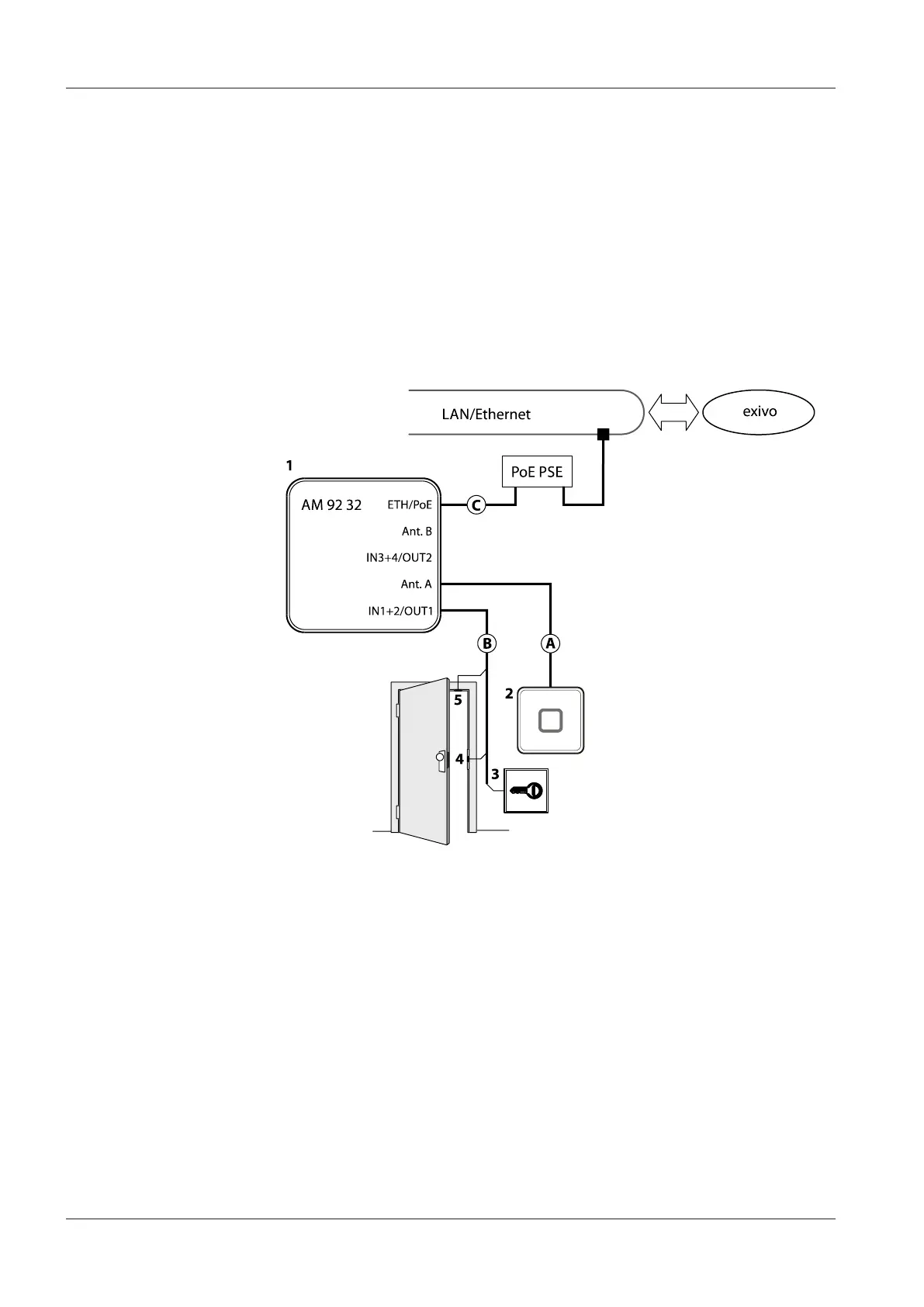

5.2 Installation diagram
5.2.1 Access control with registration unit
Example:
• Access control with RFID registration units
• PoE power supply of the access manager
Method for feeding in the power supply via the PSE (Power Sourcing Equip-
ment):
– End span (direct supply, e.g. via PoE switch)
– Midspan (supply via intermediate sources, e.g. PoE injector)
1 Kaba access manager 92 32
2 Registration unit
3 Door opener key
4 Door opener
5 Door frame contact
Installation lines
A Coaxial cable to the registration unit
B Line to the door contact, the door opener key, and the door opener
C Ethernet network cable
