5.7.4 Registration units
Up to 2 registration units can be connected. The registration units A + B are con-
nected by means of the coaxial cable to the RFID input terminal.
Make sure that antenna A (Ant.A) is connected first and antenna B (Ant. B) is con-
nected after that.

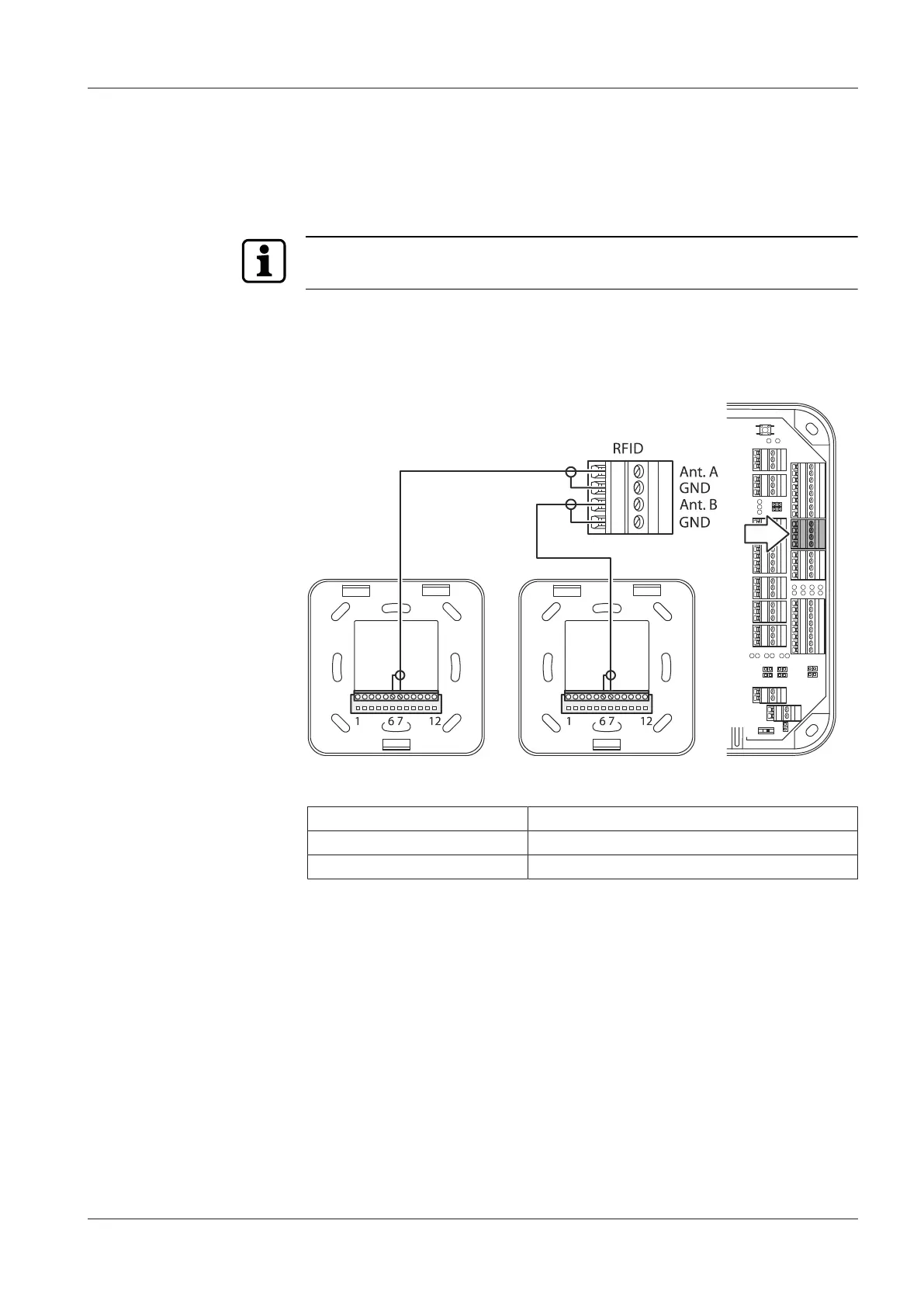

Example: Connection of Kaba registration unit 90 01.
Connection designation Assignment
Ant. A/B Central conductor of coaxial cable
GND Shield of coaxial cable
