4.2 Functional principle

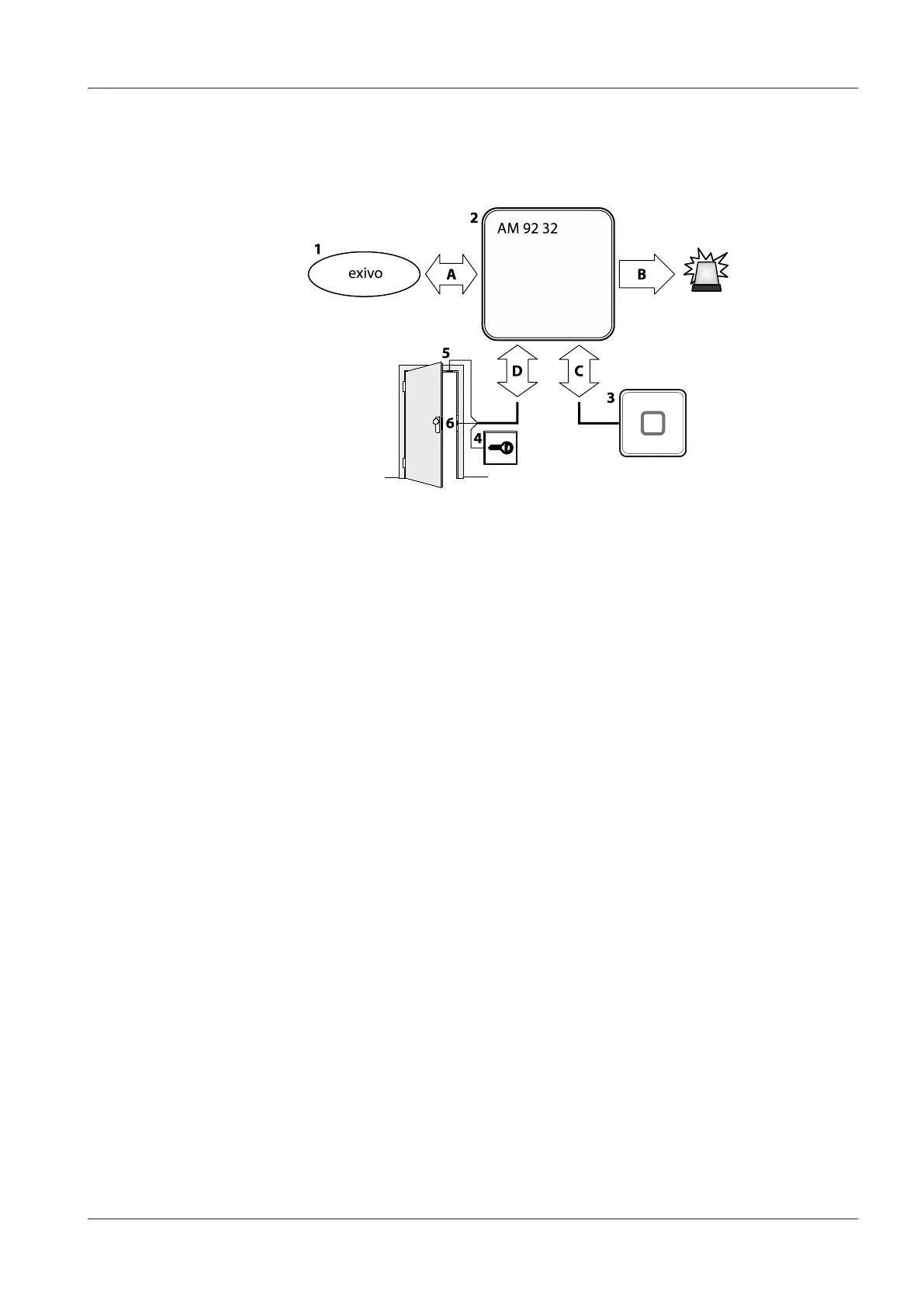

Example of the functional principle of an access manager
1 Internet platform
2 Kaba access manager 9232
3 Registration unit
4 Door opener key
5 Door frame contact
6 Door opener
A Communication with the Internet platform
B Alarm signals
C Badge data and user guidance
D Signals for door opening and monitoring
4.3 Superior system
Communication with the superior system (Internet platform) takes place via the Eth-
ernet network.
The superior system serves for centralized management of authorizations, access and
room profiles, system configuration and alarm management.
4.4 Structure of the registration unit
The data collection of identification data is performed via external registration units.
Type and number of registration units that can be connected:
• Max. 2 units
• Connection individually via HF antenna connection (HF-RFID)
• Data collection of identification data
• Control of optical and acoustic signal generators
• Power supply via the access manager
