Parameterization
The access manager is parameterized via the "door templates" in the partner applica-
tion (software).
4.10 Light emitting diodes

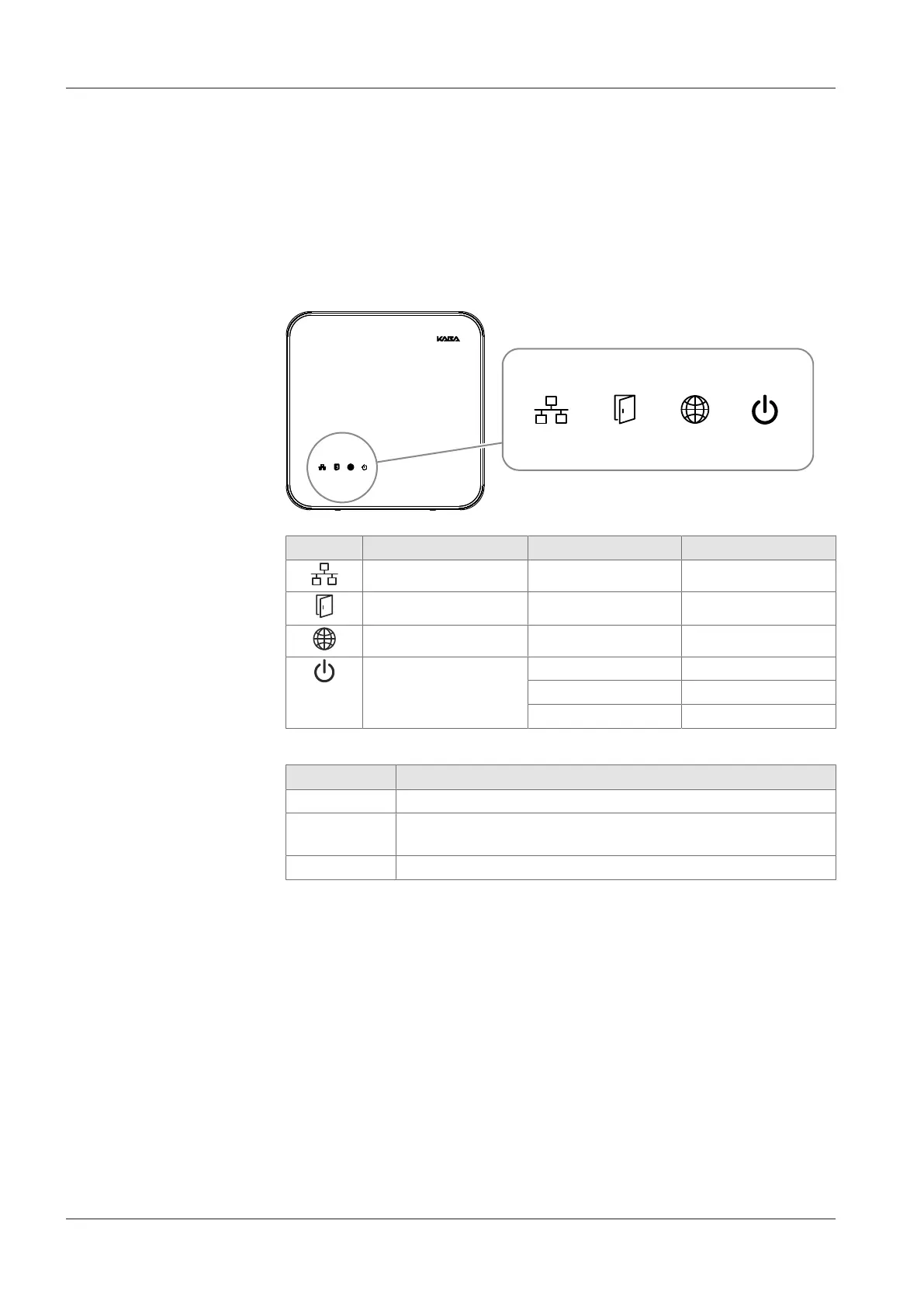

The housing front contains 4 light emitting diodes for status display. The light emit-
ting diodes have the following symbols.
Fig.1: Light emitting diodes
Symbol Designation Signal Meaning
Ethernet Lit/flashing in yellow Data transfer active
Device status (state)
see chapter 4.10.1 see chapter 4.10.1
exivo network
see chapter 4.10.1 see chapter 4.10.1
Power Lit in green Power good
Lit in red Power fail
Off Power off
Explanation of the power states
State Meaning
Power good Device power supply is stable
Power fail Load of the device power supply is within the limits. Application of
further load leads to the switch-off due to overload.
Power off No power supply
