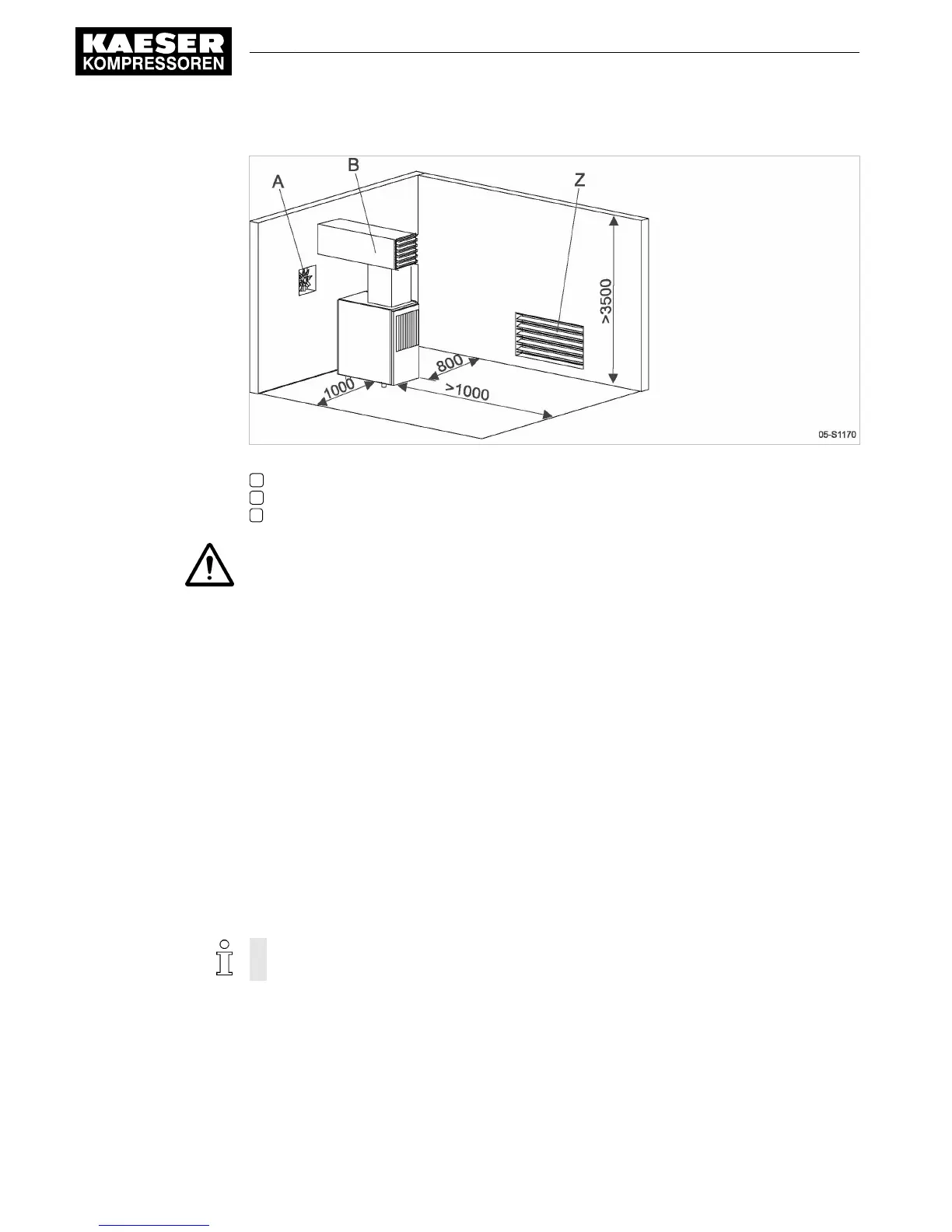

Fig. 9 Recommended machine placement and dimensions [mm]
A Exhaust fan
B Exhaust air duct
Z Inlet air opening
1.
NOTICE!
Ambient temperature too low!
Frozen condensate and highly viscous cooling oil can cause damage when starting the ma‐
chine.
➤ Make sure that the temperature of the machine is at least +3 °C before starting.
➤ Heat the machine room adequately or install an auxiliary heater.
2. Ensure adequate lighting so that all work on the machine can be carried out without danger or
hindrance.
3. Ensure that the indicators can be read without glare and that the controller display cannot be
damaged by direct sunlight (UV radiation).
4. Ensure that all intake and exhaust apertures of the enclosure remain opened.
5. If installed outdoors, the machine must be protected from frost, direct sunlight, dust and rain.
5.2.2 Ensuring the machine room ventilation
Adequate ventilation of the machine room has several tasks:
■ It prevents subatmospheric pressure in the machine room.
■ It evacuates the exhaust heat of the machine and thus ensures the required operating condi‐
tions.
➤ Consult with KAESER if you cannot ensure the conditions for an adequate ventilation of
the machine room.
1. Ensure that the volume of air flowing into the machine room is at least equivalent to that being
removed from it by the machine and exhaust fan.
2. Make sure that the machine and exhaust fan can only operate when the inlet aperture is ac‐
tually open.
5 Installation and Operating Conditions
5.2 Installation conditions
38
Service Manual Screw Compressor
ASK T SIGMA CONTROL BASIC 9_5717 20 E
