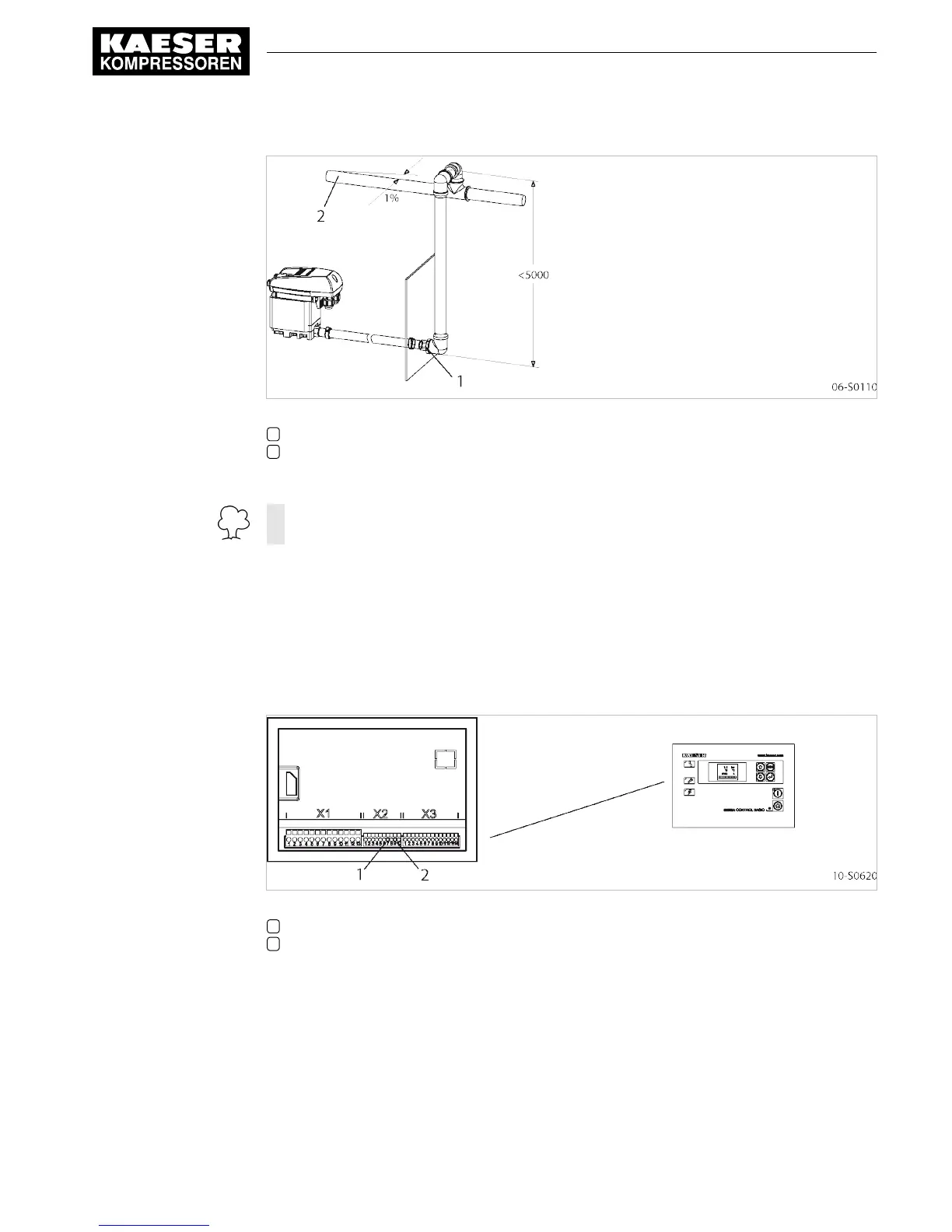

Fig. 11 Condensate drain dimensions [mm]
1 Threaded connection
2 Condensate collecting line
➤ Connect the condensate hose.
➤ Collect the condensate in a suitable container and dispose of in accordance with environ‐
mental regulations.
Further information The dimensional drawing in chapter 13.3 gives the size and position of the condensate drainage
connection ports.
6.6 Connecting the remote LOAD-IDLE control
Material Screwdriver: DIN 5264 A – 0.4x2.5 mm
Flexible conductor: 0.5–1.5 mm
2
(maximum length 100 m; recommended: NYSLYÖ 2x1.0 mm
2
)
Fig. 12 Connections SIGMA CONTROL BASIC
1 Input I4: Pin 7
2 Supply 24 VDC: Pin 9
1. Lay the cable in a manner that it is not stressed when the control cabinet door is opened.
2. Strip 8 mm of insulation from the ends of the conductors.
3. Use a screwdriver to open the spring-loaded terminals and insert the ends of the conductors in
the square openings above the corresponding terminals.
4. Secure the cable so there is no tension on the X2 plug.
5. Seal the cable gland against ingress of dirt or moisture.
6 Installation
6.6 Connecting the remote LOAD-IDLE control
9_5717 20 E
Service Manual Screw Compressor
ASK T SIGMA CONTROL BASIC
43
