Design and Function
4 --- 23
4.2 Options
4.2.1 Machine mountings (option H1)
The machine mountings enable the machine to be anchored to the floor.
4.2.2 Cooling air filter mats (option K3)
Mats filter the cooling air and keep the cooler surface clean.

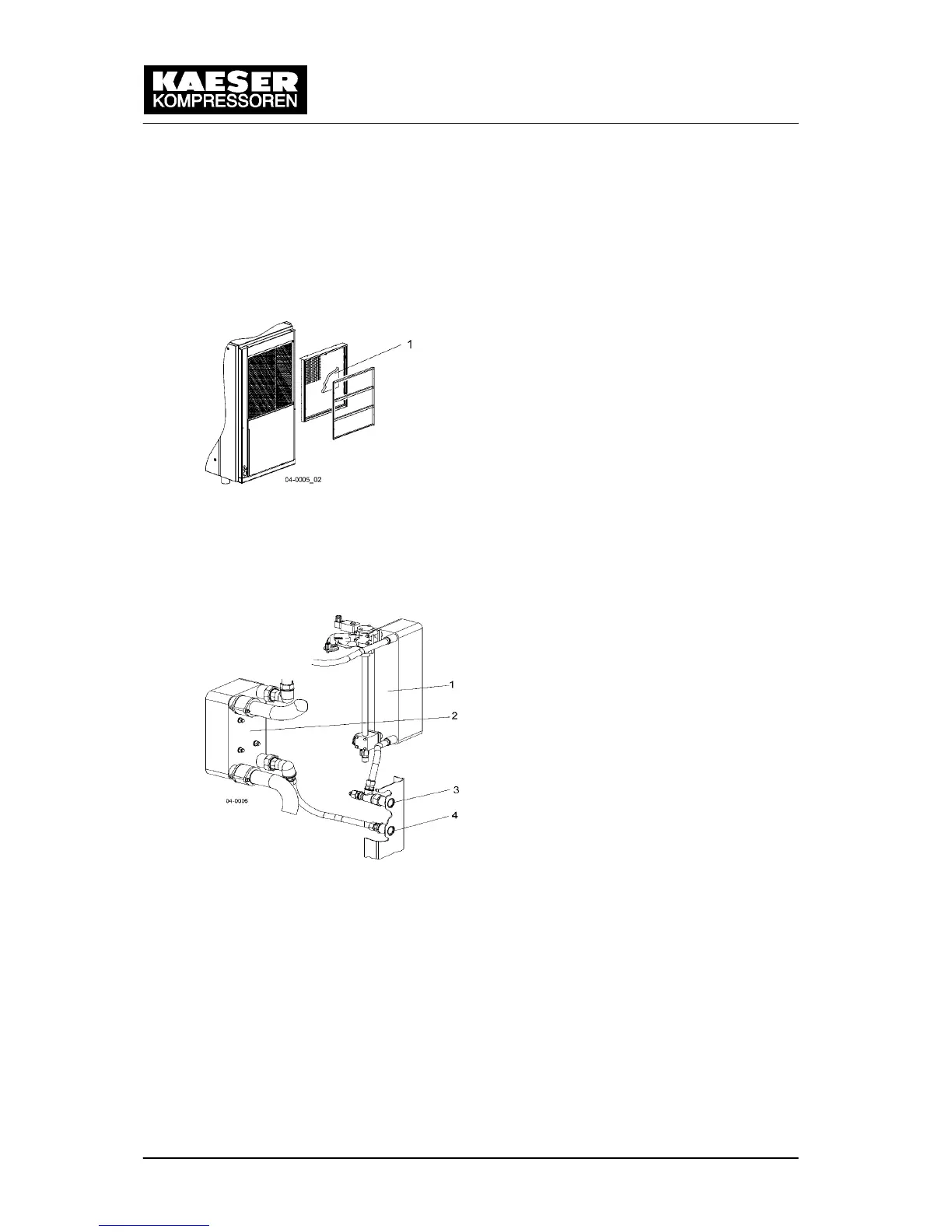

Fig. 4 Cooling air filter mats
1 Cooling air filter mat
4.2.3 Water cooling (option K2)
Plate heat exchangers in stainless steel are used for water---cooled machines.
Fig. 5 Water cooling
1 Oil cooler 3 Cooling water connection
2 Compressed air aftercooler 4 Cooling water connection
4.2.4 Heat recovery
Prepared for external heat recovery (option W1)
Connections are provided and bridged.
An external heat recovery system can be retro---fitted at any time.
Internal heat recovery (option W2 / W3)
A plate heat exchanger (1) is installed for heat recovery.
