Maintenance
10 --- 57

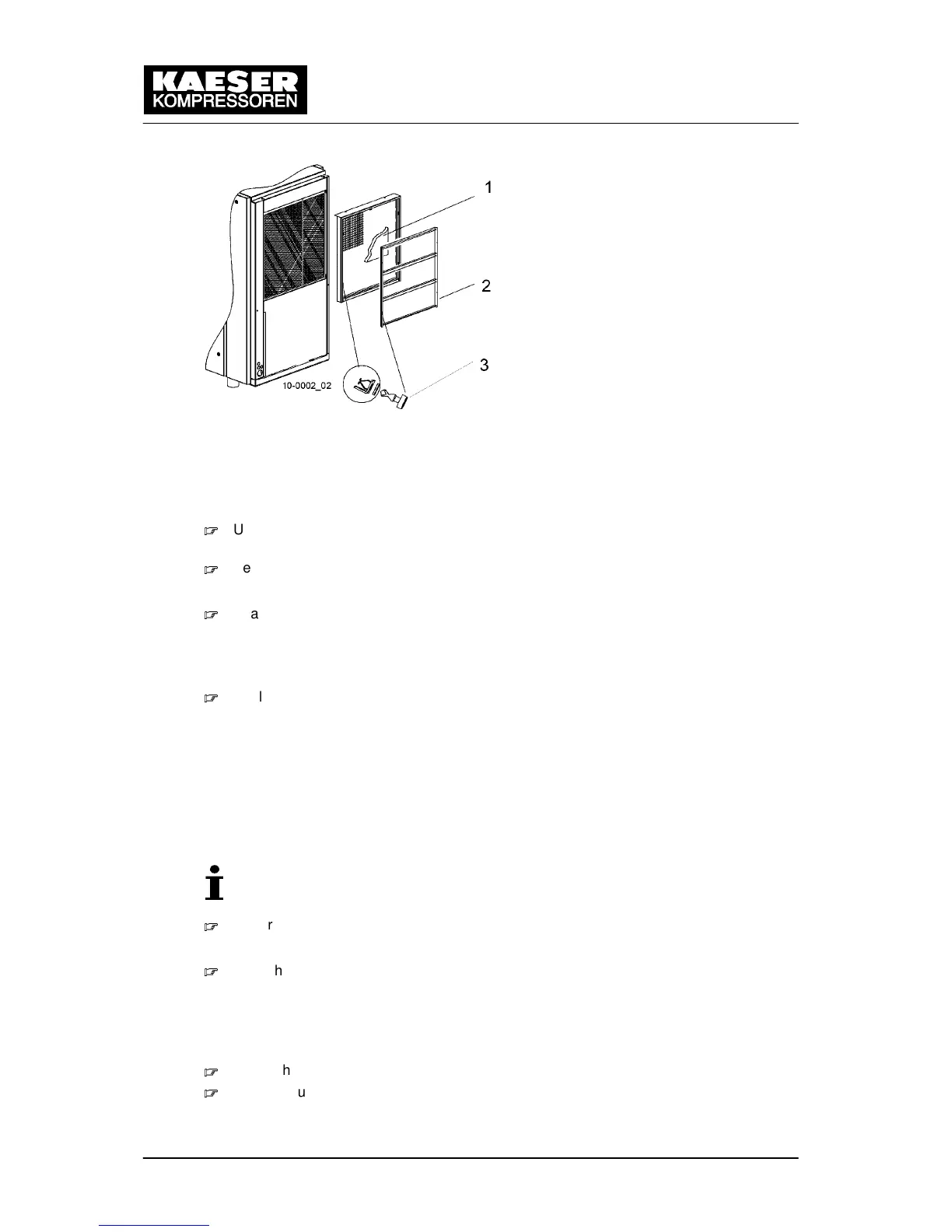

Fig. 21 Cooler filter mats
1 Filter mat
2 Retaining frame
3 Fixing
Removal
Unlock the fixings (3).
Use a screwdriver to turn the fixing 90˚ anti---clockwise.
Remove the frame (2).
Cleaning
Beat the mat (1) or use a vacuum cleaner to remove loose dirt. If necessary, wash the
mat in lukewarm water and household detergent then rinse thoroughly.
Renew the mat if cleaning is not possible of has already been carried out five times.
Replacing
Replace the frame and close the fixings.
Press and turn the fixings 90˚ clockwise until they latch.
10.3.3 Water cooling maintenance (option K2)
Pre---condition: Machine switched off.
Mains isolator locked off
Machine cooled down.
Check the cooler regularly for leaks and contamination. Frequency of checking is depend-
ant on the characteristics of the cooling water.
Contamination causes overheating and machine damage.
Observe the airend discharge temperature to detect any tendency to rise.
Cleaning:
An authorised KAESER service agent should clean the cooler when the airend dis-
charge temperature is 10 ˚ C above the annual average.
Leakage
Pressure in the cooling oil circuit is generally higher than that in the cooling water system.
If a leak occurs, oil will run into the cooling water.
Check the cooler visually for leaks.
Have an authorised KAESER service agent check the cooler for internal leaks at least
once a year.
