56

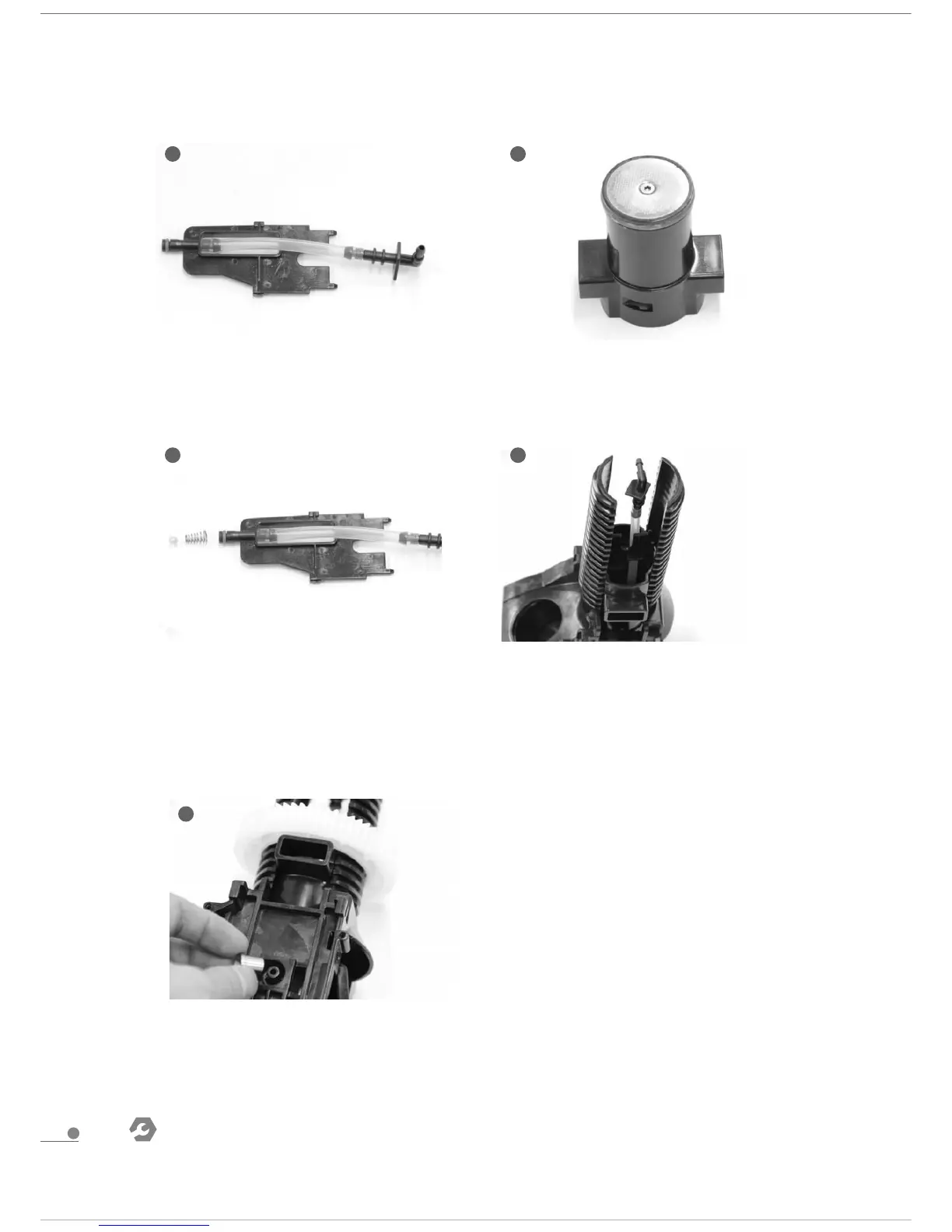

3. Assemble the pin seal and pin together
to drainage valve connection. Note: the
direction of the pin seal.
4. Coating the contropistone seal with
lubricating oil(SYN-setral-Al/C 2-FD) and
install to the contropistone, and then lock
the filter screen.
3 4
5. Assemble the connector, ball and
spring into contropistone. Pay attention to
the arrow direction.
6. Assemble the already installed
contropistone into the brew unit frame.
Note: The direction of the contropistone
should be the same as the picture showed.
5 6
Repair
7. Rotate the gear onto the brew unit
frame, install the sleeve pipe, the small
head of sleeve pipe should be inward.
7
Service Manual
Intelligent Fresh Ground Coffee Machine
KLM1602
