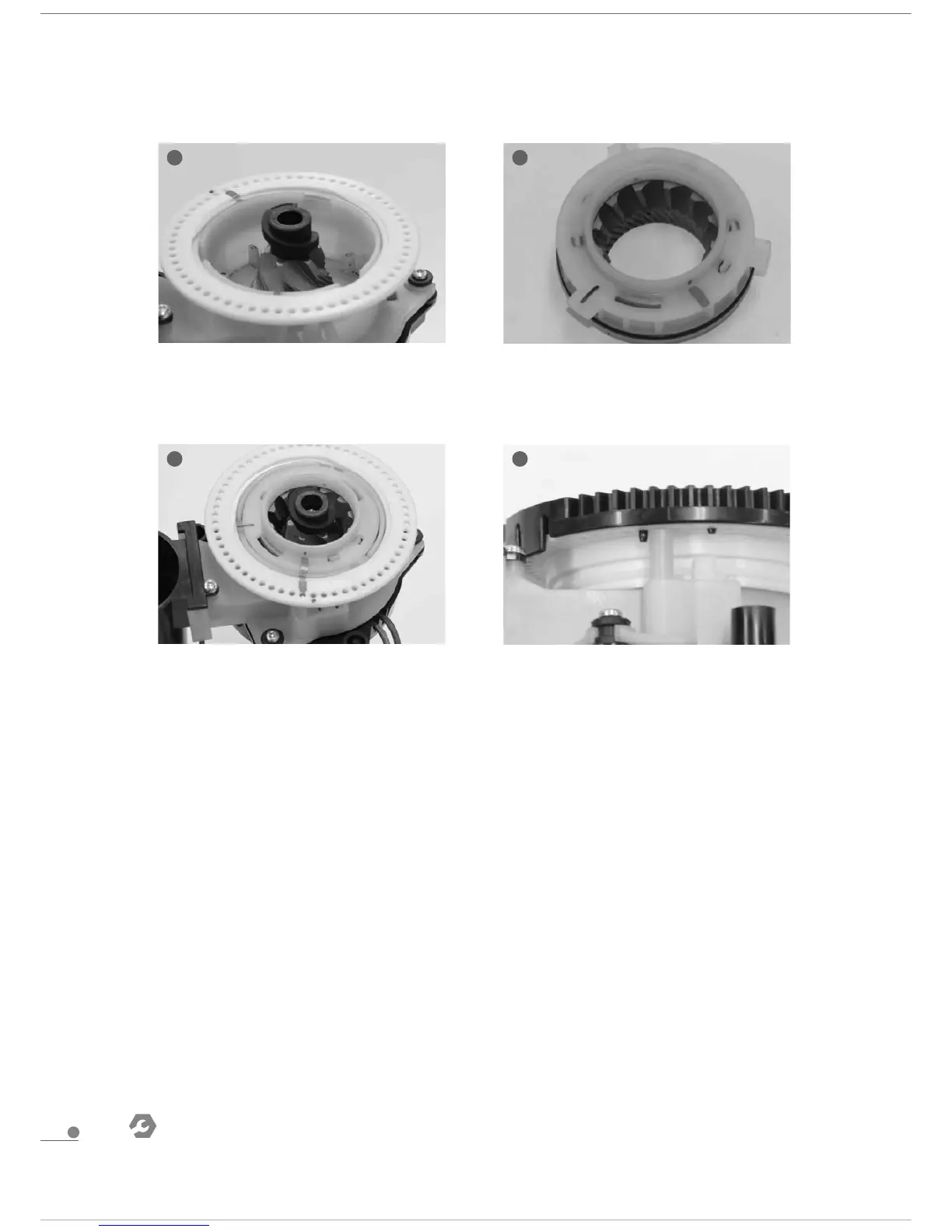

18. Install the grinder adjustment ring in the
motor support for grinder.
19. Assemble upper burr, upper grinder
support, upper grinder cover and support
seal together.
18 19
20. Insert the already installed upper burr into
motor support for grinder, and adjust the gap
between the conical burr and upper burr.
21. Install the grinder adjustment sensor to
grinder adjustment ring . The position should
be as the picture shows.
22. The already installed grinder group should be tested when the whole machine is installed. The
thickness of the powder should be adjusted properly.
