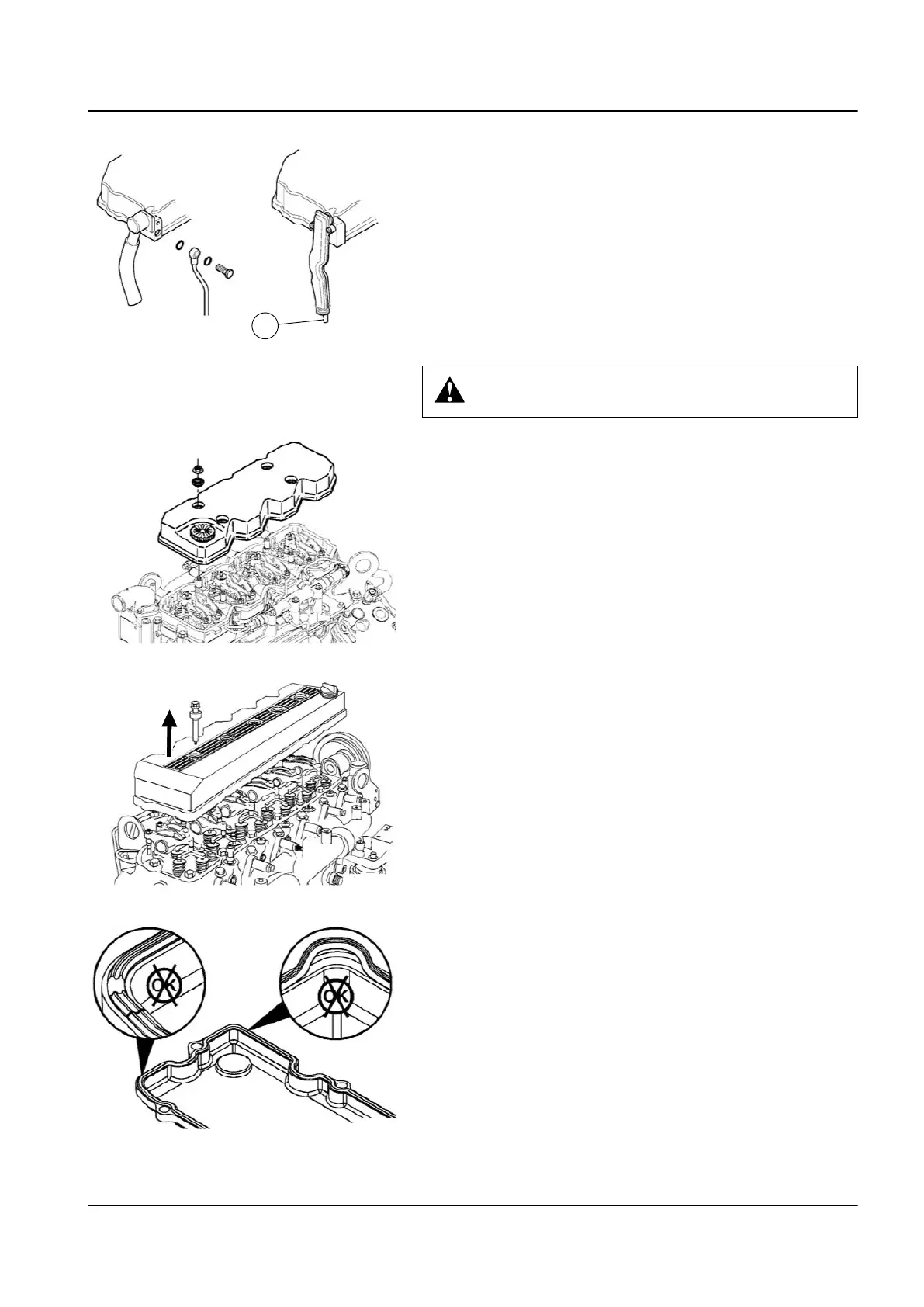

4 If equipped, at the rear of the rocker lever cover, remove the
banjo bolt and sealing washers connecting the breather oil
drain line to the rocker lever cover.
NOTE
Not all engines with an internal mounted crankcase breather are
equipped with an external breather oil drain line. On some engines
the breather oil drain line is internal to the breather connection tube
(
C
).
5 Remove the mounting nuts and isolators from the rocker lever
cover.
6 Remove the rocker lever cover.
7 Examine the gasket for cracks on the sealing surface.
NOTE
Examine the gasket while it is installed in the valve cover. Once the
gasket is removed from the cover it must be replaced.
Stud mounted rocker lever cover
Capscrew mounted rocker lever cover
