ULTRAFLOW® 54 · DN150-300

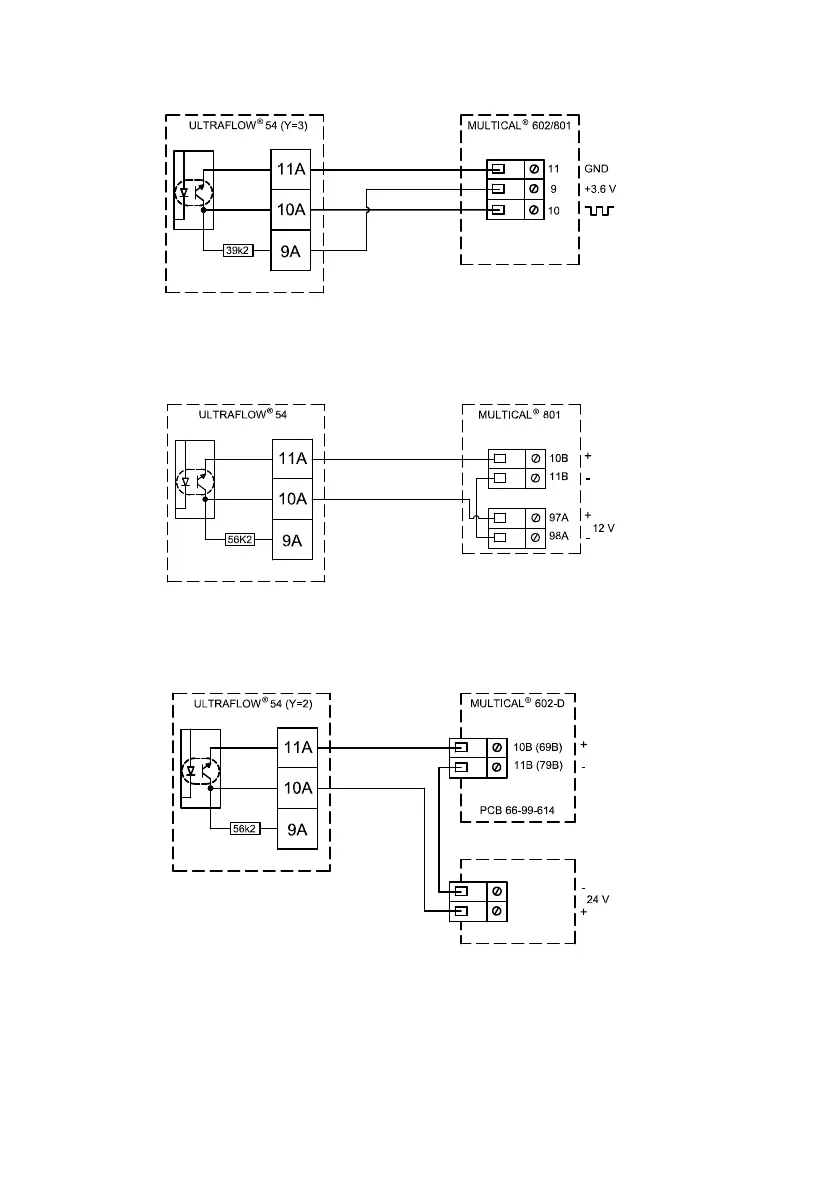

Digrm 2 – Three-wire connection, MULTICAL® 602/801 vi output module (Y=3).
Cble length up to 25 metres.
Digrm 3 – Two-wire connection, MULTICAL® 801 vi output module (Y=2).
Cble length up to 100 metres.
Digrm 4 – Two-wire connection, MULTICAL® 602-D vi output module (Y=2) nd externl
24 VDC supply. Cble length up to 100 metres.
If long signl cbles re used, instlltion requires creful considertion. Due to EMC there must be
 distnce of min. 25 cm between signl cbles nd ll other cbles.
