Front of the Camera Electronic Unit (CEU)
View of PCB connection located on the front of the CEU.

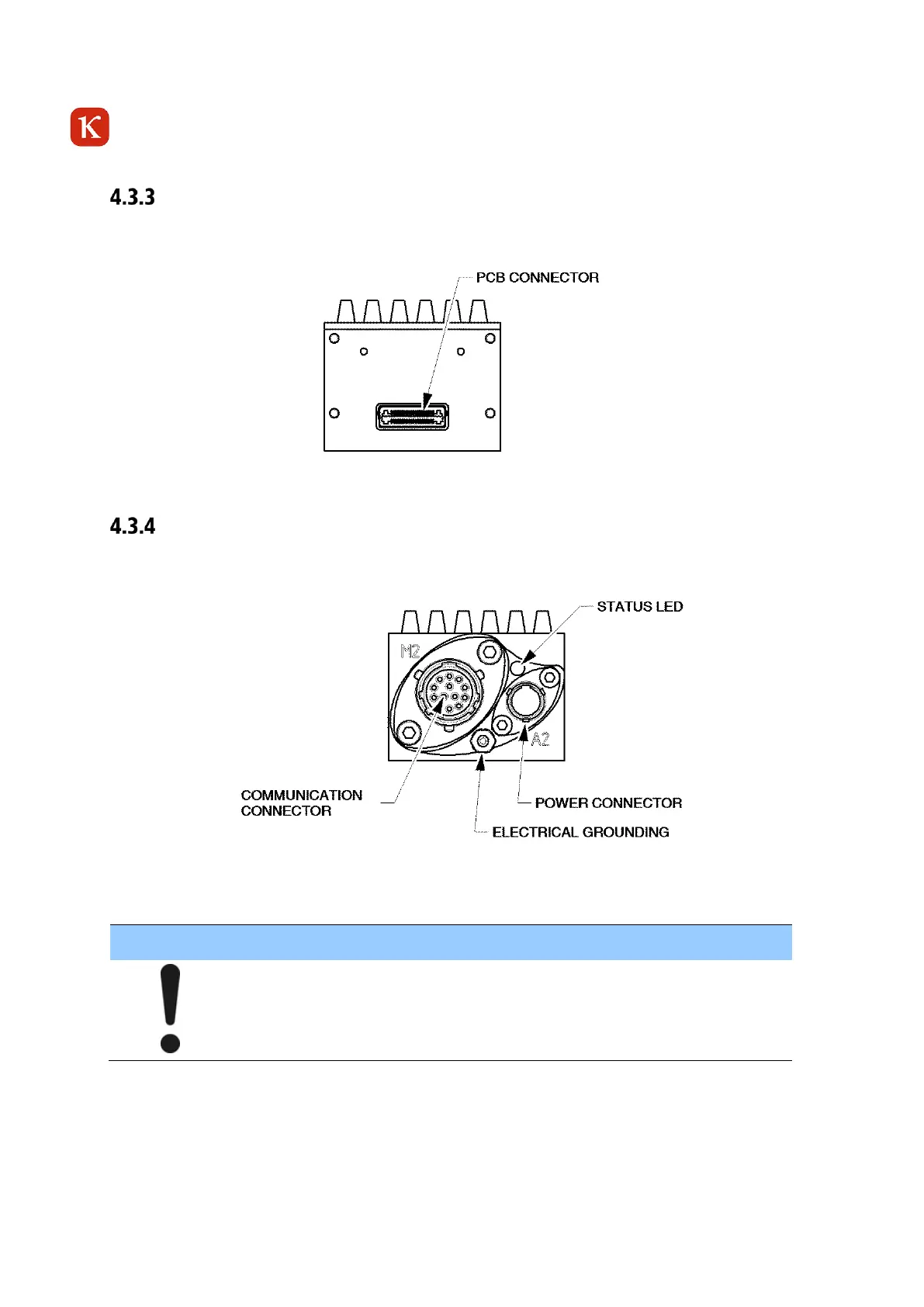

Figure 4-8 Camera Electronic Unit - Front View
Rear of the Camera Electronic Unit (CEU)
View of electrical connections located on the back of the CEU.
Figure 4-9 Camera Electronic Unit - Rear View
NOTICE
Damage to the connectors due to use of too much force for the connection!
If you use too much force to connect the cables, this can damage the connectors.
 Do not use too much force to connect the cables to the connectors.
