Kappa Flight Eye FE320 - Communication Connector M2 - CEU; Table 4-3 A2-Pin Configuration CEU; Table 4-4 Communication Connector M2

22
4.5.1.1 Pinning Power Supply Connector A2 - CEU
Pin
Signal
I/O
Comment
A
Power input
Input
Power Input 9V…36V
B
Shield
–
Shield
(Connected to chassis mechanical ground and
not to circuitry GND)
C
Power input return
Input
Power Input 9V…36V
(Circuitry GND)

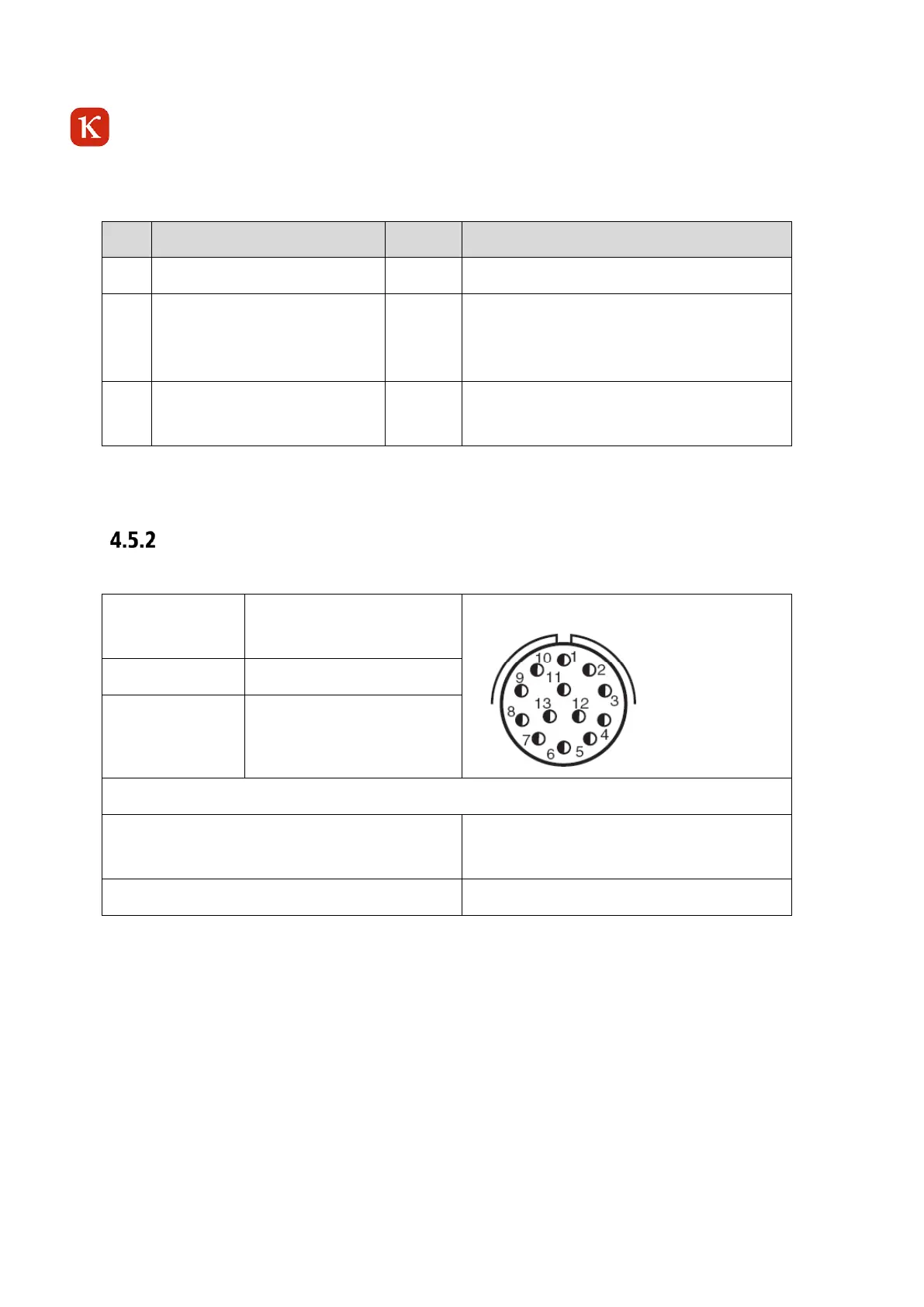

Table 4-3 A2-Pin Configuration CEU
Comm unication Connector M2 - CEU
The communication with the camera is done via the M2 connector “Souriau 8 STA 21035 PN”.
Table 4-4 Communication Connector M2
Connector type:
Souriau
8 STA 21035 PN
View from outer side of CEU:
Description:
System Connector
Kappa PN:
332-0310
Recommended cable connector
8STA61035SN
Kappa PN: 332-0312
Recommended cable
Kappa PN: 922-0286
