5 CEU Installation

1. Put the CEU on an aluminum plate.

2. Install the four washers and bolts M2.5 as shown on Figure 5-1.

3. Torque the bolts M2.5 to between 0,6 Nm and 0,8 Nm (5.31 to 7.08 lb in).

For a sufficient heat transmission, KAPPA recommends the installation of the CEU on

a flat aluminum plate.

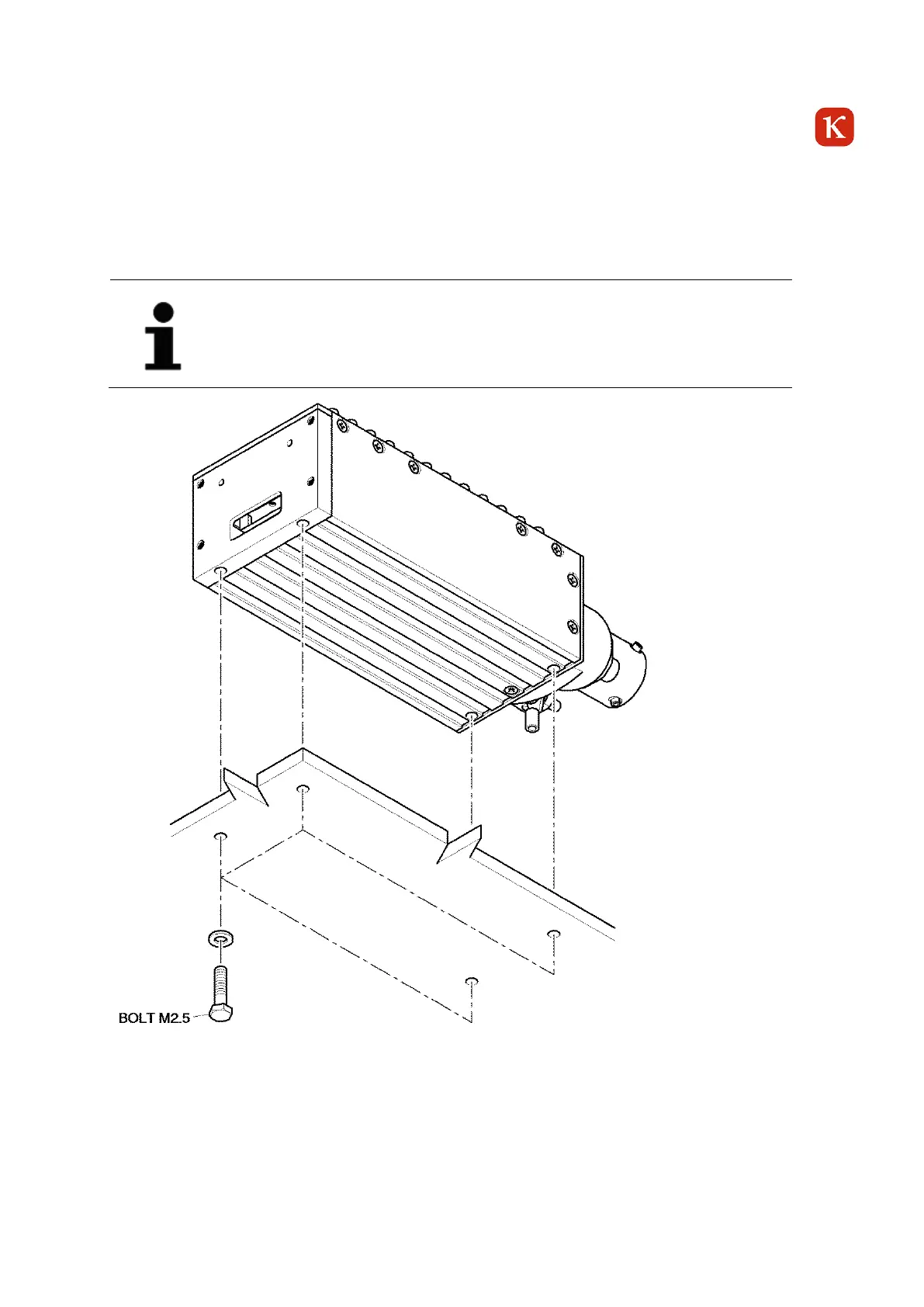

Figure 5-1 CEU Installation - Example
