Dimensions
The cameras have the following dimensions, refer to Figure 4-10 and Figure 4-11 below.

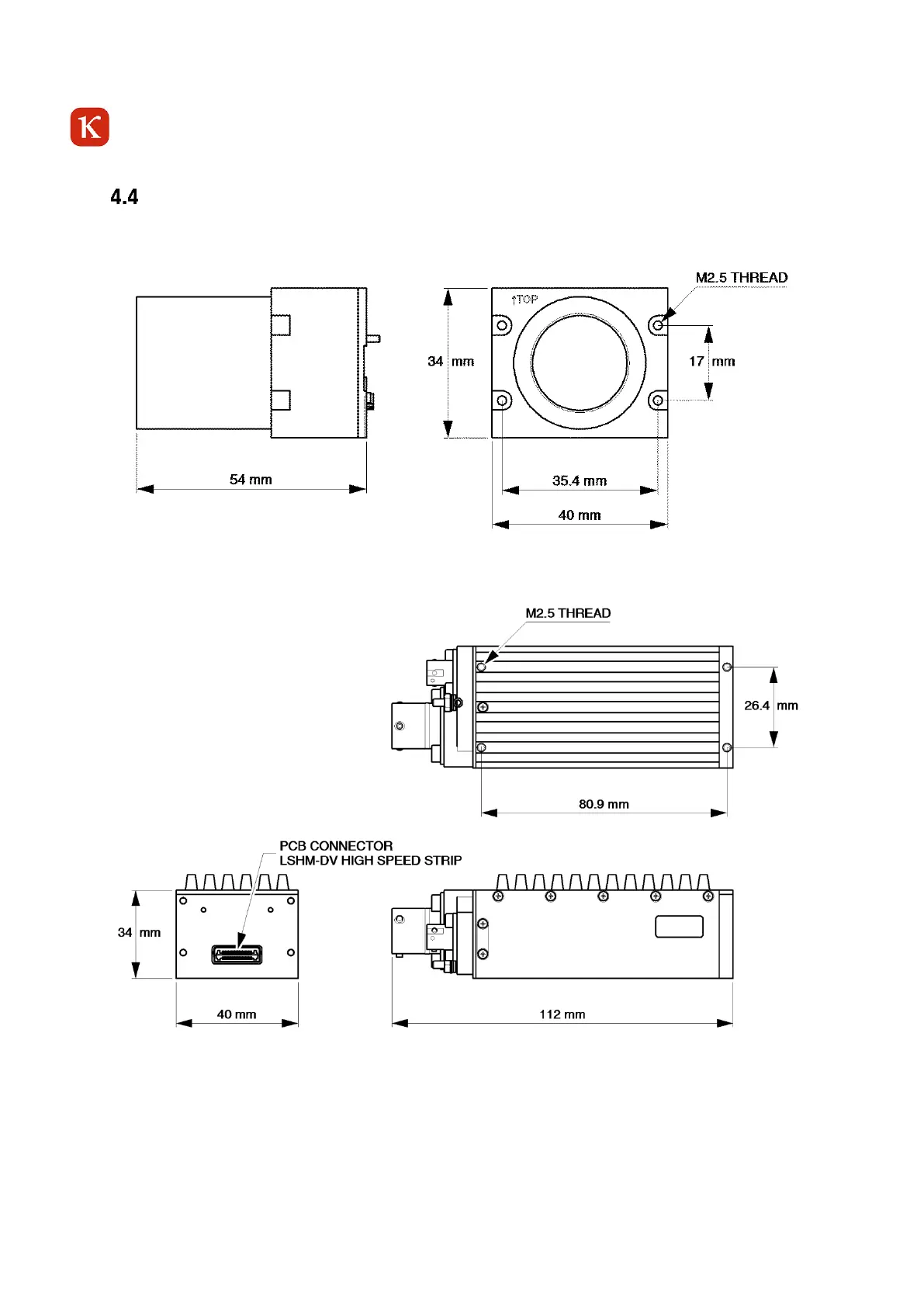

Figure 4-10 Camera Sensor Unit (P/N 370-0413) – Dimensions
Figure 4-11 Camera Electronic Unit – Dimensions (P/N 962-0102)
