762.885 Z05 2012 coolcept_fleX, coolcept³_fleX 11

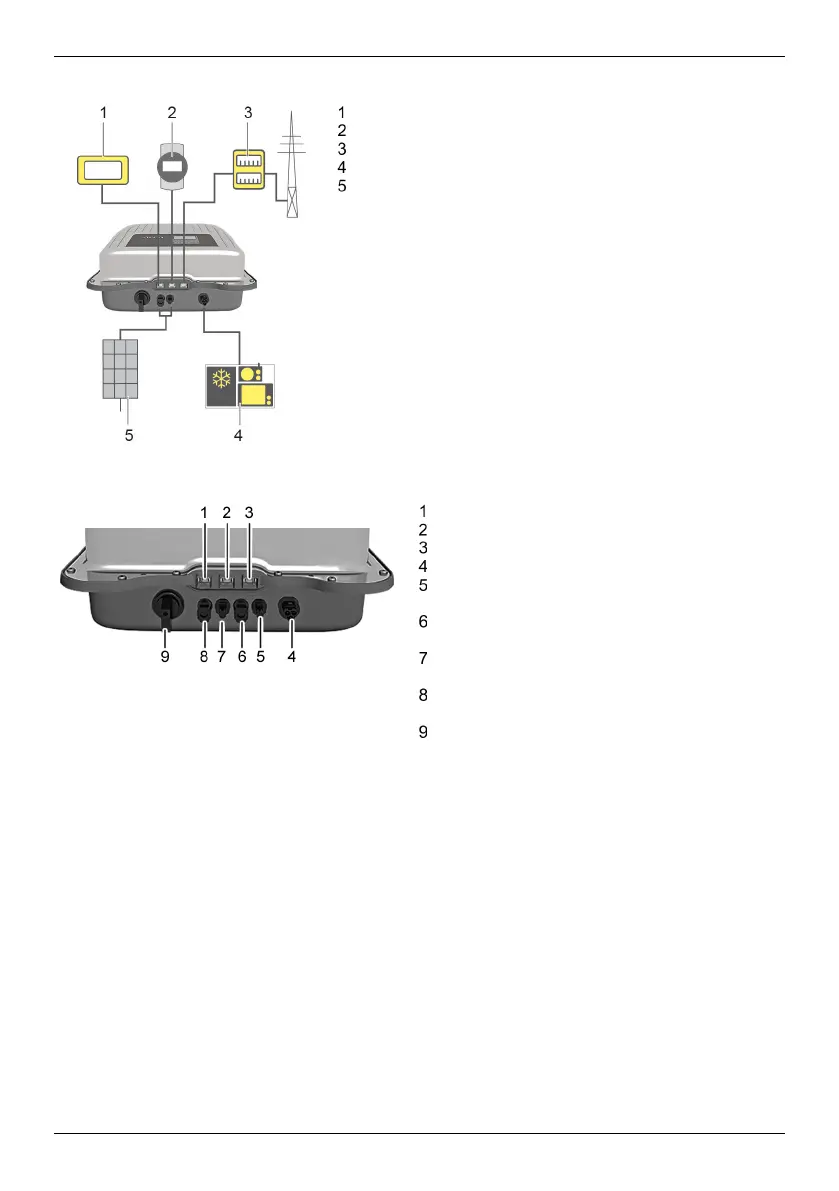

4.3 Exemplary connection
Connection of evaluation system
Data logger / other inverters
Connection of energy meter at the mains connection
Mains connection
PV generator (2 ea. in the case of StecaGrid 3011_2,
3611_2, 4611_2, 5011_2)
4.4 Connections, communication, and DC/AC
LAN (RJ45 socket)
COM1 (RJ45 socket)
COM2 (RJ45 socket)
AC connection
DC connection, '-' terminal* (DC input, MPP
tracker 2)
DC connection, '+' terminal* (DC input, MPP
tracker 2)
DC connection, '-' terminal (DC input, MPP
tracker 1)
DC connection, '+' terminal (DC input, MPP
tracker 1)
DC disconnector (interrupts the plus and minus
inputs simultaneously)
* only in case of StecaGrid 3011_2, 3611_2, 4611_2 and 5011_2
