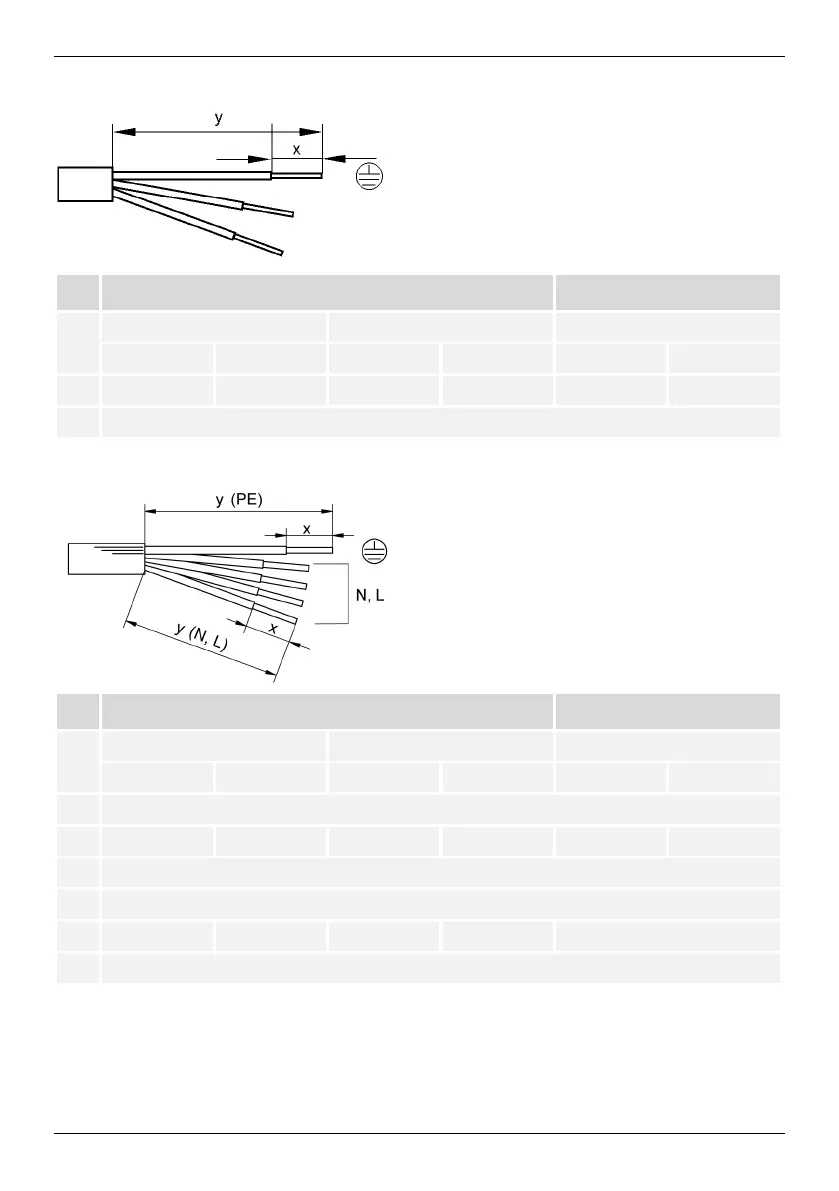

5.3.3.1 Preparing cable (3-pin cable)

Single connection

Double connection

Ø 6…14 Ø 13…18 Ø 6…14

PE N, L PE N, L PE N, L

y 30 25 42 37 45 40

x 8

5.3.3.2 Preparing cable (5-pin cable)

Single connection

Double connection

Ø 6…10 / 10…14

Ø 13…18

Ø 6…10 / 10…14

PE N, L PE N, L PE N, L

Screw-type connection

y 30 25 55 50 45 40

x 8

Crimp connection

y 42 37 49 44

x 7.0 + 1
