6 Dismounting the inverter
The safety instruction from chapter 5 apply.
DANGER
Voltage can be present at the DC-connection for up to 10 minutes after
switching off the DC circuit breaker.
There is a risk of death by electrocution.
►
Wait 10 minutes after switching off the DC disconnector.
DANGER
The PV generator carries voltage when there is solar radiation.
There is a risk of death by electrocution.
►
Only have specialists carry out any work on the DC connection.

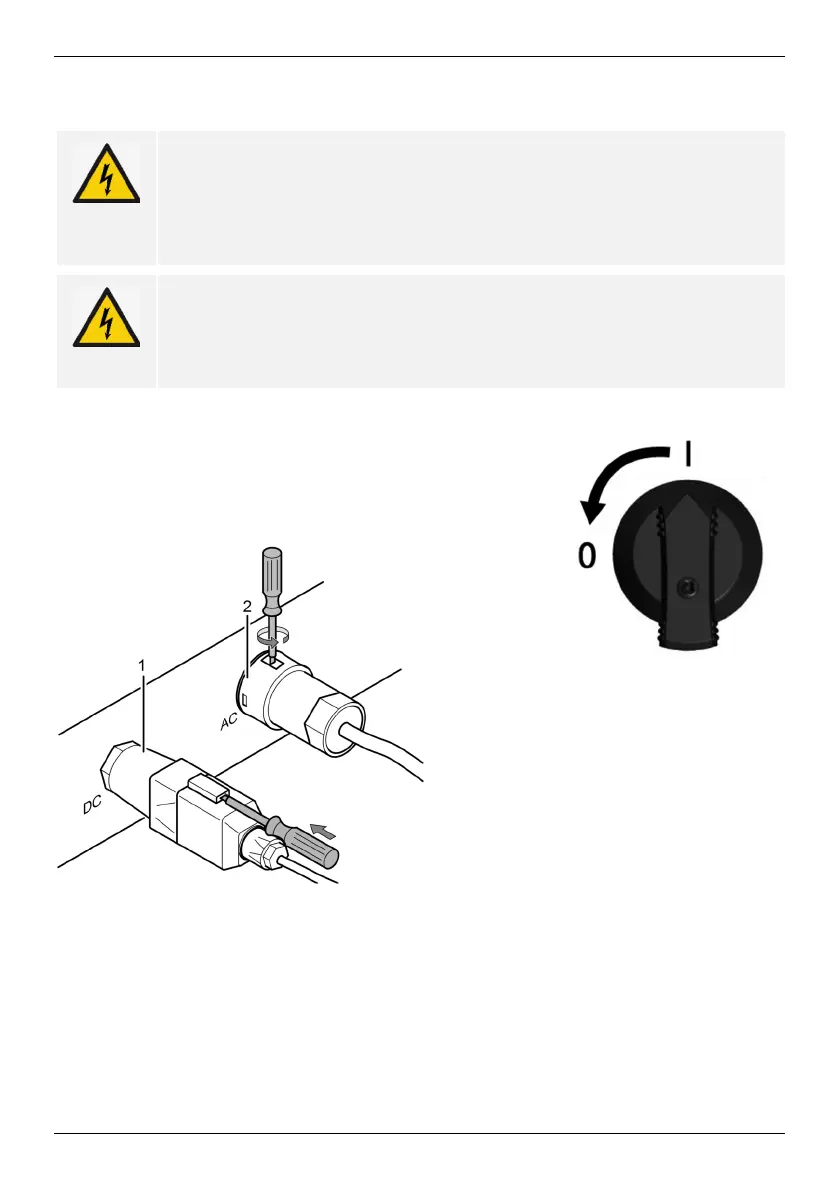

6.1 Switching AC and DC off
1. Turn DC disconnector on the inverter to position "0".
2. Switch the AC circuit breaker off.
3. Disconnect DC connection (1) from inverter: insert screwdriver into unlocking opening,
keep screwdriver inserted, and pull plug out.
4. Disconnect AC plug (2) from inverter: slightly press in and rotate the locking hook with
a suitable tool, e.g. a screwdriver, and pull AC plug out.
5. Ensure that none of the AC plug poles carries voltage with the help of a suitable volt-
age tester (do no use a phase testing probe).
