762.885 Z05 2012 coolcept_fleX, coolcept³_fleX 23

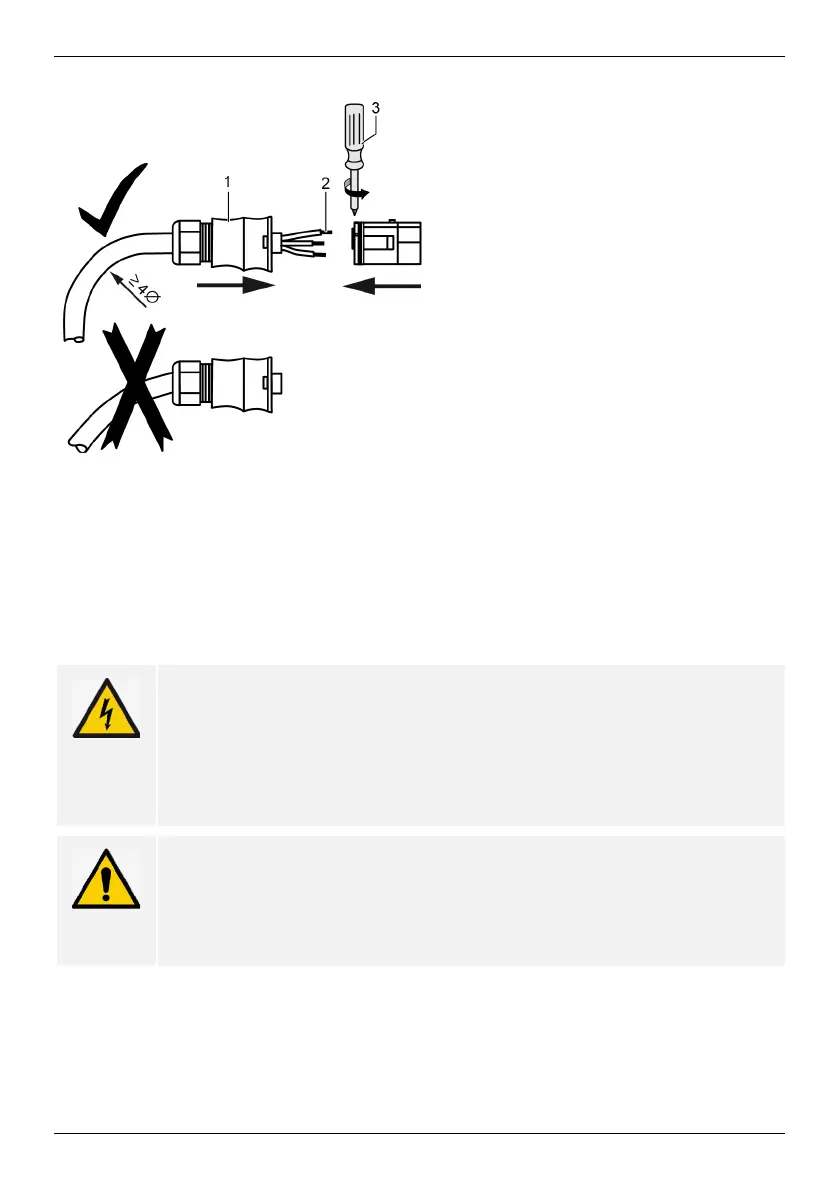

Assembly instruction for AC plug (applies to 3-pin and 5-pin plugs)
1. Guide cable through the plug housing. Slide plug housing (1) onto the cable.
2. Introduce wire ends (2) into the plug. Ensure that the bending radius of the cables is
large enough (at least 4 times the cable diameter).
3. Using a screwdriver (Pozidriv PZ1) (3), secure wire ends with clamping screws. Tight-
ening torque for 3-pin plug: 0.8 to 1 Nm. Tightening torque for 5-pin plug: 0.5 to
0.7 Nm. Ensure that the clamping connection holds.
4. Slide plug housing onto the plug and tighten until a click sound is heard.
5.4 Preparing DC connection
DANGER
Voltage
There is a risk of death by electrocution.
►
Follow the safety instructions and warning notices in chapter 5.1.
►
Use the SUNCLIX plug connectors (DC plugs) included in the scope of de-
livery to ensure the specified degree of protection.
If the DC plugs are not connected correctly to the DC cable, there is a risk of
short circuit. The inverter and modules may be damaged.
►
Connect counterparts to the DC connections to the DC cable ensuring cor-
rect polarity.
