Operation
Chapter Section PageDate

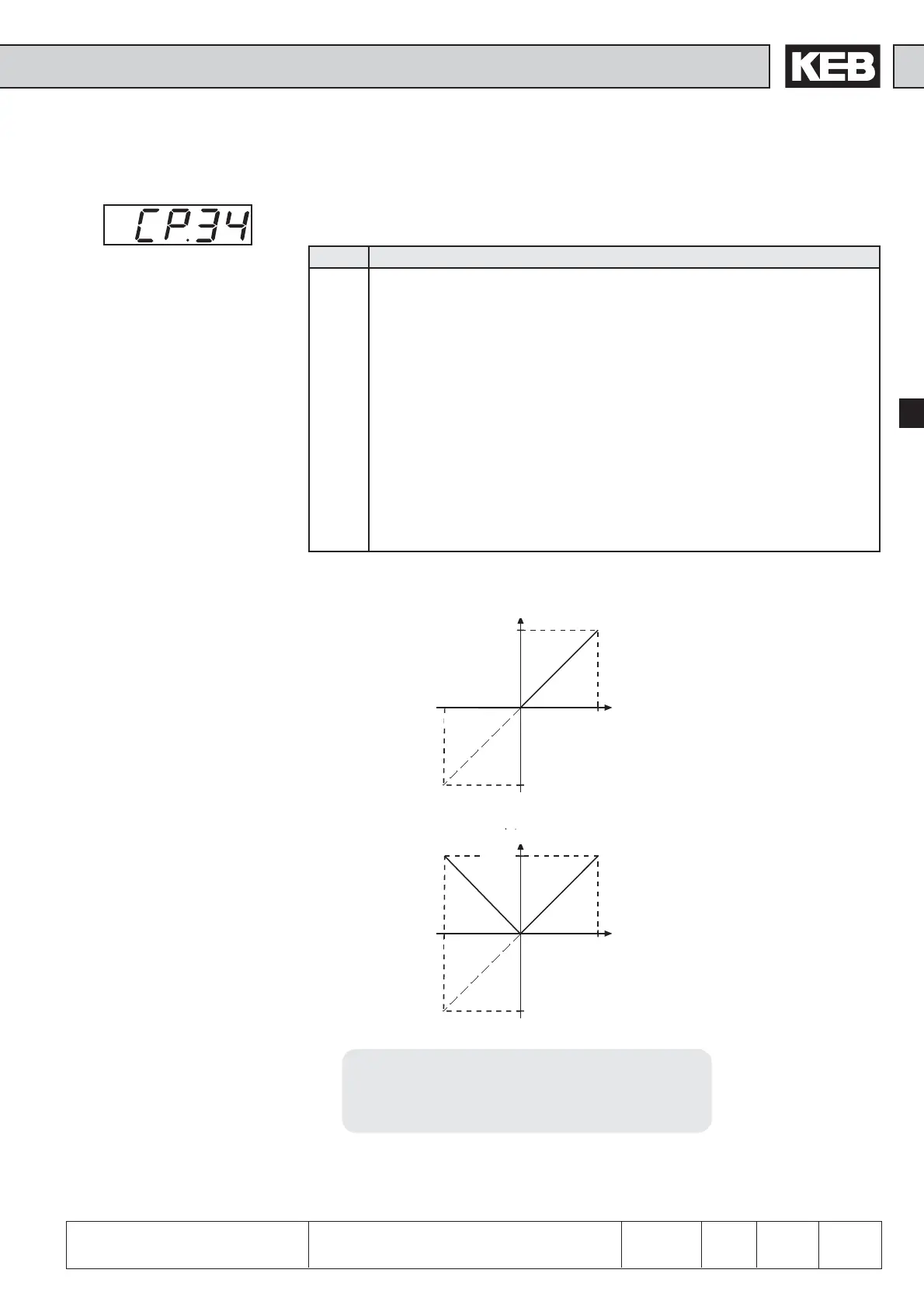

The source rotation setting and the mode of evaluating the rotation setting is defined
with this parameter (Enter-Parameter). With CP.34 one does not modify the rotation
source of the fixed frequencies (CP.19... 21).
Value Function
0/1 Only application mode
2 Setting by way of terminal strip forward/reverse; negative set values are
set to zero (factory setting)
3 Setting by way of terminal strip forward/reverse; the signs of the setpoint
values have no effect on the direction of rotation
4 Setting by way of terminal strip run/stop (X2A.14) and forward/reverse
(X2A.15); negative values are set to zero
5 Setting by way of terminal strip run/stop (X2A.14) and forward/reverse;
the signs of the setpoint values have no effect on the direction of rotation
6 Set value dependent, positive value - clockwise rotation; negative value-
counterclockwise rotation; with set value "0" it is switched into status
"Low speed" (LS)
7 Set value dependent, positive value - clockwise rotation; clockwise
rotation is indicated
8/9 Only application mode
Source of rotation direction
Set value
0-limited
(Value 2 and 4)
Set value
absolute
(Value 3 and 5)
Adjustment range: 0...9
Resolution: 1
Factory setting: 2
Note: Enter-Parameter
10V
100%
-100%
100%
-100%
extern
-10V
intern
internal
external
10V
100%
-100%
100%
-100%
extern
-10V
intern
internal
external
