GB - 19
Control circuit

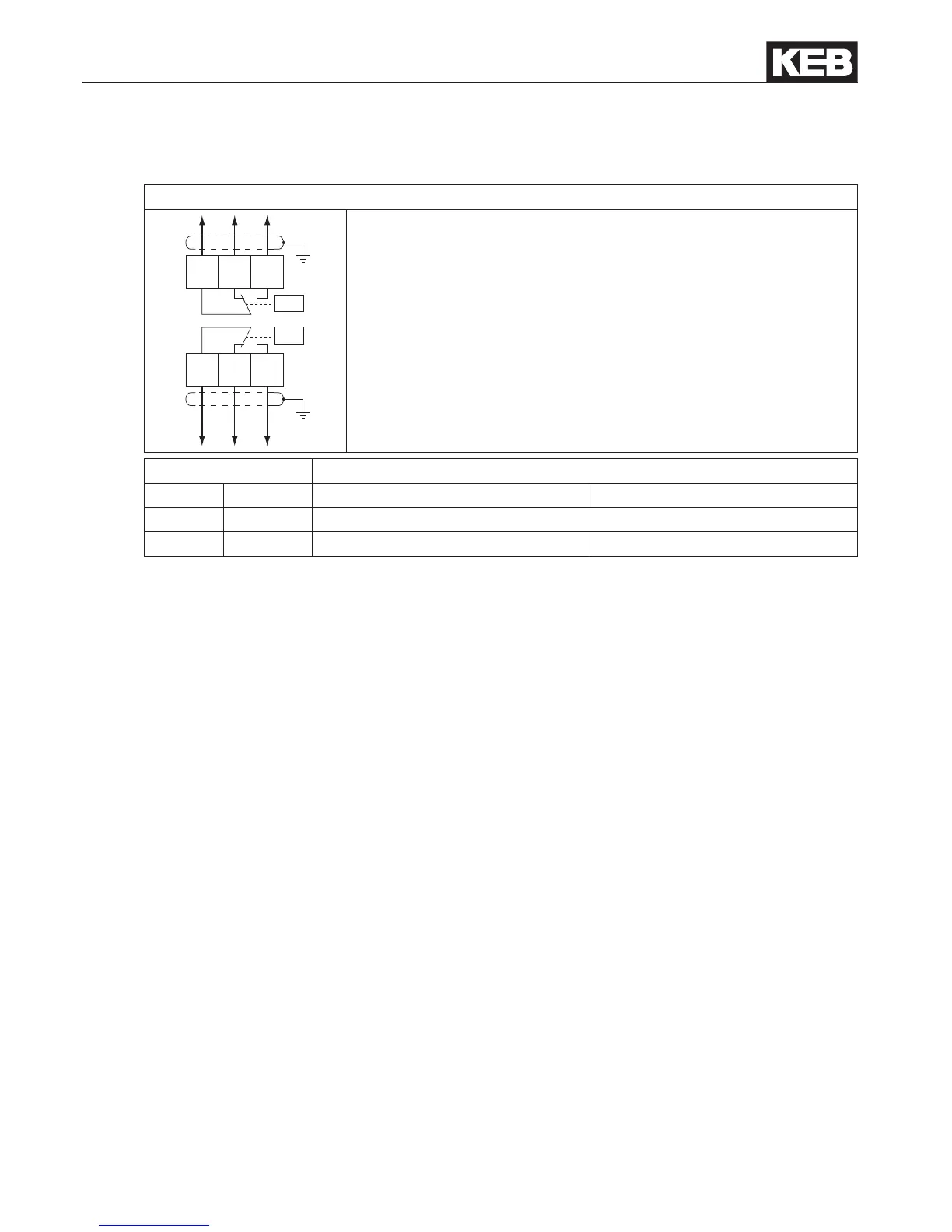

2.1.5.7 Connection of the relay outputs
Connection of the relay outputs
262830
252729
R2
R1
Specication:
U = max. 30 Vdc
I = 0.01…1 A
Ohmic load
Output Factory setting of the relay outputs
Name PIN open-loop operation closed-loop operation
R1 26/28/30 Fault relay
R2 25/27/29 Frequency-dependent switch Run signal
