Installation and connection
ServoOne User Manual SERCOS II and III
ID no.: 1108.26B.3-00 Date: 04/2020
Installation and connection
4 Installation and connection
4.1 SERCOS II
4.1.1 Hardware SERCOS II

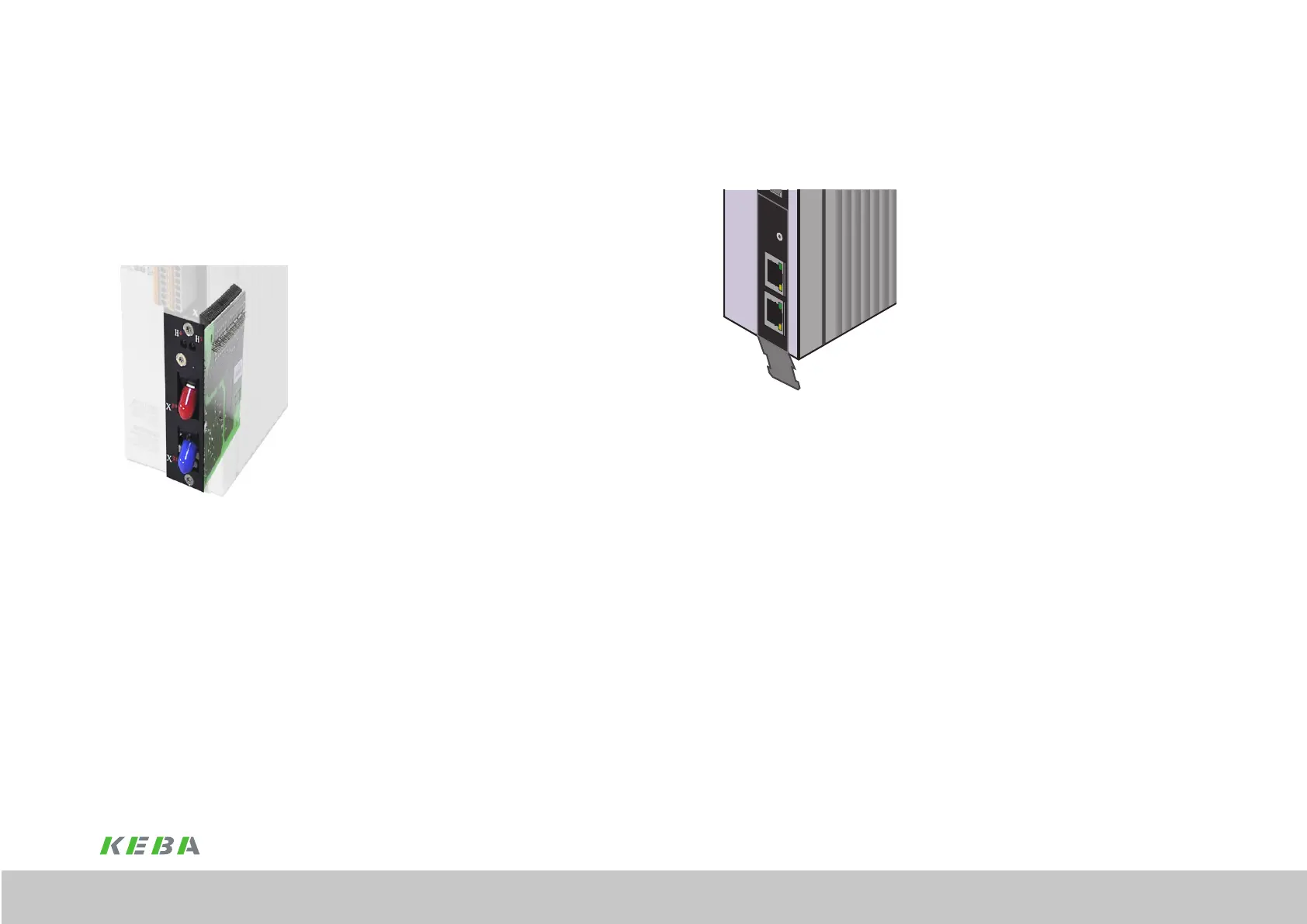

Figure 4.1 KEBA communication module SERCOS for ServoOne
The KEBA communication module Sercos for the ServoOne is designed as a
SERCOSII interface with plastic optical bre cable (POF) or hard clad silica cable (HCS)
with F-SMA connectors. Currently there exist two hardware versions; in future only
the version described in 2.2 will be manufactured. Hardware and software have, as
far as possible, been developed taking into account DIN/EN61491. The basis for the
SERCOSII implementation in the ServoOne is the document Specication SERCOS
Interface
(rev. 2.4 dated Feb. 2005).
Power is supplied to the communication module via the ServoOne Baud rates of 2, 4, 8
and 16Mbit/s are possible; the baud rate is detected automatically by the module. It is
therefore not necessary to set the baud rate.
4.2 SERCOS III
4.2.1 Hardware SERCOS III
Figure 4.2
ACHTUNG
WARNING
Kondensatorenent-
ladezeit > 3 min.
Betriebsanleitung
beachten!
Capacitor discharge
time > 3 min.
Pay attention to the
operation manual!
x
15
x
16
h
1
KEBA communication module SERCOS III for ServoOne
Power is supplied to the communication module via the ServoOne.The communication
module SERCOS III for the ServoOne is designed as an interface with two RJ45
sockets and as such permits a ring or line structure.
Hardware and software have, as far as possible, been developed taking into account
DIN/EN61491. The basis for the SERCOSIII implementation in the ServoOne is the
specication V1.1.1 from SERCOS International.
