26
Parameter conguration
ServoOne User Manual SERCOS II and III
ID no.: 1108.26B.3-00 Date: 04/2020
Parameter conguration
6.3.1 Torque control
In this operation mode a torque reference value is specied by the master (S-0-0080).
To protect against overspeed, on reaching the maximum speed a speed controller is
switched on that limits the speed to the maximum value set in the parameters.
Figure 6.1
Torque controlled motor
S-0-0080
S-0-0081
S-0-0084
P 0329
P 0330
P 0331
P 0332
P 0460

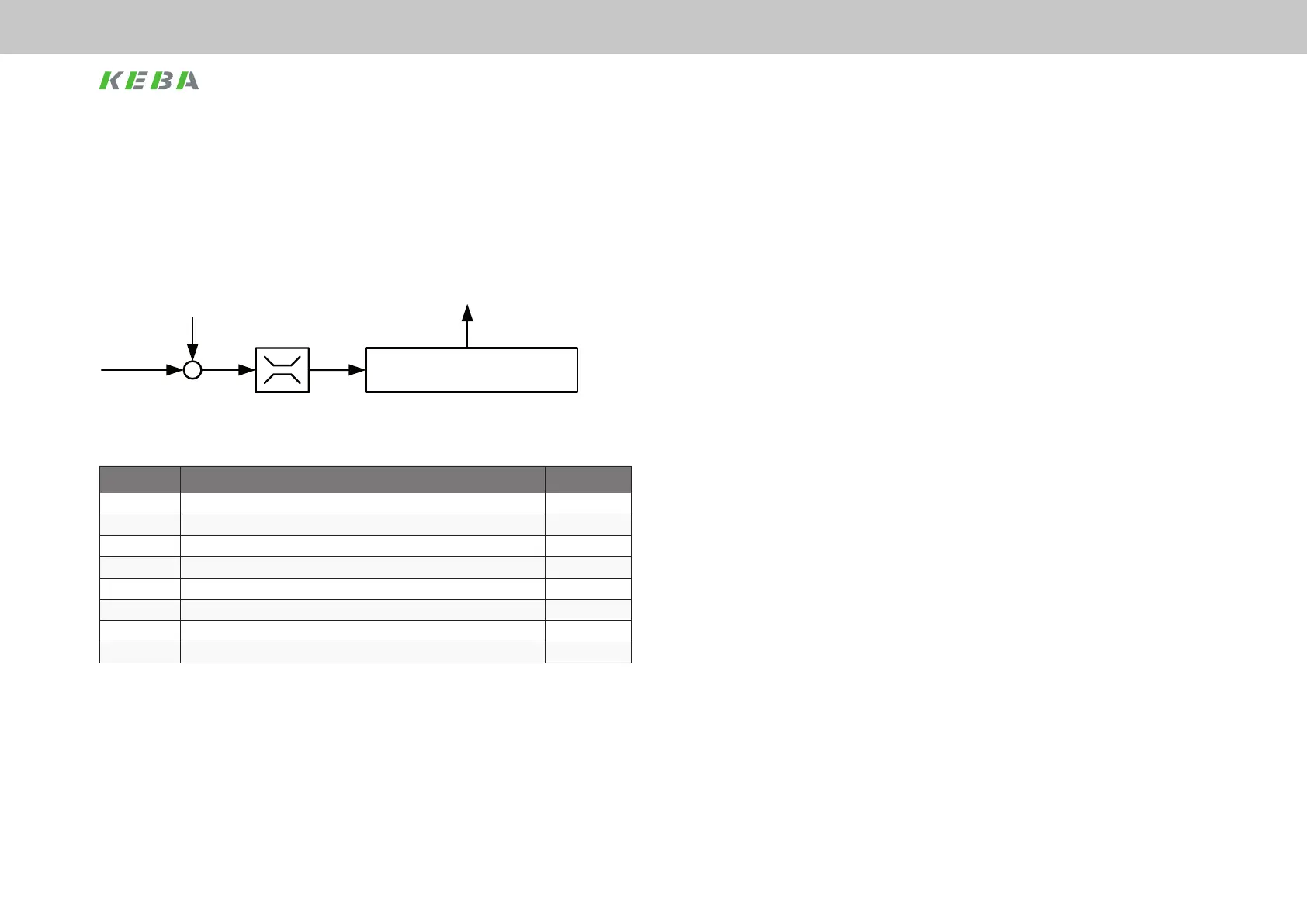

Simplied block diagram of the torque control
Number Description Unit
S-0-0080 Torque reference value TORQ
S-0-0081 Additive torque reference value TORQ
S-0-0084 Torque actual value TORQ
P 0329 Absolute torque limit (reference variable: motor nominal torque) %
P 0330 Negative torque limit (reference variable: motor nominal torque) %
P 0331 Positive torque limit (reference variable: motor nominal torque) %
P 0332 Online torque limit (reference variable: motor nominal torque) %
P 0460 Motor nominal torque Nm
Table 6.3 Torque control parameters
The following applies: Tmin_neg = MIN(P 0332, P 330) * P 0329 * P 0460
Tmin_pos = MIN(P 0332, P 331) * P 0329 * P 0460
