Keithley 2110-100 User Manual

Model 2110
5½ Digit Multimeter Reference Manual Section 3: Basic
DMM operation
2110-901-01 Rev. C/August 2013 3-7
Connections for DC and AC current measurements
The maximum input on the 3 A input terminals is 3 A, 250 V. The maximum input on the 10 A input
terminals is 10 A. Exceeding these input levels will damage the current fuses.

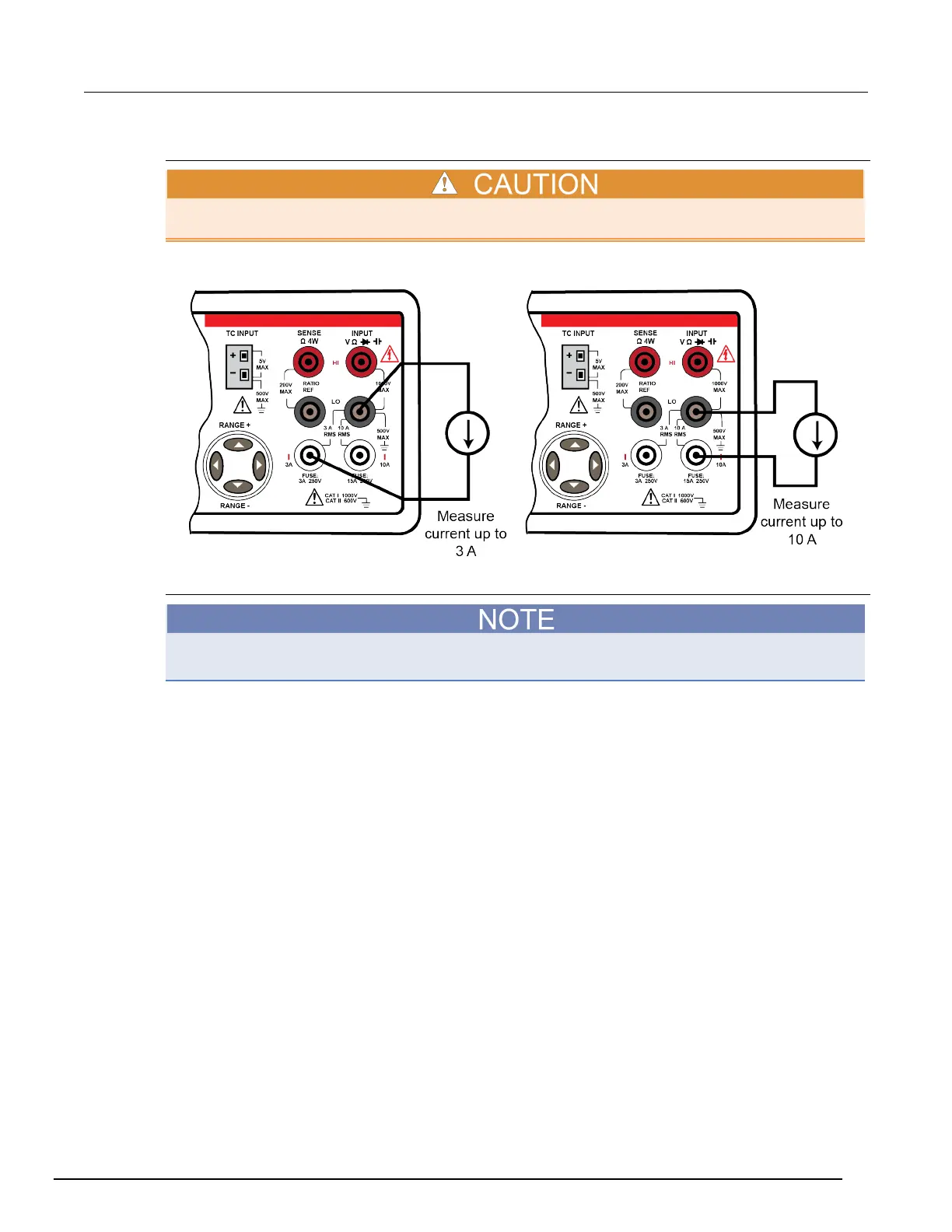

Figure 18: Connections for DCI and ACI
Remote operation
Commands that use the <n> parameter can use the MINimum and MAXimum name parameters. MIN
selects the minimum value and MAX selects the maximum value.
Use the following commands to select the function (DCI or ACI), set a measure range, and perform a
measurement:
FUNCtion "CURRent[:DC]" Select the DCI function
FUNCtion "CURRent:AC" Select the ACI function
CURRent[:DC]:RANGe <n> Set the DCI range
CURRent:AC:RANGe <n> Set the ACI range
<n> = -10 to 10 Expected DCI reading
= 0 to 10 Expected ACI reading
CURRent[:DC]:RANGe:AUTO <b> Enable or disable autorange for DCI
CURRent:AC:RANGe:AUTO <b> Enable or disable autorange for ACI
<b> = 0 or OFF Disable autorange
= 1 or ON Enable autorange
READ? Perform the measurement and acquire reading
