Keithley 3730

Section
9: Series 3700 Module Schematics and Connections Series 3700 System Switch/Multimeter
User's Manual
9
-10 Document Number: 3700S-900-
01 Rev. A / August 2007
Schematics: Model 3720
The following figure provides a switching schematic for the Model 3720.

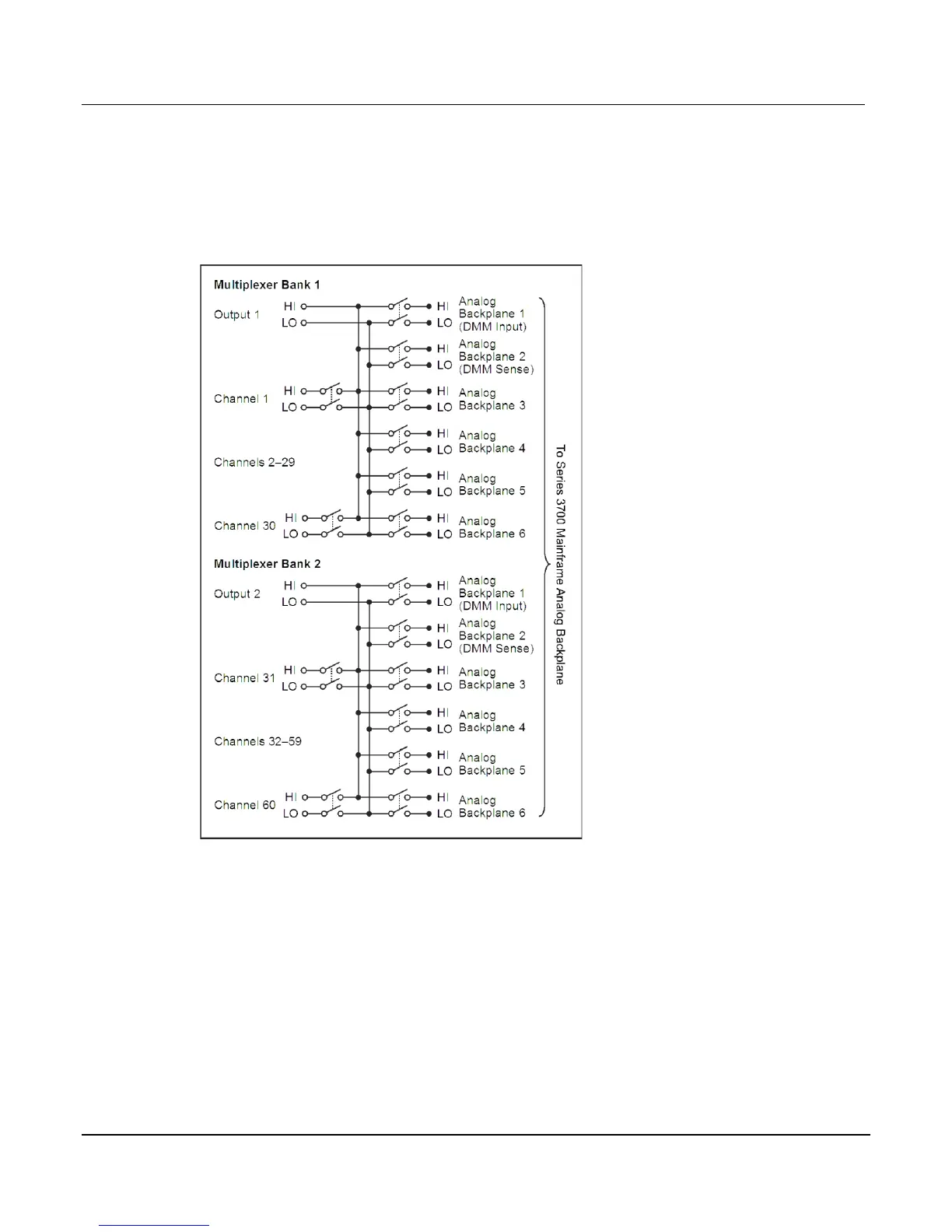

Figure 9-3: Schematic of the Model 3720
