Keithley 3730

Series 3700
System Switch/Multimeter User's Manual Section 9:
Series 3700 Module Schematics and Connections
Document Number: 3700S
-900-01 Rev. A / August 2007 9-
39
Connection information: Model 3730
Refer to the following figure for Model 3730 D-sub connection information.

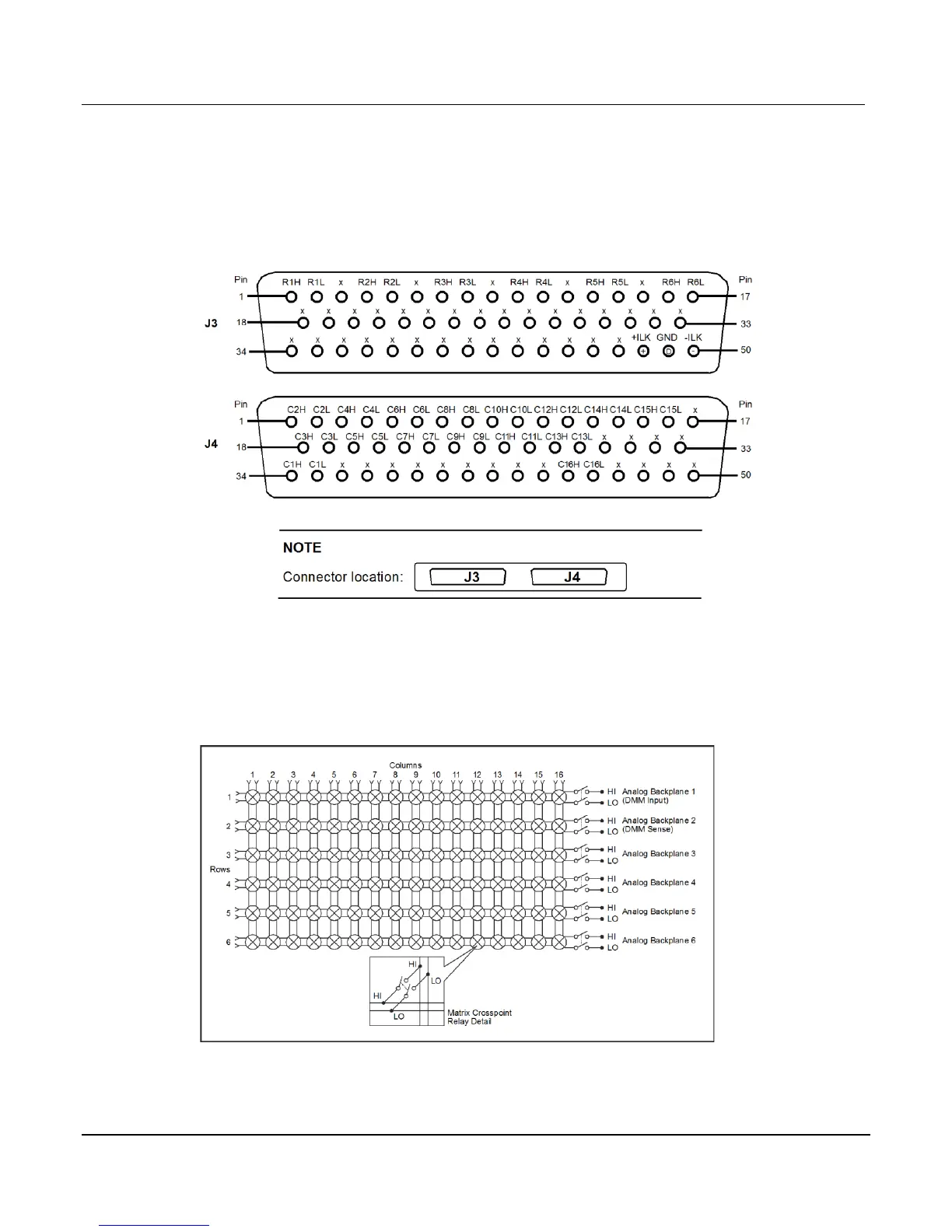

Figure 9-31: D-sub connection information for the Model 3730
Schematics: Model 3730
The following figure provides a switching schematic for the Model 3730.
Figure 9-32: Schematic of the Model 3730
