System Switch/Multimeter User's Manual Section 2:
-900-01 Rev. A / August 2007 2

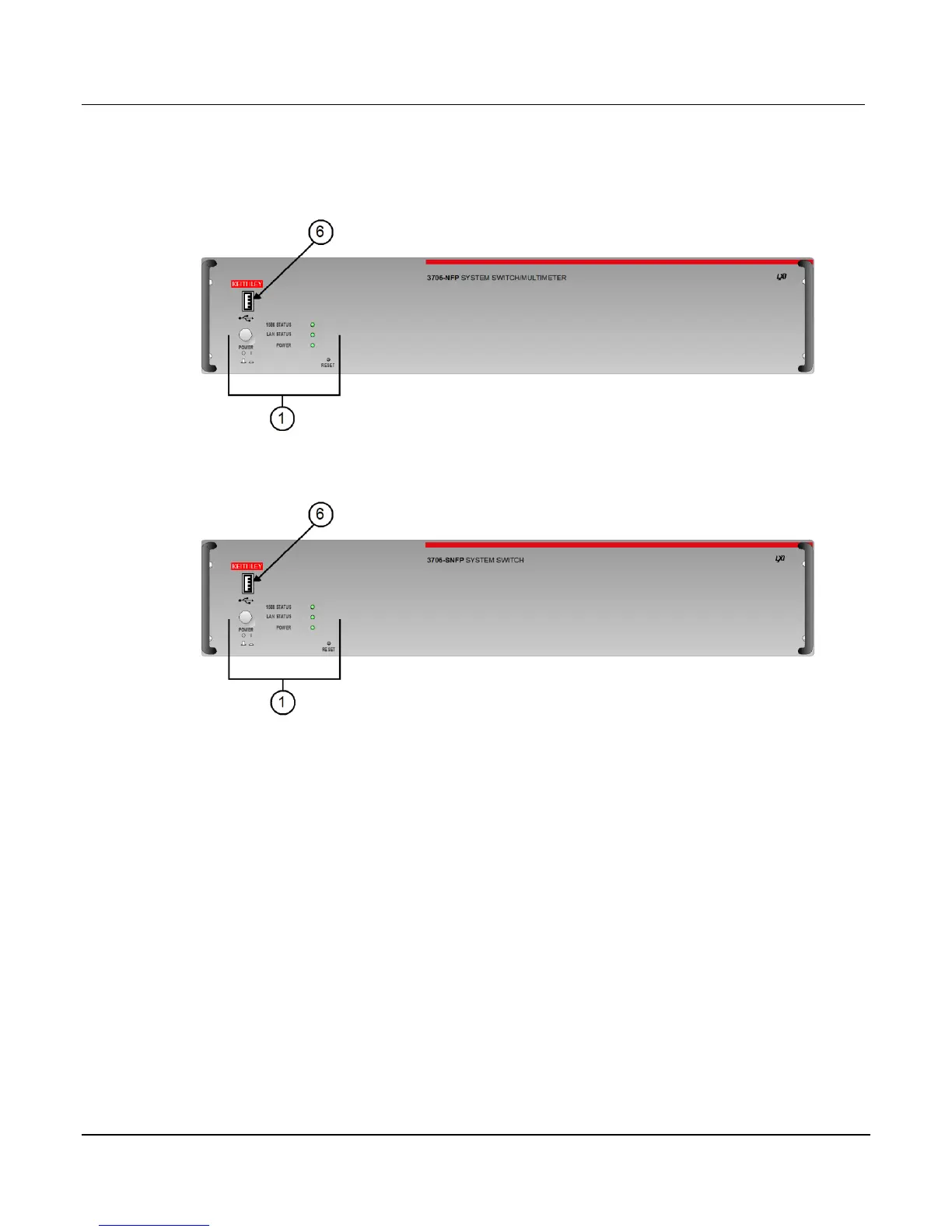

Figure 2-3: Model 3706-NFP System Switch/Multimeter
Figure 2-4: Model 3706-SNFP System Switch (no DMM)
Display
The Series 3700 display provides visual information on the present active channel. The display,
with the wheel, provides a means to change the active channel or channel ranges, as well as
access to view and edit the various menus and menu items.
See the following figure for an active channel example. The display has the 4W and AUTO
range annunciators lit (1). Also, the active channel is 1004 (Slot 1 Channel 004). The present
state of the channel is open, and it has two poles (3). The present state of the attributes for this
channel (4) are: 4W function set for AUTO range, dry-circuit ohms disabled (DRY-), offset
compensation off (OC-). Other attributes, such as NPLC, are available for this specific active
channel (1004) as indicated by arrow (5) being lit. These may be viewed by turning the wheel (6)
to scroll through the attribute list.
