Keithley 3730

Series 3700
System Switch/Multimeter User's Manual Section 9:
Series 3700 Module Schematics and Connections
Document Number: 3700S
-900-01 Rev. A / August 2007 9-
23
Connection information: Model 3722
Refer to the following figure for Model 3722 D-sub connection information.

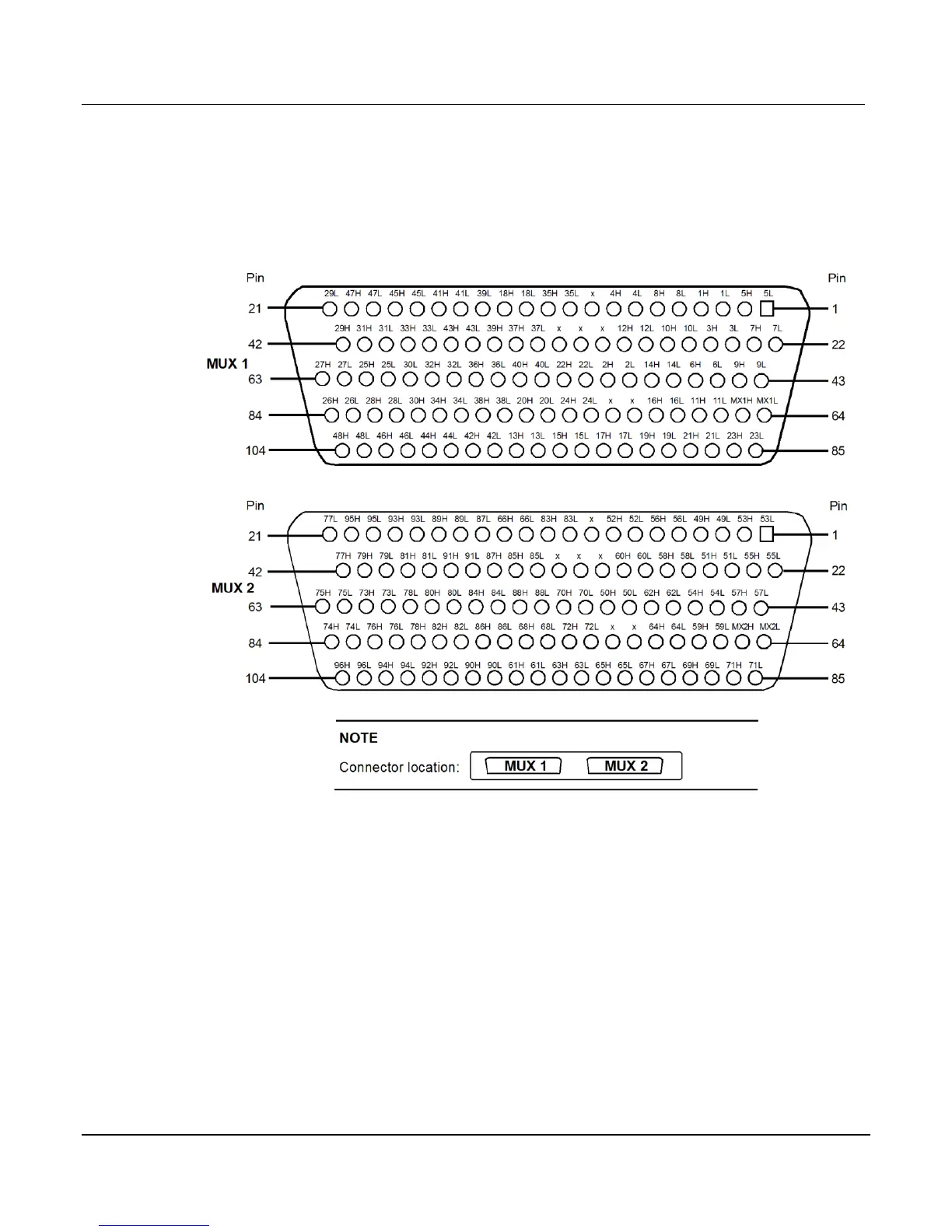

Figure 9-15: D-sub connection information the Model 3722
